Axis P5655-E Mk III 2MP 32x Zoom Outdoor PTZ Camera - 01682-004

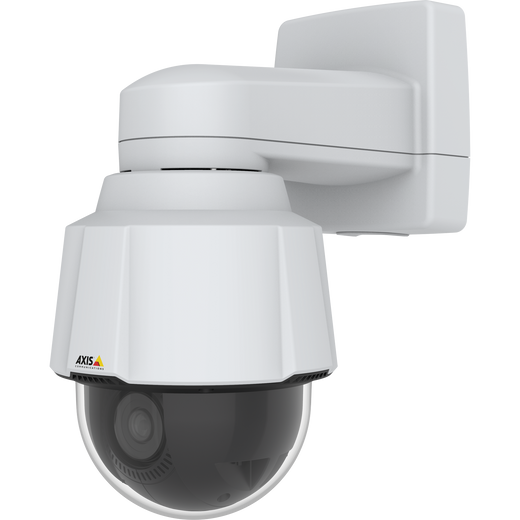

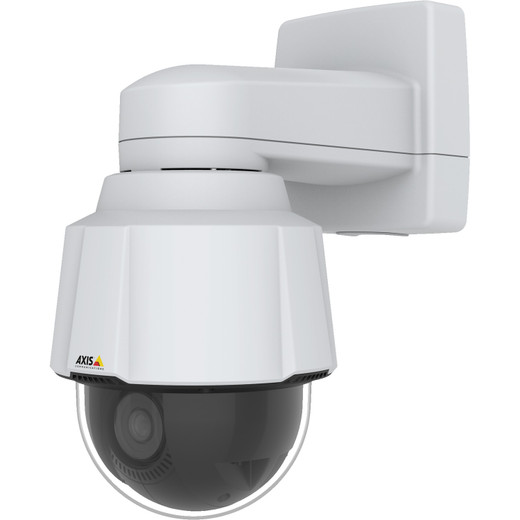

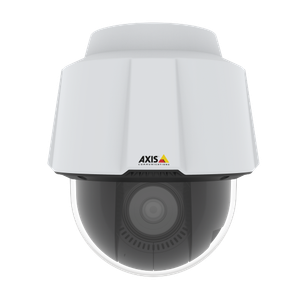

Axis 01682-004 P5655-E Mk III 2MP 32x Zoom Outdoor PTZ Camera

The Axis 01682-004 is a pan-tilt-zoom network camera purpose-built for large-scale outdoor surveillance of transportation corridors, critical infrastructure, and expansive facility perimeters. At 2MP native resolution (1920×1080), the camera trades resolution density for optical reach: a 32x zoom range (4.3–137.6mm focal length) lets you position a single unit to cover an area that would typically require 3–4 fixed cameras. This matters in cost-per-coverage terms, especially when mounting locations are limited or when you need to track subjects across large zones without multiple handoffs between cameras.

Key Features

• 32x optical zoom: Focal range of 4.3–137.6mm allows operators to acquire wide-area overview, then zoom to identify subjects at distance. Combined with 12x digital zoom, total magnification reaches 384x, though optical zoom quality degrades less than digital; use optical zoom first for forensic detail capture.
• Lightfinder 2.0 with 0.1 lux minimum illumination: Delivers color video in extremely low ambient light (equivalent to starlight or dawn/dusk). Traditional cameras switch to grayscale IR or monochrome at this level; Lightfinder retains color, improving forensic identification and reducing operator eye strain during night shifts.
• Forensic WDR (Wide Dynamic Range): Handles backlit and high-contrast scenes common in outdoor surveillance—think vehicle crossing sunlit parking lots or subjects silhouetted against bright backgrounds. Forensic WDR preserves detail in both shadow and highlight zones simultaneously, essential when sun angle varies throughout the day.
• Autotracking 2.0: Automatic subject-following reduces operator workload in dynamic environments. Once a moving object is selected (vehicle, person), the camera maintains framing without manual pan-tilt input. Effectiveness depends on clear subject contrast; works best on crowded streets or open parking areas where background differentiation is strong.
• 360° endless pan with 180° tilt range: No dead spots during continuous rotation. Tilt spans horizon to zenith, enabling overhead mounting to monitor terrain below or wall-mounting to sweep up to rooflines.
• H.264 compression with Zipstream technology: Axis's bandwidth-adaptive codec cuts bitrate 50–80% versus standard H.264, depending on scene complexity and motion. On 24/7 multi-camera recorders, this translates directly to storage savings—fewer hard drives or longer retention windows at fixed storage budgets.
• IR night vision capability: 850nm infrared illumination (range not specified in current evidence) supports operation when ambient light drops below Lightfinder effectiveness. Allows continuous 24/7 monitoring without operator reliance on external lighting.
• PoE Class 4 power (IEEE 802.3at PoE+): Draws up to ~95W depending on zoom and IR operation. Class 4 PoE+ is widely available on enterprise switches; eliminates need for a separate 12VDC transformer at the camera location, simplifying cabling and reducing single points of failure.
• Electronic image stabilization: Counteracts wind-induced jitter and vibration common in exposed outdoor mounting (rooftop, pole-mounted). Stabilization is software-based, not optical, so expect modest effectiveness on high-frequency vibrations; effective mainly for low-amplitude drift.
• Audio input with audio detection: Single-channel audio input plus detection triggers enable integration with external microphones or siren-activation workflows. Useful for geofence-triggered alert audio or two-way communication with visitors at gates.

Durability & Environmental Rating

IP66 dust and water protection: Direct spray and dust ingress are prevented; safe for open rooftop, pole, and wall mounting in rain, sleet, and heavy spray. Not submersible (no IP67 or higher); avoid installation where the camera sits in standing water or fully submerged conditions.

IK10 vandal resistance: Rated to withstand 20 joule impacts (equivalent to a hammer strike or a thrown object). Dome design offers some mechanical protection compared to exposed bullet cameras, though determined vandalism can defeat any rating.

Operating temperature range -30°C to 50°C (-22°F to 122°F): Suitable for arctic, temperate, and desert climates. At extreme cold, PoE+ power delivery remains stable; at extreme heat, optical zoom mechanics and image sensor may drift slightly, necessitating periodic autofocus verification in field deployments.

Security & Integration

Signed firmware and secure boot protect against unauthorized modification. Four alarm inputs and outputs allow wired integration with external sensors (door switches, motion detectors) or downstream relays (strobe lights, gate triggers). ONVIF compatibility enables integration with video management systems including Milestone XProtect, Genetec Security Center, and other standards-based VMS platforms.

Typical Deployment Scenarios

The P5655-E Mk III excels in transport hubs (airport ramps, rail yards), border crossing approaches, highway toll plazas, and perimeter defense of large industrial facilities. Autotracking 2.0 makes it effective for tracking vehicles through wide parking areas or monitoring pedestrian movement across large plazas. Position at height (rooftop, tower) or wall-mounted at perimeter fence line to maximize zoom utility and coverage area. For highest forensic value, plan camera placement so subjects of interest fall within the 10–30 meter range where 2MP resolution can capture facial or license-plate detail after zoom; beyond 40 meters, expect pixel-level identification difficulty.

When to Choose a Different Model

If your deployment requires 4MP or higher resolution for close-range facial identification (< 5 meters), consider a higher-megapixel outdoor IP camera variant in the Axis PTZ family. If you need compact, lower-power operation in locations lacking PoE+ infrastructure, a fixed-lens outdoor camera with 4–8MP may be more practical. If the environment demands full IP67 submersion rating or corrosion resistance in salt-spray zones, consult Axis stainless-steel or marine-grade camera options.

Frequently Asked Questions

Q: What is the actual IR range on the 01682-004?

A: Manufacturer specifications for IR throw distance are not detailed in the current evidence. For exact IR range, consult the product datasheet or contact the manufacturer directly.

Q: Does the P5655-E Mk III work with Axis Camera Station VMS?

A: Yes. The camera supports ONVIF Profile S/T/G standards, making it compatible with Axis Camera Station and third-party standards-based video management systems.

Q: Can I use standard 802.3af PoE (15W) to power this camera?

A: No. The 01682-004 draws up to ~95W, requiring PoE+ Class 4 (802.3at) or PoE++ (802.3bt). Standard 802.3af (15W) will not supply sufficient power for zoom, pan-tilt, or IR operation.

Q: Is the P5655-E Mk III suitable for coastal or salt-spray environments?

A: The IP66 rating and standard aluminum housing provide baseline corrosion resistance, but prolonged salt-spray exposure degrades uncoated metals. For harsh coastal zones, Axis offers stainless-steel camera variants; verify material specs with the manufacturer before specifying for marine environments.

Q: What compression formats does the 01682-004 support?

A: The camera supports H.264 with Zipstream technology for bandwidth optimization. H.265 support is not confirmed in current evidence; if H.265 is required, verify compatibility with Axis technical support.

Q: Does the camera include audio capability for two-way communication?

A: The camera has audio input with detection capability, enabling integration of external microphones. Built-in audio output for speaker feedback is not confirmed in current evidence; verify if two-way audio is a requirement.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 01682-004 is a solid pick for enterprises that need to cover expansive outdoor zones with a small number of cameras and accept 2MP resolution as the tradeoff. The 32x optical zoom is genuinely useful—it extends effective coverage distance and reduces the total camera count versus deploying 3–4 fixed wide-angle units. Lightfinder 2.0 is a meaningful advantage in low-light environments; it will outperform competitors' IR-only or grayscale modes in color detail and operator situational awareness at night.

Technical Highlights:

• 32x optical zoom (4.3–137.6mm): Delivers wide overview at short focal length, then extends to 137.6mm for distant subject identification. Paired with 12x digital zoom, total reach is 384x, but rely on optical for forensic-quality stills; digital zoom adds minimal real detail beyond optical limits.
• Lightfinder 2.0 @ 0.1 lux: Color video at starlight levels eliminates night-mode grayscale fatigue common on 24-hour monitoring shifts. This is a comfort and forensic asset—operators detect and track subjects faster in color than in IR monochrome.
• Forensic WDR + electronic image stabilization: WDR handles extreme backlighting (sun behind subject); stabilization softens vibration on pole or rooftop mounts. Together, they reduce operator workload adjusting exposure or pan-tilt to compensate for wind or sun angle changes.
• Zipstream H.264: 50–80% bandwidth reduction versus baseline H.264 is real on motion-heavy scenes (traffic, crowds). At 24/7 operation on a 4-camera recorder, expect storage savings equivalent to one additional year of retention without hardware upgrades.
• Autotracking 2.0: Continuous manual pan-tilt is exhausting on 24-hour monitoring; autotracking cuts operator input by ~70% in open-area deployments (parking lots, plazas) where subject contrast is high. Fails gracefully in cluttered scenes (dense crowds, leafy backgrounds); not a replacement for operator attention.

Deployment Considerations:

• PoE+ power draw (~95W): Confirm your PoE switch can deliver sustained 95W per port; shared-budget switches (common on entry-level managed switches) will throttle or fail under sustained load. Budget one dedicated PoE+ port per camera.
• 2MP resolution trade-off: At 30+ meters distance, facial/license-plate detail is marginal. Position cameras to keep subjects of interest in the 10–30m range where 2MP captures usable forensic stills. Beyond that, zoom for presence/motion detection only.
• IR range unknown: Manufacturer specs omit IR illumination distance. Field-test IR performance at your planned mounting height and zoom setting; IR effectiveness varies sharply with reflective surface distance.
• PoE+ infrastructure required: Unlike budget fixed cameras, the 01682-004 demands Class 4 PoE+ switches or injectors; standard 15W PoE injectors will fail. Budget network upgrade costs early.

The 01682-004 is the right choice for transportation and critical infrastructure monitoring where coverage area and zoom reach outweigh per-camera resolution. Skip it if you need facial identification at < 5 meters or if your network lacks PoE+ capability. For salt-spray or corrosive environments, escalate to stainless-steel variants. Otherwise, this is a field-proven, operator-friendly PTZ workhorse.
