Discontinued — No Longer Available New
This model has been discontinued by Axis. Shop current Axis products → or see the recommended alternatives below.

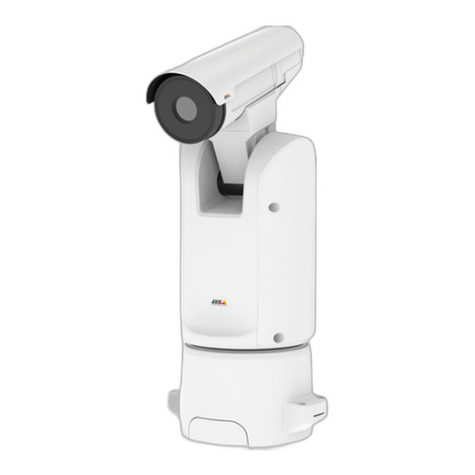

Axis Q8641-E 35mm Thermal PTZ Outdoor IP Camera
The Axis Q8641-E is a professional-grade thermal PTZ camera engineered for outdoor surveillance in extreme conditions where conventional optical cameras cannot perform. Delivering thermal imaging capabilities with a 35mm lens and 384x288 uncooled microbolometer sensor, this camera detects heat signatures in total darkness, through smoke, fog, and adverse weather—enabling 24/7 situational awareness without compromise.
Key Features
- Thermal imaging with uncooled microbolometer sensor (384x288 resolution, expandable to 768x576)
- 35mm thermal lens with 10.7° horizontal and 7.9° vertical field of view
- Pan-tilt-zoom capability: 360° endless pan, -90° to +45° tilt
- Exceptional detection range: vehicles detected at 3,153 meters (1.5px)
- Power over Ethernet (PoE) for simplified deployment
- IP66 weatherproof rating for harsh outdoor environments
- Operating temperature range: -40° to +60°C
- H.264 video compression with Zipstream technology
- Guard tour functionality with preset position automation
- 4 alarm inputs/outputs for integrated security workflows
Technical Specifications
The camera operates at 30fps maximum frame rate with intelligent H.264 compression, reducing bandwidth demands while maintaining image quality. Its robust IP66 enclosure withstands rain, dust, and extreme temperatures, making it suitable for perimeter protection, critical infrastructure monitoring, and remote surveillance in challenging terrain. ONVIF Profile G compliance ensures seamless integration with third-party network management systems and VMS platforms.
Applications
Ideal for border security, airport perimeter monitoring, industrial facility surveillance, power grid protection, and maritime operations. The extended detection range and thermal capability make this camera particularly valuable for detecting intrusions, monitoring livestock, and identifying equipment malfunctions in industrial settings where heat signatures reveal operational anomalies.
The Q8641-E represents the convergence of thermal imaging and PTZ mobility—a combination rarely found in outdoor surveillance. The 35mm lens and 3,153-meter vehicle detection range indicate this is designed for large-area monitoring where human observers cannot reach. The endless pan mechanism and preset guard tour functionality enable autonomous, programmatic coverage of expansive territories.
PoE power eliminates the need for dedicated electrical infrastructure, significantly reducing installation complexity and cost. The -40° to +60°C operating range positions this camera for arctic, desert, and tropical deployments. For organizations requiring thermal surveillance without the compromise of optical imaging, this camera delivers unmatched detection certainty in any environmental condition.
Download Product Datasheet (PDF)
