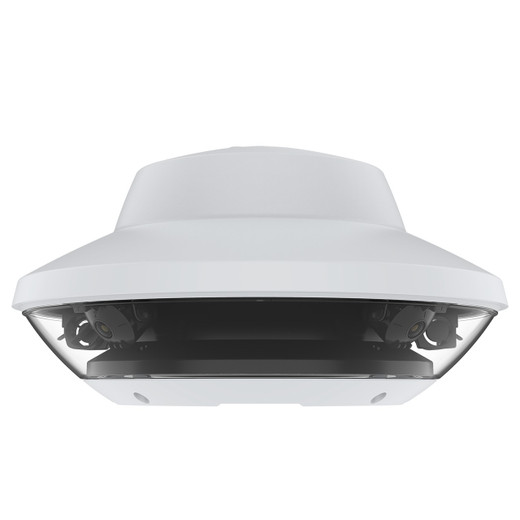

Axis Q6010-E 20MP Multi-Sensor 360° IP Camera
The Axis Q6010-E is a premium multi-sensor IP camera engineered for comprehensive outdoor surveillance. Featuring four 5MP CMOS sensors delivering 20MP total resolution, this camera provides exceptional detail and 360° horizontal coverage in a single compact unit. Built for demanding security applications including city surveillance, traffic monitoring, and large public spaces, the Q6010-E combines high resolution with intelligent features to maximize operational efficiency and minimize deployment complexity.
Key Features
- 20MP Total Resolution (4 × 5MP sensors) with 2592×1944 max resolution per sensor
- 360° Horizontal Field of View with 84° vertical coverage
- Full 360° panoramic monitoring without blind spots
- Exchangeable and tiltable lenses for customized coverage optimization
- Seamless PTZ integration with AXIS Q60-E cameras for enhanced tracking
- PoE Class 4 powered — single cable deployment simplifies installation
- Day/night operation with 0.4 lux minimum illumination in color mode
- Axis Zipstream technology with H.264 compression reduces bandwidth up to 50% without sacrificing quality
Technical Specifications
- Sensor Technology: Four 1/2.5" CMOS sensors
- Video Compression: H.264
- Frame Rate: 20 fps
- Wide Dynamic Range: Yes, for high-contrast environments
- Operating Temperature: -50°C to +50°C for extreme climate resilience
- Durability: IP66 weatherproof rating and IK10 vandal protection
- Audio Support: Integrated audio capability for two-way communication
- Focal Length: 2.8mm
- Active Tampering Detection: Alerts on lens obstruction or camera interference
Applications
Ideal for large-scale outdoor deployments requiring full perimeter coverage — city streets, traffic intersections, parking facilities, public squares, and critical infrastructure. The multi-sensor design eliminates surveillance gaps while reducing the number of cameras needed, lowering total cost of ownership. One-click PTZ control enables operators to zoom into regions of interest without losing situational awareness.
The Q6010-E represents Axis's answer to cost-effective wide-area surveillance. By consolidating four sensors into a single housing, organizations achieve panoramic coverage while maintaining the image detail necessary for forensic analysis. The 20MP aggregate output, combined with WDR and Zipstream compression, balances resolution requirements against network bandwidth — a critical consideration in bandwidth-constrained deployments.
PoE Class 4 power eliminates the need for external power infrastructure, reducing installation labor. The exchangeable lens design adds flexibility for different deployment scenarios, whether monitoring open plazas or narrow corridors. Integration with Q60-E PTZ cameras allows dynamic tracking — the multi-sensor provides wide context while the PTZ isolates and follows subjects.
Operating across -50°C to +50°C and IK10 vandal-rated construction, this camera withstands physical and environmental stress typical of public-space installations.
Download Product Datasheet (PDF)
