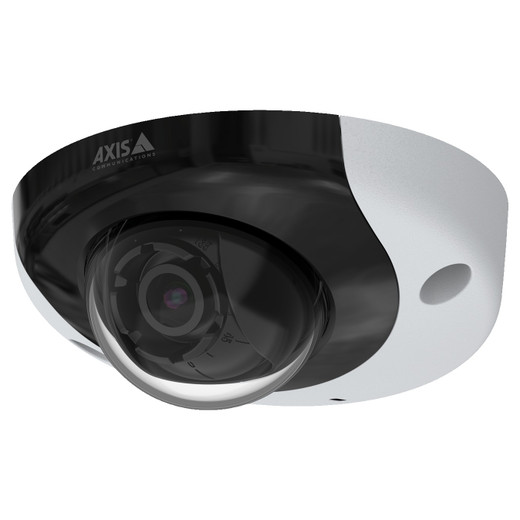

Axis 01919-001 2MP Onboard Vehicle IP Camera
The Axis 01919-001 (P3935-LR) is a hardened surveillance camera engineered specifically for transit and fleet environments. Purpose-built for buses, trains, emergency vehicles, and commercial fleets, this 2MP fixed camera delivers forensically useful video in conditions where standard cameras fail—overnight runs, interior cabins with mixed lighting, and high-vibration environments. The compact form factor and PoE power model simplify vehicle integration compared to legacy analog systems.
Key Features
- Lightfinder Technology: Captures clear images at 0.06 lux in full color mode—meaningful for early-morning or late-night operations where driver identification matters. Eliminates the need for supplemental cabin lighting or costly interior illumination upgrades.
- Forensic WDR (Wide Dynamic Range): Balances bright windshields against dark passenger areas simultaneously, preserving passenger facial detail and incident documentation even when sunlight floods one side of the cabin. Essential for compliance recordings under EN50155 or NFPA 130 standards.
- Built-in 940 nm Infrared Illumination: Invisible IR LEDs enable 24/7 operation without visible light pollution. Supports overnight surveillance in parked vehicles or when power is limited.
- IK10 Vandalism Rating: Metal casing withstands intentional strikes and accidental impacts—critical in public transit where cameras face frequent contact, thrown objects, and deliberate damage attempts.
- IP66 Environmental Sealing: Sealed against direct rain and dust ingress. Handles humid cabin environments, washing bay spray, and temperature cycling from -40°C to +55°C without condensation or seal failure.
- Integrated Microphone with Audio Detection: Captures two-way audio alongside video for incident reconstruction. Audio analytics trigger alerts on raised voices or glass breakage.
- H.264 Compression with Zipstream Support: Reduces bandwidth 25–75% depending on scene motion and complexity—meaningful when managing live streams and cloud backups across a fleet of 50+ vehicles. PoE Class 3 operation (under 13W) prevents power budget strain on vehicle switches.
- 2.8 mm Fixed Lens with 110° Horizontal FOV: Wide horizontal coverage minimizes blind spots in cabin monitoring while maintaining sufficient vertical detail for seat-level incidents.
Integration & Compatibility
The 01919-001 connects via single RJ45 Ethernet (10BASE-T/100BASE-TX PoE) with no separate 12VDC wiring required. Supports HTTPS encryption, IEEE 802.1X authentication, and signed firmware for secure deployments. One alarm input/output port integrates with vehicle management systems (door sensors, brake events, GPS triggers). Compatible with AXIS Camera Application Platform (ACAP) for custom application development. Local microSD storage support enables independent on-camera backup up to multi-terabyte capacity, decoupling from vehicle network reliability.
When to Choose a Different Model
If your fleet operates primarily in well-lit environments (daytime-only shuttle services, indoor parking facilities), a standard 2MP industrial camera without Lightfinder may reduce cost. If you need higher resolution for facial recognition across multiple seat rows, consider a higher-megapixel variant in the Axis vehicle surveillance family. For applications requiring pan-tilt-zoom capability, a separate PTZ line is required.
Frequently Asked Questions
Q: Does the 01919-001 support H.265 compression?
A: No, the P3935-LR uses H.264 codec with Zipstream intelligent bandwidth optimization. H.264 remains the industry standard for vehicle deployments due to broad VMS support and proven reliability in mobile networks.
Q: What is the minimum illumination level for color video?
A: Lightfinder captures color images at 0.06 lux, enabling passenger identification during pre-dawn or twilight operations without requiring cabin lights or supplemental IR.
Q: Is the 01919-001 NDAA Section 889 compliant?
A: Axis products manufactured in Taiwan and China may be subject to NDAA restrictions depending on contract requirements. Verify directly with your procurement team if NDAA compliance is mandatory.
Q: What is the IR illumination range in complete darkness?
A: The built-in 940 nm IR LEDs support interior cabin surveillance; range varies with reflectance but covers typical bus/train interiors. Not rated for long-range outdoor IR surveillance.
Q: Can I mount the 01919-001 on the exterior of a vehicle?
A: Yes. IP66 and IK10 ratings handle external mounting with exposure to rain, dust, and vibration. Confirm vibration isolation (rubber gaskets, shock mounts) during installation to prevent image blur.
Q: What warranty does the 01919-001 include?
A: Standard Axis warranty is 3 years from shipment. Extended service contracts and replacement guarantees are available; check with your specialty distributor.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01919-001 addresses a real gap in transportation surveillance. Lightfinder's 0.06 lux minimum illumination is the difference between usable passenger identification and grainy, forensically weak footage in overnight depot or early-morning shift operations. Pair that with Forensic WDR, and you've got a camera that handles the exact lighting scenario transit operators fear most: passengers silhouetted against a bright windshield while you need to see their faces.
Technical Highlights:
- Lightfinder + Forensic WDR: Combined low-light sensitivity and balanced exposure handling eliminate the need for supplemental cabin lighting or expensive camera dual-deployment strategies in mixed-light transit cabins.
- 940 nm Invisible IR + IK10 Metal Housing: 24/7 operation without visible light pollution; IK10 rating survives deliberate strikes and passenger contact in public transit—a requirement, not a nice-to-have.
- H.264 + Zipstream + PoE Class 3: Bandwidth optimization (25–75% reduction) and low power draw (under 13W) scale cleanly across fleet deployments of 30, 100, or 500+ vehicles without requiring network or power infrastructure upgrades.
Deployment Considerations:
- Fixed 2.8 mm lens is optimized for interior cabin monitoring; not suitable for long-distance exterior threat detection or recognition at platform/loading zone distances. Pair with a separate wide-angle exterior camera if perimeter coverage is required.
- Microphone pick-up is interior-focused; wind and road noise will be captured alongside audio analytics. Test audio trigger sensitivity in actual vehicle before rolling out to full fleet.
- Zipstream compression relies on adequate network bandwidth at the NVR or cloud endpoint. Vehicle networks with poor cellular or backhaul connectivity may not realize full bandwidth savings; plan for 2–4 Mbps per camera as a conservative baseline.
The 01919-001 is the right choice for transit operators and fleet managers who record continuously overnight, depend on facial identification for incident investigation, and cannot tolerate vandal damage or condensation failures. It trades zoom capability and long-range IR for ruggedness, low-light detail, and integration simplicity—exactly what a bus, train, or emergency vehicle needs.
