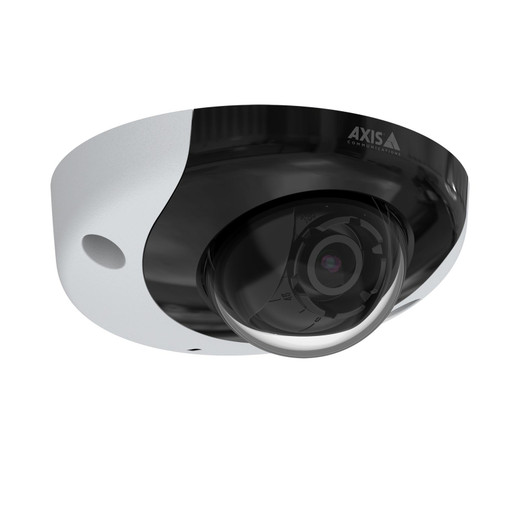

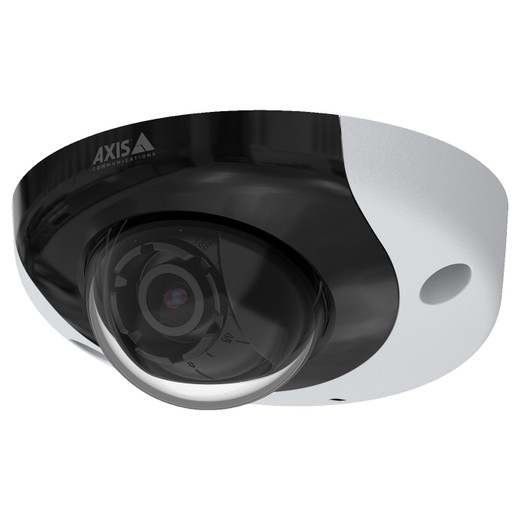

Axis 01932-021 P3935-LR M12 2MP Vehicle IP Camera 10-Pack
The Axis 01932-021 is a purpose-built onboard surveillance camera engineered for transportation and mobile fleet applications. This 2MP camera delivers 1920×1080 resolution with Lightfinder low-light technology and Forensic WDR, enabling usable color imagery in near-darkness and high-contrast scenes (windows opposite headlights, for example) without frame rate penalty. The 10-pack configuration spreads deployment costs across multiple vehicles while maintaining consistent image quality and compatibility. The M12 D-coded connector with rotatable coupling nut is purpose-designed for vibration-prone mobile environments where traditional RJ45 connections would loosen or fail.
Key Features
- Lightfinder Technology: Captures sharp, color images at 0.06 lux—roughly equivalent to starlight—eliminating the need for visible-light IR in passenger compartments. This preserves rider comfort and reduces maintenance compared to systems relying on visible IR LEDs.
- Forensic WDR (Wide Dynamic Range): Handles simultaneous bright and dark regions in a single frame. Critical in transit cabins where sunlight streams through windows while interior lighting is dim. Eliminates blown-out or muddy footage that would require multiple cameras per viewing angle.
- Built-in IR LEDs (850nm): Invisible infrared backfill for complete darkness scenarios—useful for night-time interior monitoring of parked vehicles or emergency response documentation. Does not blind or distract occupants.
- M12 D-Coded Connector: Rotatable coupling nut designed for vehicles. Rated for repeated connect/disconnect cycles without signal degradation. Eliminates the RJ45 connector creep that plagues standard Ethernet cameras on moving platforms.
- IP66/IK10 Durability Rating: IP66 means direct water spray and dust ingress are not a concern—relevant for vehicles washing, coastal environments, or heavy rain. IK10 (20-joule impact resistance) survives rough handling, vibration, and incidental contact without housing failure. This combination is essential for fleet environments.
- H.264 with Zipstream Compression: Intelligent bitrate adaptation reduces storage and bandwidth demands by roughly 50% compared to constant-bitrate H.264 in static scenes (parked vehicle, fixed interior views). On a 10-camera fleet running 24/7, this translates to tangible storage savings without losing detail in motion events.
- 2.8mm Fixed Lens, f/1.6 Aperture: 110° horizontal × 62° vertical coverage from a compact form factor. The f/1.6 aperture maximizes light gathering—essential for achieving the 0.06 lux performance. Fixed lens means no motors to fail in vibration; wide angle captures cabin entry points, aisles, and driver areas in a single shot.
- PoE Class 3 (IEEE 802.3af): Draws under 13W per camera. A standard 95W PoE switch powers all 10 cameras simultaneously with margin to spare. No per-camera power supplies, no separate conduit runs—single M12 cable combines power and data. Simplifies vehicle retrofit and reduces wiring failure points.
- Audio Input with Detection: Integrated microphone supports audio analytics (crowd noise, alarm detection) and two-way audio in compatible VMS platforms. Useful for driver-to-dispatch communication or incident correlation in noise-heavy environments.
- ACAP Compatibility: Supports Axis Camera Application Platform custom applications. Enables edge-side analytics (crowd counting, loitering detection) without a separate NVR, useful for fleet operators who want real-time alerts on onboard devices.
- Operating Range -40°C to +55°C: Handles cold climate (parked vehicles in winter) and heat-soaked cabs in summer. No thermal throttling or shutdown risk in typical transit duty cycles.
Integration & Compatibility
The 01932-021 integrates via standard ONVIF Profile S, enabling compatibility with major VMS platforms (Milestone XProtect, Genetec Security Center, Hanwha SmartVMS, and others). Supports HTTPS encryption and IEEE 802.1X network authentication—required for enterprise fleet deployments. Provides 1 alarm input and 1 alarm output for integration with external systems (door sensors, emergency buttons, speed governors). Firmware updates available through standard Axis channels; signed firmware ensures integrity in security-critical applications.
When to Choose a Different Model
If your fleet requires higher resolution (face identification at platform edges, license plate clarity beyond 15 feet), consider a 4MP or 5MP variant in the Axis onboard camera family. If you need wider coverage (long bus corridors), look for alternative focal lengths. If you require integrated storage, factor in a separate microSD card slot or onboard NVR. The 01932-021 is optimized for typical transit cabin surveillance—it is not a long-range perimeter camera.
Frequently Asked Questions
Q: Does the Axis 01932-021 support two-way audio?
A: Yes. The built-in microphone captures audio, and the camera supports audio output via a compatible VMS or audio interface module. This enables driver-to-dispatch or driver-to-cabin announcements in systems configured for duplex audio.
Q: What is the maximum PoE cable run from switch to camera?
A: Standard PoE specifications allow up to 100 meters (328 feet) of Cat5e or better cabling. At that distance, voltage drop may reduce available power; use Cat6 or active PoE extenders for runs exceeding 80 meters in harsh environments.
Q: Can the 01932-021 be mounted in orientations other than standard wall-mount?
A: Yes. The compact form factor and M12 connector allow mounting on vehicle interiors (ceiling, wall, pole) or exterior fixtures. Confirm structural vibration and thermal environment before finalizing mounting location.
Q: Does the IR LED output exceed safe levels for occupants?
A: No. The 850nm IR LEDs are invisible to the human eye and meet safety standards for visible light and thermal output. They do not cause eye strain or discomfort in enclosed cabins.
Q: What is the warranty on the 01932-021?
A: Axis cameras ship with a standard 3-year manufacturer warranty. Check with your distributor for extended warranty options and support plans specific to fleet deployments.
Q: Does the 01932-021 require a separate NVR?
A: No. The camera outputs RTSP video and integrates with any ONVIF-compatible VMS running on a stationary server or cloud platform. Small fleets may use PC-based VMS; large fleets typically integrate with enterprise NVR appliances for redundancy and local backup.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01932-021 addresses a real problem in vehicle surveillance: unpredictable lighting. Sunlight flooding through windows, shadows from overhead structures, and interior fluorescent fixtures create high-contrast scenes that blind standard cameras. The combination of Lightfinder (0.06 lux color sensitivity) and Forensic WDR solves this with a single lens. You get usable footage at 6 AM when sunlight is low-angle, at noon when cabin interiors are dark but windows are blown-out bright, and at midnight with IR alone. This eliminates the false economy of buying cheaper cameras only to lose evidentiary quality in real-world conditions.
Technical Highlights:
- 0.06 lux Color Sensitivity: Achievable at f/1.6 aperture without visible IR. In starlight or low-security-lighting scenarios, the 01932-021 captures usable color detail. Competing cameras at 0.5–1 lux require visible IR or produce monochrome frames—both problematic for fleet operators who need daytime-quality footage 24/7.
- M12 D-Coded Connector with Rotatable Coupling: Purpose-designed for vibration. Standard RJ45 connectors loosen in moving vehicles; the M12 threads tight and stays tight through hundreds of connection cycles. On a 10-camera fleet with depot maintenance, this eliminates connector-related outages.
- H.264 Zipstream Compression: Bitrate drops 40–60% in static scenes (parked vehicle, empty cabin) without quality loss. On 24/7 recording across 10 cameras, this cuts storage requirements in half compared to constant-bitrate H.264. Real cost impact on multi-year fleet deployments.
- PoE Class 3 Under 13W Per Camera: All 10 cameras on a single 95W PoE switch. No per-camera power supplies, no separate conduit. Vehicle retrofit is a single M12 cable run—power and data integrated. Reduces points of failure in harsh mobile environments.
Deployment Considerations:
- The 2.8mm fixed lens delivers 110° horizontal coverage—appropriate for cabin interiors and entry/exit areas. If you need longer hallway or platform coverage, this focal length will not suffice; you would need a wider-angle model or multiple cameras per vehicle.
- PoE Class 3 is standard 802.3af. If your fleet has long cable runs (>80 meters from depot switch to vehicle charging dock), plan for voltage drop or PoE+ injectors. M12 connector eliminates inline power issues but does not reduce distance limitations.
- Audio input is present but requires compatible VMS configuration. Not all on-premise VMS platforms support audio recording natively; verify your platform before designing audio-capture workflows.
The 01932-021 is purpose-built for transit operators (buses, coaches, trains) and fleet managers who need forensic-quality footage across dozens of vehicles without massive storage infrastructure. The 10-pack configuration is cost-effective and eliminates SKU fragmentation—consistency across your fleet means simplified support and training.
