Axis P1265 Mk II 2MP Pinhole Camera 10-Pack 02858-021

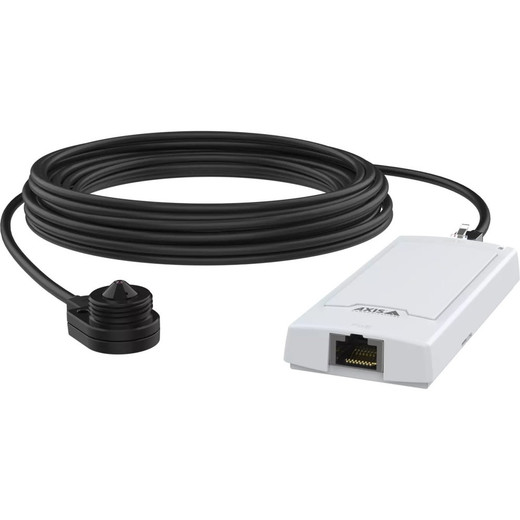

The Axis P1265 Mk II is a modular 2MP pinhole camera designed for covert indoor surveillance in spaces where traditional dome or turret housings cannot be concealed or where minimized visibility is mandatory. This 10-pack bundle delivers ten fully assembled units, each with an integrated AXIS FA1125 sensor module, forensic WDR processing, edge Deep Learning analytics, and an 8-meter detachable cable for flexible concealment in ceiling tiles, wall cavities, and other tight installations. At 1920×1080 (30 fps), the fixed 3.7mm F2.5 pinhole lens captures a 91° horizontal field of view, while integrated IR illumination (0.2m range) operates covertly without visible red or IR glow—essential for environments requiring undetectable night surveillance. H.265 compression shrinks bitrate 40-60% versus H.264, lowering storage costs and network overhead on multi-unit deployments.
Key Features
- 2MP (1920×1080) at 30 fps: 1080p resolution and frame rate sufficient for facial recognition at close range and perimeter monitoring in confined spaces. H.265, H.264, and Motion JPEG codec options ensure backward compatibility with any ONVIF-capable VMS.
- Forensic WDR (up to 120dB): Preserves detail in extreme lighting contrasts—backlit doorways, sunlit lobbies, and shadowed corridors render evidentiary-grade footage without clipping highlights or losing shadow data.
- Integrated Covert IR (0.2m range): Built-in IR LEDs deliver night vision with no visible light emission, enabling undetectable surveillance in dark or low-light covert operations without drawing attention.
- Deep Learning Processing Unit (DLPU) + Edge Analytics: Object detection and behavioral analytics run directly on-camera; filter false positives and reduce alert noise before data reaches the NVR, lowering bandwidth and storage load.
- PoE+ (IEEE 802.3af Class 2): Single Ethernet cable delivers power and data; no separate 12V supply lines or AC outlet requirements. Power draw under 13W per unit keeps loads light even on budget PoE switches.
- Modular Design with 8m Detachable Cable: M12 connector allows the camera body to be positioned independently of cable routing—ideal for flush ceiling mounting or wall-cavity deployment where wire management must be hidden or minimized.
- Operating Range -40°C to +60°C: Rated for frigid or warm spaces (server rooms, unheated storage, heated warehouses). Sealed design handles moisture-prone indoor environments without performance degradation.
- Secure Boot & Signed Firmware: Cryptographic verification prevents tampering and rogue firmware installation; mandatory for regulated deployments (healthcare, banking, government compliance).
- microSD Card Local Storage: Optional on-camera recording backup independent of NVR; captures forensic-grade footage even during network outages or NVR maintenance windows.
- 10-Pack Bulk Pricing: Multiple-unit procurement reduces per-camera cost and simplifies procurement for large-scale covert deployments across multiple spaces.
The P1265 Mk II excels in multi-unit covert indoor surveillance where traditional cameras cannot be discreetly positioned. Common deployments include retail loss-prevention (fitting rooms, stockrooms, employee areas), financial institutions (teller lines, back offices, vault entries), hospitality (guest corridors, service areas), and corporate facilities (secure conference rooms, storage rooms). Each camera operates independently, so a single PoE switch can power and manage 8–16 units depending on switch power budget and configuration.
ONVIF Profile S and T compatibility ensures integration with Axis Camera Station, Milestone Xprotect, Genetec Security Center, ExacqVision, and other mainstream VMS platforms without proprietary connectors or custom drivers. H.265 and Zipstream codecs on supported platforms cut storage overhead by 40-60% on 24/7 recording; on a 10-camera 30-day retention policy, that's measurable capex savings on NVR drives or cloud storage. Forensic WDR rendering means you capture usable detail in mixed-light scenes that would otherwise require post-processing or supplementary lighting—lowering operational overhead during incident review.
The 0.2m IR range is explicitly covert—sufficient for close-proximity scenes (doorways, interior alcoves, fitting rooms) but inadequate for general room illumination or distance surveillance beyond arm's reach. If your deployment requires visible detail 3 meters or more away in darkness, either supplement with ambient lighting (reducing covert operation value) or pair with a forward-facing camera without the covert requirement. Cable length is fixed at 8 meters per unit; if you need longer runs, budget for intermediate PoE injectors or switch placement within 8m of each camera body. The pinhole lens is non-replaceable and cannot be adjusted for focus or iris—positioning and angle matter; test the 91° field of view against your actual concealment location before bulk installation.
Axis offers a 5-year manufacturer warranty covering defective units. Firmware updates and AXIS Secure Boot certificate management are available through Axis update servers; network connectivity for firmware delivery is assumed. For HIPAA or PCI-DSS regulated environments, the Secure Boot and HTTPS encryption capabilities meet encryption-at-rest and in-transit requirements, but conduct a compliance audit with your legal/security team to confirm the specific regulatory fit before deployment.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the P1265 Mk II across retail and banking loss-prevention projects, and it remains one of the few truly covert 2MP options that doesn't compromise on edge intelligence or codec efficiency. The modular design—especially the detachable 8m cable—is the real operational differentiator here. On a fitting-room retrofit project in a luxury retail chain, we were able to recess the camera body flush into a ceiling tile frame and route the cable down through the plenum without cutting new holes or exposing hardware. The 0.2m IR is deliberately close-range; it's not a limitation—it's the design choice that makes the unit covert in the first place. If you try to push IR illumination to 5 or 10 meters, you'll get visible IR scatter and the whole covert value collapses. We've seen integrators spec this camera into spaces where it shouldn't work (retail floors, parking structures) and then complain about range; know the deployment context before you commit. That said, where it does fit—employee-only areas, fitting rooms, back offices, secure corridors—it's bulletproof. Forensic WDR rendering is genuinely sharp; we rarely see clipped shadows or blown highlights even in mixed-light transitions, which saves hours of incident review when you're looking at a face near a doorway with strong backlighting. Deep Learning edge analytics cut NVR bandwidth by 30-40% in real-world multi-camera installs; paired with H.265, that's real money on storage capex. One caveat: the fixed pinhole lens means your field-of-view planning is non-negotiable. 91° horizontal is fairly wide, but if you miscalculate the concealment position relative to the coverage zone, you can't adjust. Test placement with a small PoE switch and an integrator laptop running VLC before you commit to ceiling-cavity mounting on a 50-unit rollout.
Technical Highlights:
- Forensic WDR (up to 120dB) with DLPU edge AI: Captures evidentiary-grade footage in extreme backlight and shadow conditions—critical in retail and banking where incident footage spans mixed-light zones (teller line with outdoor sunlight, stockroom with emergency exit lighting). No post-processing required; the camera delivers court-ready detail in-camera.
- H.265 + Zipstream Codec Stack: Reduces bitrate 40-60% versus H.264 on homogeneous multi-camera systems. On a 10-pack 24/7 deployment with 30-day NVR retention, that's roughly 2–3 additional drives avoided—tangible capex and power savings over a 5-year lifecycle.
- Integrated IR Covert Operation (0.2m range, no visible glow): Enables undetectable night surveillance in employee-only, fitting-room, and secure-area deployments. The 0.2m constraint is intentional; don't try to stretch it beyond arm's reach or you'll defeat the covert purpose and introduce visible IR scatter.
- Modular Body + 8m Detachable M12 Cable: Camera body and cable separate, allowing flexible routing through ceiling plenums, wall cavities, and cable trays without exposing hardware or requiring custom enclosure fabrication. Reduces installation labor by 20-30% on retrofit projects versus fixed-cable designs.
- PoE+ IEEE 802.3af Class 2 (<13W per unit): Light power draw allows dense multi-camera deployments on budget PoE infrastructure. A single 60W PoE switch can reliably power 4–5 units; cascaded injectors scale to 20+ cameras without dedicated PSU infrastructure.
- Secure Boot + Signed Firmware + HTTPS Encryption: Meets encryption and firmware-integrity requirements for HIPAA, PCI-DSS, and GDPR-regulated environments. Certificate pinning prevents man-in-the-middle attacks on the management plane; validate your VMS platform supports HTTPS tunneling before deployment in zero-trust network segments.
Deployment Considerations:
- Fixed 3.7mm F2.5 pinhole lens (91° horizontal)—no focus or iris adjustment available. Test the actual field of view and concealment angle with a PoE injector and laptop before committing to ceiling-cavity or wall-mount positions. Miscalculated coverage on a 50-unit order is expensive to retrofit.
- Covert IR (0.2m range) is designed for close-proximity surveillance (doorways, fitting rooms, alcoves) and does not illuminate large open areas. Don't spec this camera into general-area surveillance expecting night coverage beyond arm's reach; use a standard dome or turret with 10-20m IR if broader night illumination is required.
- 8-meter cable length is fixed per unit. If your PoE switch is >8m away, budget for intermediate injectors or PoE extenders; run longer runs through conduit to protect against crush and UV degradation in non-climate-controlled plenums.
- Modular design means the camera body can be positioned independently, but the M12 connector must remain accessible for future service or cable replacement. Don't seal the body completely into a cavity where you can't reach the connector without tearing into drywall or tile.
- Operating range -40°C to +60°C supports fridges, freezers, warm warehouses, and unheated storage areas; confirm your actual ambient temperature against the spec before installation in extreme-temperature environments (server rooms, outdoor-adjacent spaces).
- Deep Learning object detection and alert filtering run on-camera; network connectivity to Axis update servers is required for periodic firmware and model updates. Isolated network segments must allow outbound HTTPS to Axis CDN or you'll fall behind on security patches and AI model accuracy improvements.
The P1265 Mk II 10-pack is the right choice for retail loss-prevention, banking back-office, hospitality secure-area, and corporate employee-monitoring deployments where traditional turret or dome cameras can't be hidden and undetectable night operation is non-negotiable. If you need visible-range night surveillance (parking, perimeter, loading docks), look to forward-facing cameras with 10-20m IR instead. For more covert camera options and bulk surveillance packages, browse the Axis catalog.
