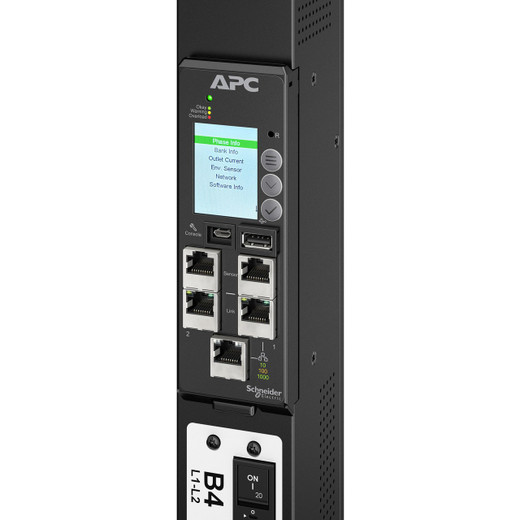

APC by Schneider Electric APDU11450SM Advanced Switched Metered Outlet Rack PDU
Overview
The APDU11450SM is APC's high-density, three-phase advanced switched metered outlet PDU built for enterprise data centers and large network equipment rooms where 34.6kW of load capacity needs per-outlet switching and metering in a single rack-mounted unit. At 415V three-phase input via an IEC 60309 60A 3P+N+PE plug, this PDU is sized for international high-density deployments — not a unit for a small wiring closet, but exactly right for a high-density compute or storage row. Explore the broader APC by Schneider Electric power management catalog for complementary infrastructure solutions.
Key Features
- 34.6kW / 34,600 VA Load Capacity: Handles the full power draw of a densely populated server row without load-shedding — meaningful when provisioning blade chassis or GPU clusters pulling sustained high current.
- 415V 3-Phase Input (50/60 Hz): Designed for international three-phase circuits standard in European and Asia-Pacific data centers. The dual-frequency support means it installs in either 50 Hz or 60 Hz grid environments without modification.
- Switched Metered Outlet (PDU Type): Per-outlet switching lets operations staff remotely cycle individual devices without touching the rack — critical for headless server recovery and scheduled maintenance windows. Metering delivers consumption data per outlet, so you can charge back by device and catch runaway power draws before they trip a breaker.
- 240V Output Voltage: Stepped-down output at 240V suits a wide range of server, storage, and networking hardware commonly found in international racks.
- IEC 60309 60A 3P+N+PE Input Plug: Industrial-grade locking connector rated for continuous 60A service — the correct plug format for high-current PDU drops in purpose-built data center floor installations.
- IP44 Ingress Protection: Rated against solid objects larger than 1mm and splash water from any direction — sufficient for most raised-floor and enclosed cabinet environments where occasional condensation or cleaning moisture is a real risk.
- 71.9-inch (1826mm) Form Factor, Side-Mount: At nearly 72 inches, this PDU spans a full-height 42U rack when side-mounted, distributing outlets across the entire cabinet height. Side mounting preserves all front and rear rack unit positions for equipment — no U-space consumed.
- 9.8 ft (3 m) Input Cord: The 3-meter cord reaches overhead busway or under-floor distribution in standard data center bay spacing without extension cords or custom whips.
- 28 lb (12.7 kg) Unit Weight: Plan for two-person installation when mounting — the full-height form factor combined with 12.7kg makes solo side-rail installation impractical and unsafe.
Integration & Compatibility
As part of the APC Netshelter ecosystem, the APDU11450SM is designed to integrate with rack PDU management platforms common in enterprise data center environments. The switched metered outlet architecture supports SNMP and network-based management consoles typical of APC's Netshelter line. Pair with APC UPS systems upstream to complete the power protection chain, and consult a rack power distribution guide to match PDU type to your load profile before ordering. The IP44 rating and IEC 60309 input make this unit compatible with purpose-built network equipment enclosures designed for international data center standards.
Frequently Asked Questions
Q: What input plug does the APDU11450SM require?
A: The APDU11450SM uses an IEC 60309 60A 3P+N+PE industrial locking plug. Verify your facility's power drop matches this connector before ordering — adapters for this amperage and phase configuration are not standard.
Q: What is the load capacity of the APDU11450SM?
A: The APDU11450SM is rated at 34,600 VA (34.6kW) at 415V three-phase input. This is a high-density unit intended for fully populated server rows, not general IT closet use.
Q: Can the APDU11450SM be used on a 60 Hz grid?
A: Yes. The APDU11450SM supports both 50 Hz and 60 Hz input frequency, making it compatible with North American and international three-phase grid standards.
Q: How is the APDU11450SM mounted in a rack?
A: The APDU11450SM is rack-mounted in a side-mount configuration, spanning the full 71.9-inch (1826mm) height of a standard cabinet. Side mounting preserves all front and rear rack unit positions for active equipment.
Q: What is the IP rating on the APDU11450SM?
A: The APDU11450SM carries an IP44 rating — protected against solid objects larger than 1mm and water splashing from any direction. It is suitable for standard enclosed cabinet environments but is not rated for immersion or heavy wash-down conditions.
When I spec a high-density rack deployment in a European or Asia-Pacific data center, the APDU11450SM comes up quickly — 34.6kW at 415V three-phase with per-outlet switching and metering is a combination that eliminates the need for separate metering hardware and gives operations real remote control without a crash cart. The IEC 60309 60A 3P+N+PE input is the right industrial connector for this load class, not a compromise.
Technical Highlights:
- 34,600 VA Capacity: Enough headroom to fully load a mixed blade and 1U server row without de-rating — relevant when your per-rack density exceeds 20kW.
- Switched Metered Outlet Type: Per-outlet switching + metering in one unit means you get remote power cycling AND consumption accountability at the device level, not just the PDU level.
- IP44 Rating: Adequate for enclosed cabinets with climate control — not over-engineered, but it covers the condensation and cleaning-moisture risks that occasionally trip up unsealed units.
Deployment Considerations:
- The 71.9-inch side-mount form factor requires a full-height rack (42U or equivalent) — verify cabinet interior clearance on the mounting rail side before the unit ships to site.
- At 28 lb (12.7 kg) and nearly 6 feet long, this is a two-person installation minimum; single-person side-rail mounting risks both personal injury and connector damage on the 3-meter input cord.
The APDU11450SM is the right specification for a high-density international compute row — European co-location buildouts, hyperscale edge nodes on 415V infrastructure, or any deployment where per-outlet accountability and remote switching are operational requirements rather than nice-to-haves.
