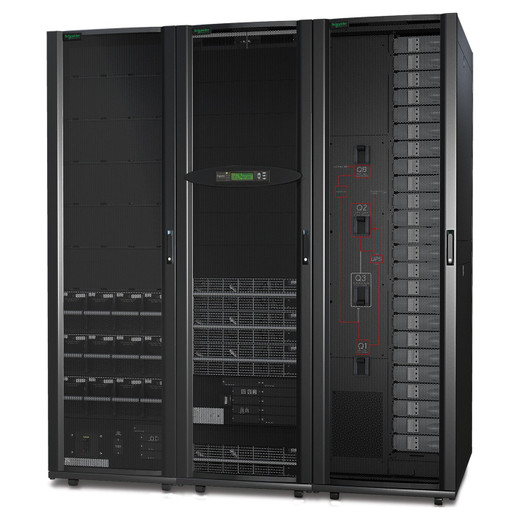

APC by Schneider Electric UPS - 120V 208V 208V - 30 KW - (1) Hard Wire 5-WIRE (3PH + - SY30K100F

APC by Schneider Electric SY30K100F 30KVA Three-Phase Uninterruptible Power Supply

Overview

The APC by Schneider Electric SY30K100F is a 30KVA/30KW three-phase uninterruptible power supply from the PX Series — built for data centers, large server rooms, and critical infrastructure deployments where a hard-wired, high-capacity power protection backbone is non-negotiable. At 30,000VA with 120/208V output over a hard-wire 5-wire (3PH +N+G) connection, the SY30K100F is engineered for facilities running enterprise compute, storage arrays, or process-critical loads that cannot tolerate even momentary power anomalies.

Key Features

• 30KVA / 30KW Capacity: At 30,000VA and 30KW rated output, this unit can carry substantial enterprise loads — think a dense server rack deployment or a mid-tier data hall — without requiring multiple smaller UPS units that complicate monitoring and maintenance.
• 120/208V Three-Phase Output: The 120/208V output configuration supports both single-phase branch circuits (120V loads) and three-phase equipment (208V) from a single unit, which simplifies power distribution architecture in mixed-load environments like enterprise server rooms and manufacturing facilities.
• Hard Wire 5-Wire Connection (3PH + N + G): Direct hard-wire termination rather than a plug-and-receptacle connection means a more permanent, lower-resistance installation — appropriate for the amperage levels a 30KW UPS operates at. Plan for licensed electrical work during installation; this is not a plug-in unit.
• PX Series Platform: The PX Series lineup from APC by Schneider Electric is positioned for modular, scalable data center power — meaning this unit fits within a broader ecosystem of APC power management, monitoring, and expansion hardware.
• Three Battery Modules Included: The SY30K100F ships with three battery modules, so you are not purchasing runtime as a separate line item for initial commissioning. Verify that the included battery runtime meets your target hold-up time for your specific load profile before finalizing your UPS selection.
• Large Form Factor — Purpose-Built Footprint: At 79.17 inches tall, 47.24 inches wide, and 42.13 inches deep, this is a floor-standing, dedicated-space installation. Account for clearance requirements, floor load ratings, and access for battery module service in your facility planning.
• Black Finish: Standard data center black finish integrates without visual friction into modern server room and data hall environments.

Integration and Compatibility

The SY30K100F is designed for integration into APC's broader power management ecosystem. The PX Series architecture is typically compatible with APC's network management cards, environmental monitoring units, and external battery frame options — confirm specific accessory compatibility against APC's current PX Series documentation for your exact firmware revision. For facilities planning redundant power paths, pair this unit with appropriate power distribution units downstream to segment and monitor branch circuit loads.

Hard-wire output means upstream switchgear, conduit sizing, and breaker coordination must be engineered to match the unit's input and output ratings. Engage your electrical contractor and AHJ early — commissioning a 30KW UPS in a new or retrofit installation requires coordinated permitting in most jurisdictions.

What's in the Box

• 1x APC SY30K100F UPS Unit
• 3x Battery Modules

Frequently Asked Questions

Q: What output voltage and phase configuration does the SY30K100F provide?

A: The SY30K100F delivers 120/208V output in a three-phase configuration via a hard-wire 5-wire connection (3PH + neutral + ground). It supports both 120V single-phase branch loads and 208V three-phase equipment from a single unit.

Q: Does the SY30K100F include battery modules, or are those purchased separately?

A: Three battery modules are included with the SY30K100F. You should verify that the included battery configuration provides sufficient runtime for your specific load before ordering additional external battery frames.

Q: Is the SY30K100F a plug-in unit or does it require hard-wire installation?

A: The SY30K100F uses a hard-wire 5-wire termination — it is not a plug-and-play unit. Professional electrical installation by a licensed contractor is required, and local permitting may apply depending on your jurisdiction and facility type.

Q: What are the physical dimensions of the SY30K100F?

A: The unit measures 79.17 inches high × 47.24 inches wide × 42.13 inches deep. It is a floor-standing installation — plan for adequate clearance, floor load capacity, and service access in your facility layout.

Q: What series does the SY30K100F belong to, and what does that mean for scalability?

A: The SY30K100F is part of APC's PX Series, which is designed for modular data center power infrastructure. This means the unit is built to integrate with APC's broader ecosystem of management cards, monitoring hardware, and external battery expansion options within the PX platform.

Marty Allison

When a facility is running enterprise-class compute at scale, the power protection layer is not where you cut corners — and the SY30K100F's 30KVA/30KW three-phase capacity with hard-wire 5-wire output reflects exactly that engineering priority. I've seen integrators underspec UPS capacity on dense virtualization clusters and pay for it during their first utility event; 30KW gives you real headroom if you're running a mixed environment of servers, storage, and networking gear.

Technical Highlights:

• 30,000VA / 30KW Rating: Handles enterprise-scale loads without load-shedding risk — sufficient for a dense rack cluster or multiple server cabinets operating simultaneously.
• 120/208V Dual-Voltage Output: A single unit serves both 120V branch circuits and 208V three-phase loads, eliminating the need for a separate step-down transformer in mixed-load data rooms.
• Three Battery Modules Included: Commissioning runtime is not a day-one procurement gap — the three included modules get you operational without a separate battery order, though runtime at full 30KW load should be confirmed against APC's published runtime curves for this configuration.

Deployment Considerations:

• At 79.17 × 47.24 × 42.13 inches, this unit demands deliberate floor planning — not just square footage but structural floor load ratings. Confirm your raised floor or slab rating before delivery.
• Hard-wire 5-wire termination is a licensed electrical job in virtually every jurisdiction. Budget for an electrician and AHJ coordination from day one — this is not a self-install unit.

The SY30K100F is the right fit for a mid-tier data center build-out or a large enterprise server room where three-phase power distribution is already in place and the facility team needs a single high-capacity UPS rather than a bank of smaller units.
