APC by Schneider Electric Galaxy vs UPS 30KW 480V for UP to 4 Internal 9AH Smart - GVSUPS30K0B4GS

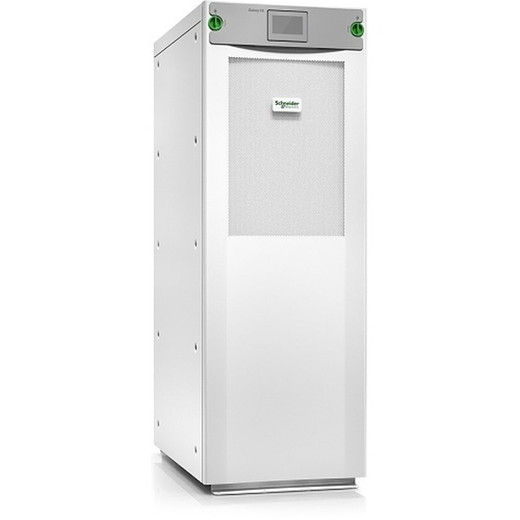

APC by Schneider Electric GVSUPS30K0B4GS Galaxy VS 30kW 3-Phase UPS

Overview

The APC by Schneider Electric GVSUPS30K0B4GS is a 30kW, 480V three-phase uninterruptible power supply designed for data centers, industrial facilities, and critical infrastructure environments where a single-phase UPS is insufficient and downtime carries real operational or financial consequences. At 440.9 lb (200 kg) and standing 58.46 inches (148.5 cm) tall, this is a floor-standing unit engineered for dedicated equipment rooms — not a shelf or rack installation. It accepts up to four internal 9Ah smart battery modules, giving facilities teams a self-contained power protection solution without requiring a separate external battery cabinet for initial deployments.

The Galaxy VS line from APC by Schneider Electric targets medium-to-large commercial and industrial loads where balanced three-phase input and output are mandatory. Both input and output operate at 480V three-phase, matching the distribution architecture common in North American commercial buildings and light industrial plants. If your critical load infrastructure is wired at 480V three-phase — server rooms fed from a 480V panel, precision cooling units, or industrial process equipment — this UPS slots in without requiring a step-down transformer between the UPS and the load.

Key Features

• 30kW Output Capacity: A 30kW rating means this unit can carry a substantial server room or consolidated network closet load without running near its ceiling. Oversized UPS capacity reduces thermal stress on components and extends battery cycle life — both relevant for 24/7 critical infrastructure.
• 480V Three-Phase Input and Output: Matching input and output at 480V three-phase eliminates transformer losses between the utility feed and your protected load. In facilities already wired at 480V, this simplifies the electrical installation and reduces heat dissipation compared to stepped-voltage configurations.
• Up to 4 Internal 9Ah Smart Battery Modules: Internal batteries mean no additional footprint for a separate battery enclosure in the initial build-out. Smart battery management extends battery service life and provides accurate runtime estimates — critical when you're coordinating generator start sequences during an extended outage.
• IP20 Ingress Protection: IP20 is appropriate for controlled indoor environments — equipment rooms, server rooms, and conditioned industrial spaces. It protects against contact with fingers and objects larger than 12.5mm but is not rated for wet or dusty industrial floors. Plan the installation location accordingly: this unit belongs in a dedicated, access-controlled electrical room.
• 440.9 lb (200 kg) Unit Weight: At this weight, floor loading and rigging are pre-installation engineering tasks, not afterthoughts. Confirm that the installation floor can support the combined weight of the unit, batteries, and any adjacent equipment before scheduling delivery. A pallet jack and additional personnel or mechanical assistance will be required for positioning.
• White Enclosure: The white finish is consistent with data center and clean-room aesthetic standards. While this is a minor operational point, it matters in facilities where equipment color coding or room appearance is part of the facilities management standard.

Integration & Compatibility

The GVSUPS30K0B4GS is designed to integrate with three-phase UPS infrastructure in commercial and industrial facilities. The 480V three-phase architecture aligns with North American commercial power distribution standards. For facilities managing multiple UPS units or requiring centralized monitoring, APC's EcoStruxure IT ecosystem and compatible network management cards provide remote visibility into runtime, load percentage, battery health, and alarm conditions — consult current APC documentation for compatible management card options for this model. For deployment planning in larger critical power environments, review your power protection strategy to determine whether parallel redundancy or an N+1 configuration is appropriate for your uptime SLA.

At 30kW, this UPS is sized for medium-density server rooms, consolidated network operations, or critical industrial process control panels. If your protected load is below 10kW, a smaller single-phase or lower-capacity three-phase unit from the APC Galaxy VS family will deliver better efficiency at partial load. If your facility requires external battery cabinets for extended runtime beyond what four internal 9Ah modules provide, APC offers compatible external battery enclosures — verify compatibility against current APC Galaxy VS documentation before ordering.

Frequently Asked Questions

Q: What is the input and output voltage of the GVSUPS30K0B4GS?

A: Both input and output are 480V three-phase. This unit is not suitable for single-phase applications or for facilities running standard 208V or 240V three-phase distribution without additional transformer infrastructure.

Q: How many internal battery modules does the GVSUPS30K0B4GS support?

A: The unit supports up to four internal 9Ah smart battery modules. This configuration provides internal runtime without a separate external battery cabinet for initial deployments.

Q: What is the IP rating of the GVSUPS30K0B4GS?

A: The unit carries an IP20 rating, which is suitable for clean, controlled indoor environments such as equipment rooms and server rooms. It is not rated for wet or heavily particulate industrial environments.

Q: What does the GVSUPS30K0B4GS weigh, and are there floor loading requirements?

A: The unit weighs 440.9 lb (200 kg). Floor loading capacity must be verified prior to installation, and mechanical assistance will be required for positioning. Consult a licensed electrician and your facility's structural engineer before installation.

Q: Can the GVSUPS30K0B4GS be monitored remotely?

A: The Galaxy VS platform supports APC network management card accessories for remote monitoring via APC's EcoStruxure IT ecosystem. Specific compatible management cards should be confirmed against current APC Galaxy VS product documentation for this model.

Q: Is the GVSUPS30K0B4GS suitable for external battery expansion?

A: The unit accommodates up to four internal 9Ah battery modules. APC offers compatible external battery enclosures for extended runtime requirements — verify compatibility with current APC Galaxy VS documentation before purchase.

Karl Wilson

The GVSUPS30K0B4GS is the right conversation starter when a customer comes in asking for three-phase protection at 480V with an internal battery option — the self-contained four-module 9Ah configuration is a meaningful advantage for facilities that want a smaller initial footprint before committing to a full external battery cabinet. At 30kW, it sits in a capacity tier that's undersold in a lot of medium-density server room builds where the actual connected load runs 18–24kW — that headroom isn't waste, it's longevity for both the inverter and the batteries.

Technical Highlights:

• 480V 3-Phase In/Out: Direct voltage match to North American 480V commercial distribution means no step-down transformer between the panel and the UPS, reducing both installation complexity and efficiency losses in the conversion chain.
• 440.9 lb (200 kg) Unit Weight: This is not a load-in-yourself unit. Rigging, floor capacity verification, and a pre-installation structural review are non-negotiable line items before the delivery truck arrives — budget accordingly.
• IP20 Enclosure Rating: Appropriate for a clean equipment room; this rating does not qualify the unit for open industrial floors with dust, moisture, or chemical exposure. Installation environment selection is a hard constraint, not a preference.

Deployment Considerations:

• At 58.46 inches tall (148.5 cm), confirm door and corridor clearances on the delivery path to the final installation location — particularly in existing buildings with tight mechanical room access.
• Internal 9Ah batteries will provide limited runtime at 30kW load; for extended outage coverage beyond generator start time, plan for external battery cabinet integration from the initial design phase rather than retrofitting later.

This unit is well-positioned for a medium-density server room or network operations center running at 480V three-phase where the primary protection requirement is ride-through during generator transfer switching — a scenario where the internal battery capacity is sufficient and the 30kW ceiling leaves room for controlled load growth over the equipment lifecycle.
