APC by Schneider Electric Galaxy vs UPS 30KW 208V for UP to 5 Internal 9AH Smart - GVSUPS30K0B5FS

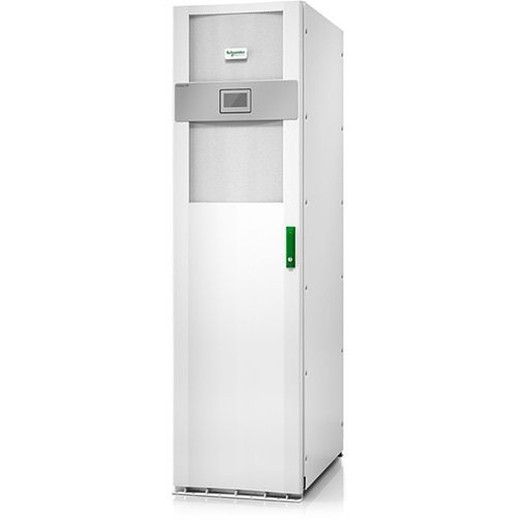

APC by Schneider Electric GVSUPS30K0B5FS Galaxy VS 30kVA Three-Phase UPS

Overview

The APC by Schneider Electric GVSUPS30K0B5FS is a 30kVA / 30kW three-phase online UPS designed for commercial data centers and critical infrastructure environments running 208V three-phase power distribution. With support for up to five internal 9AH smart modular battery strings, this unit delivers scalable runtime capacity in a single enclosure — the right starting point for mid-size server rooms, edge data halls, and dense compute deployments where power continuity is non-negotiable.

If you are specifying power protection for a new data center build-out or retrofitting an existing three-phase distribution scheme, the Galaxy VS family from APC by Schneider Electric sits in the commercial-critical tier between small office UPS units and full enterprise static transfer switch installations. The GVSUPS30K0B5FS specifically targets deployments where 208V three-phase input is already present and where internal battery modularity reduces the need for external battery cabinets at initial commissioning.

Key Features

• 30kVA / 30kW Output Capacity: At unity power factor, rated kVA equals rated kW — you are not derated by a 0.8 or 0.9 power factor penalty that forces you to oversize the UPS to hit your actual load budget. Size it at real watts, not apparent power headroom.
• 208V Three-Phase Input: Accepts 208V AC three-phase input directly from standard North American commercial distribution panels — no step-up transformer required for most data center PDU configurations. Input voltage range floor at 177V AC means the unit rides through typical utility sag events without switching to battery unnecessarily.
• Sine Wave Output at 200V AC: Pure sine wave output at 200V AC protects active PFC power supplies — the type found in virtually every modern server, storage array, and networking chassis. Non-sine (stepped approximation) UPS units can trigger active PFC PSU shutdowns under load; this unit does not carry that risk.
• 60Hz Output Frequency: Fixed 60Hz output regardless of input frequency drift, which is important in facilities where generator sets may run slightly off-frequency during transition or sustained generator operation. Your connected loads see a stable 60Hz reference at all times.
• Web/SNMP/Modbus TCP Network Management: All three major management protocols are supported natively. SNMP integration drops directly into most DCIM, BMS, and NMS platforms. Modbus TCP covers building automation and industrial control system integrations — useful in mixed IT/OT environments. Web interface provides out-of-band visibility without requiring a dedicated management server.
• Up to 5 Internal Smart Modular Battery Strings: Modular battery architecture means you can commission the unit with fewer strings and expand runtime capacity by adding strings without taking the UPS offline or recabling. Smart battery management on each string enables individual string monitoring and replacement — the failure of one string does not mask the condition of the others.
• Overload Protection: Active overload protection prevents damage to connected loads and the UPS itself during transient overload events, reducing the risk of cascade failures in high-density rack environments.
• Commercial and Data Center Application Rating: Rated explicitly for both commercial and data center use — not a consumer or light commercial device. This matters for insurance documentation, facilities compliance reviews, and colocation SLA requirements that specify commercial-rated power conditioning equipment.

Integration and Compatibility

The GVSUPS30K0B5FS integrates with enterprise network management infrastructure via Web, SNMP, and Modbus TCP — three protocols that collectively cover the majority of DCIM platforms, building management systems, and SCADA environments in use today. For data center managers running NMS platforms such as SolarWinds, PRTG, or Nagios, SNMP trap and polling support enables UPS status, battery health, load percentage, and alarm conditions to surface in the same dashboard as compute and network infrastructure.

Modbus TCP support is particularly relevant in facilities that blend IT and operational technology — manufacturing plants, healthcare facilities, and utility substations where Modbus is the native protocol for energy and environmental monitoring systems. This eliminates the need for protocol converters or separate monitoring appliances at the UPS layer.

For larger deployments requiring extended runtime beyond what five internal battery strings provide, consult the Galaxy VS external battery cabinet options within the same product family. The modular internal design of the GVSUPS30K0B5FS also simplifies integration with UPS and power protection maintenance contracts, since individual battery strings can be swapped by facilities staff without specialized tooling in most cases.

Frequently Asked Questions

Q: What input voltage does the GVSUPS30K0B5FS require?

A: The GVSUPS30K0B5FS requires 208V AC three-phase input with a minimum input voltage of 177V AC. It also accepts 239V AC input, making it compatible with a range of commercial three-phase distribution configurations.

Q: Does the GVSUPS30K0B5FS produce a true sine wave output?

A: Yes. The unit outputs a pure sine wave at 200V AC, 60Hz. This is required for compatibility with active PFC power supplies used in servers and enterprise networking equipment.

Q: How many battery strings can the GVSUPS30K0B5FS support internally?

A: The GVSUPS30K0B5FS supports up to five internal 9AH smart modular battery strings. Strings can be added incrementally to increase runtime capacity without taking the unit offline.

Q: What network management protocols does the GVSUPS30K0B5FS support?

A: The unit supports Web-based management, SNMP, and Modbus TCP. This covers integration with most DCIM platforms, building management systems, and industrial control environments.

Q: Is the GVSUPS30K0B5FS suitable for a data center application?

A: Yes. The unit is rated for both commercial and data center applications. Its three-phase architecture, modular battery design, and multi-protocol network management align with data center power conditioning requirements.

Q: What is the output frequency of the GVSUPS30K0B5FS?

A: Output frequency is fixed at 60Hz regardless of input frequency variation, ensuring stable frequency delivery to connected loads during utility disturbances or generator operation.

James Everett

The spec I keep coming back to on the GVSUPS30K0B5FS is the unity power factor — 30kVA equals 30kW here, and that closes a gap that trips up a lot of capacity planning exercises. Most three-phase UPS units in this class are rated at 0.8 or 0.9 power factor, which means a nominal 30kVA unit only delivers 24–27kW of real power. When your server chassis PSUs are drawing 28kW and you spec'd a 30kVA UPS at 0.9 PF, you are already undersized on day one. That is not a theoretical risk — it is a common root cause of premature overload events in retrofitted data halls.

Technical Highlights:

• Unity Power Factor (30kVA = 30kW): No derating penalty — spec your UPS at actual load watts, not inflated apparent power. Eliminates the 10–25% capacity buffer that 0.8 PF units force you to carry.
• 177V AC Input Floor: Rides through standard utility voltage sag events without dropping to battery. In facilities with long feeder runs or shared distribution panels, this tolerance prevents unnecessary battery cycling that degrades string life over time.
• Modbus TCP + SNMP + Web Management: Three independent management paths mean you are not locked into a single NMS vendor or protocol stack. Modbus TCP in particular handles OT-side integrations — BMS, SCADA, facility energy metering — without an additional protocol gateway appliance.

Deployment Considerations:

• The 200V AC output is standard for three-phase four-wire (208Y/120V) distribution, but verify your PDU and downstream equipment input ranges before commissioning — some single-phase 208V loads will see this as line-to-neutral and may require a delta/wye step-down for certain legacy devices.
• With a minimum input frequency floor of 70Hz noted in the evidence, confirm generator set output frequency stability during transition and sustained operation — generators running at low speed under light load can drift below 60Hz on startup transients.

This unit is a practical fit for a mid-density edge data hall or a 20–30 rack colocation cage that has 208V three-phase available from the building distribution and needs scalable internal runtime without committing floor space to external battery cabinets from day one.
