APC by Schneider Electric GVSUPS40K0B5FS Galaxy VS 40kVA Three-Phase UPS

Overview

The APC by Schneider Electric GVSUPS40K0B5FS is a 40kVA/40kW three-phase uninterruptible power supply built around the Galaxy VS platform — a modular, scalable UPS architecture aimed at medium to large enterprise loads including server rooms, network closets, and distributed IT infrastructure. It accepts up to five internal 9Ah smart modular battery strings, giving you a path to extend runtime incrementally without replacing the entire battery plant.

At 40kW of output capacity across a three-phase configuration, this unit is sized for environments that can't tolerate downtime: data centers, manufacturing control systems, broadcast infrastructure, and healthcare equipment rooms. The pure sine wave output protects sensitive electronics and motor-driven loads that reject the stepped approximations produced by line-interactive or simulated sine wave designs.

Key Features

• 40kVA / 40kW Output Capacity: Sized for enterprise-grade, three-phase distribution — enough headroom to carry multiple server racks, storage arrays, or process control panels simultaneously without derating concerns on most mid-density deployments.
• Pure Sine Wave Output: The Galaxy VS delivers a true sine wave at 200V AC output and 60Hz — critical for variable-speed drives, active PFC power supplies, and medical imaging equipment that will fault or run hot on modified sine wave power.
• Three-Phase Input Architecture: Three-phase input (nominal 230V AC) balances load across phases and reduces distribution losses compared to single-phase feeds at this power level. Appropriate for facilities already provisioned with three-phase branch circuits.
• Wide Input Voltage Tolerance: The unit accepts input down to 177V AC before switching to battery — roughly a 23% sag below nominal. That tolerance keeps the UPS on utility power through voltage dips that would otherwise cause unnecessary battery cycling and accelerated battery wear.

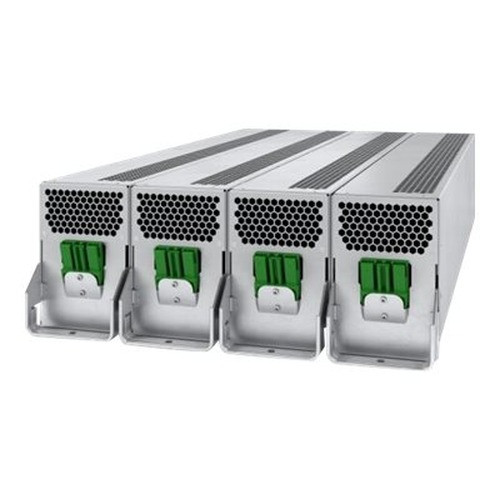

• Up to 5 Internal Modular Battery Strings (9Ah Each): Battery capacity scales inside the chassis without requiring external battery cabinets for shorter runtime requirements. Adding strings expands runtime; the modular design allows hot-swap replacement, reducing maintenance windows.
• Input Frequency Acceptance up to 70Hz: The 70Hz upper input frequency tolerance accommodates generator sets that overspeed briefly during load acceptance — a common field condition in sites using backup gen-sets that causes cheaper UPS units to reject generator power and stay on battery unnecessarily.
• Business-Class Application Targeting: The Galaxy VS platform is engineered for continuous commercial operation, not consumer or light-commercial surge protection — relevant when specifying against lower-tier UPS products that share similar kVA ratings but lack the robustness for 24/7 critical loads.

Integration and Compatibility

The GVSUPS40K0B5FS operates at 208V output in a three-phase configuration, which aligns with standard North American data center PDU and equipment input ratings. Confirm that downstream PDUs and equipment accept 200–208V three-phase input before deployment — mismatches between UPS output voltage and equipment input range are the most common commissioning error on three-phase UPS installations.

For power and UPS systems in facilities running mixed single-phase and three-phase loads, the Galaxy VS platform typically integrates with APC by Schneider Electric's EcoStruxure IT monitoring ecosystem, though specific network card and SNMP module compatibility should be verified against the current APC APC by Schneider Electric product line accessory matrix prior to procurement. Runtime calculations depend on actual load, battery string count, and battery age — use APC's runtime sizing tools with your specific load profile rather than estimating from nominal ratings.

If your facility requires three-phase UPS solutions with extended external battery cabinets for longer runtime windows — beyond what five internal 9Ah strings provide — verify whether the Galaxy VS chassis supports external battery expansion before committing to this configuration. For projects where a power management strategy includes remote monitoring, confirm network management card availability separately.

Frequently Asked Questions

Q: What is the output voltage of the GVSUPS40K0B5FS?

A: The GVSUPS40K0B5FS outputs 200V AC at 60Hz in a three-phase configuration.

Q: What input voltage does the GVSUPS40K0B5FS require?

A: The unit is rated for 230V AC nominal input and will accept input voltage as low as 177V AC before transferring to battery operation.

Q: What type of output waveform does the GVSUPS40K0B5FS produce?

A: It produces a pure sine wave output — required for sensitive electronics, active PFC power supplies, and variable-speed drive equipment that cannot tolerate stepped or modified sine wave power.

Q: How many battery strings does the GVSUPS40K0B5FS support internally?

A: The unit supports up to five internal 9Ah smart modular battery strings. Adding more strings increases available runtime; the modular design supports in-field expansion without replacing the full battery system.

Q: Is the GVSUPS40K0B5FS suitable for generator-backed installations?

A: Yes — the unit accepts input frequencies up to 70Hz, which accommodates the brief overspeed condition that occurs when generator sets accept load. This prevents unnecessary battery transfers during generator startup sequences.

Q: What is the load capacity of the GVSUPS40K0B5FS?

A: The rated load capacity is 40kVA / 40kW, suitable for enterprise server rooms, network infrastructure, and process control environments running three-phase distribution.

Jerry Tildsen

The spec that drives most of my pre-sales conversations on the GVSUPS40K0B5FS is the 177V AC low-end input tolerance — in facilities with aging electrical distribution or long feeder runs, voltage sag events in the 180–200V range are common, and a UPS that trips to battery at 195V will chew through battery life within months on those sites. The 177V floor gives you genuine headroom on imperfect utility feeds.

Technical Highlights:

• 40kVA / 40kW Three-Phase Capacity: At unity power factor (40kW = 40kVA here), there's no derating penalty for resistive or near-unity loads — server and storage environments with modern active PFC supplies will draw close to the full kW rating, so this sizing is realistic for mid-density rack deployments.
• Pure Sine Wave at 200V AC / 60Hz: True sine wave output is non-negotiable for variable-frequency drives and any load with active PFC. Stepped-sine UPS units will cause PFC supplies to run at elevated input current, generate heat, and sometimes fault — the Galaxy VS avoids that entirely.
• 70Hz Input Frequency Upper Limit: Most three-phase UPS units spec to 65Hz on the upper end. The 70Hz ceiling here is a meaningful differentiator in sites running older generator sets with loose governor control, where frequency can spike to 66–68Hz during load pickup before stabilizing.

Deployment Considerations:

• The output is rated 200V AC, not 208V — verify that downstream equipment and PDUs accept 200V input, as some North American equipment is spec'd for 208V minimum. The 4% gap rarely causes issues in practice, but confirm with equipment manufacturers on critical loads.
• Runtime estimates must be calculated against your actual load percentage and battery string count — five 9Ah strings at 40kW load will deliver substantially less runtime than the same strings at 20kW. Don't spec this unit based on nominal battery capacity alone; run the APC sizing tool with your real load profile.

The GVSUPS40K0B5FS is the right fit for a mid-size data hall or distributed enterprise IT room where three-phase distribution is already in place, load is in the 25–40kW range, and the site needs modular battery expansion capability without committing to external battery cabinet floor space on day one.
