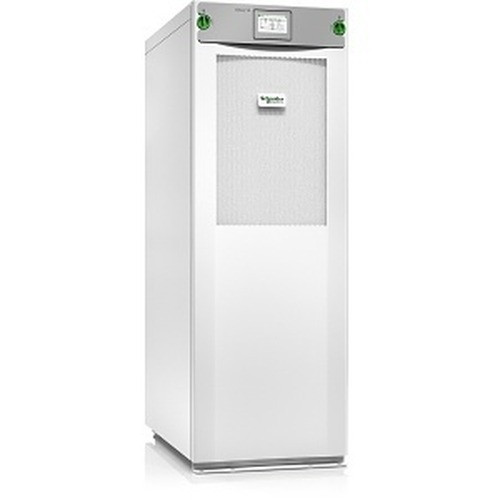

APC by Schneider Electric Galaxy vs UPS 40KW 208V for External Batteries Start-up 5X8 - GVSUPS40KFS

APC by Schneider Electric GVSUPS40KFS Galaxy VS 40kW 208V UPS for External Batteries

Overview

The GVSUPS40KFS is a 40kW, 208V Galaxy VS uninterruptible power supply from APC by Schneider Electric, engineered for data centers, large IT closets, and critical infrastructure environments where a 3-phase power interruption means unacceptable downtime. The 40kW capacity handles substantial multi-rack or multi-server loads that consumer-grade or small-business UPS units simply cannot support. The 208V configuration is standard for North American data center distribution, meaning it drops cleanly into most existing commercial power infrastructure without additional step-down transformers. This unit is configured for external battery cabinets — runtime is not fixed by internal cells but scales with however many external battery modules you commission, giving you genuine flexibility to match runtime to your SLA. The 5x8 start-up service included with the GVSUPS40KFS means a qualified APC field technician handles commissioning during standard business hours, which matters at this power class where improper startup can void warranty coverage and introduce safety risk.

Key Features

• 40kW Output Capacity: handles dense compute or multi-rack loads typical in colocation rows, enterprise server rooms, and edge data centers — at this scale you're past what a single 3-phase PDU can protect without a unit of this class.
• 208V Input/Output: aligns directly with North American commercial distribution voltage, so no step-down transformer is needed between your building switchgear and this unit.
• External Battery Architecture: runtime is not capped at the factory — add battery cabinets to match your required hold time, whether that's 5 minutes to bridge a generator start or 30+ minutes for extended outage coverage.
• Galaxy VS Platform: APC's Galaxy VS line targets 3-phase UPS deployments in the 10–100kW range, with a design emphasis on high-efficiency operation that reduces heat load in already thermally-constrained machine rooms.
• 5x8 Start-Up Service: factory-trained commissioning during business hours is bundled — skip this and you're doing a 40kW UPS start-up unassisted, which carries real risk at this power class.
• Scalable for Growing Infrastructure: the external battery model means you can expand runtime as your criticality requirements grow without replacing the UPS itself.

Integration and Compatibility

The GVSUPS40KFS is designed for integration into commercial and enterprise power distribution environments running 208V 3-phase. It is intended to pair with APC Galaxy VS-compatible external battery cabinets and is managed through APC's EcoStruxure IT ecosystem, which supports remote monitoring, load management, and predictive maintenance workflows common in data center infrastructure deployments. Verify battery cabinet compatibility with APC's current Galaxy VS accessory matrix before ordering.

Frequently Asked Questions

Q: What external battery cabinets are compatible with the GVSUPS40KFS?

A: The GVSUPS40KFS is designed for use with APC Galaxy VS-series external battery cabinets. Verify the current compatibility list directly with APC's Galaxy VS documentation, as cabinet options may vary by region and product generation.

Q: What does the 5x8 start-up service cover?

A: The 5x8 start-up service includes on-site commissioning by a qualified APC field technician during standard business hours (5 days a week, 8 hours a day). This covers initial system startup, configuration verification, and basic operational testing.

Q: Does the GVSUPS40KFS include internal batteries?

A: No. The GVSUPS40KFS is configured for external batteries only. Runtime is determined by the number and capacity of external battery cabinets connected — internal cells are not included.

Q: Is the GVSUPS40KFS suitable for single-phase loads?

A: The Galaxy VS is a 3-phase UPS platform. At 40kW/208V it is intended for 3-phase distribution environments. Consult APC's technical resources if you need to connect single-phase branch circuits downstream of this unit.

Karl Wilson

The GVSUPS40KFS sits at the 40kW mark on the Galaxy VS platform — a capacity point that makes sense when you're protecting a dense compute row or a mid-size server room where a single large UPS is more practical than stacking several smaller units. The external-battery-only configuration is the right call for any deployment where runtime requirements aren't fixed at purchase time.

Technical Highlights:

• 40kW / 208V: sized for multi-rack or high-density compute loads on standard North American commercial distribution — no step-down transformer required in a properly designed 208V facility.
• External Battery Architecture: runtime scales with battery cabinet additions rather than being factory-fixed, which lets you right-size hold time to your actual generator start or transfer switch timing rather than over-buying at initial install.
• Bundled 5x8 Start-Up: at 40kW, a factory-trained commissioning visit is not optional from a safety or warranty standpoint — having it included removes one procurement variable.

Deployment Considerations:

• Confirm your facility's 3-phase 208V feed can support the full 40kW load plus overhead before sizing the upstream breaker — the Galaxy VS datasheet specifies input current draw that must be verified against your panel capacity.
• The 5x8 service window means commissioning happens during business hours only; if your cutover window is nights or weekends, verify whether an upgrade to 24x7 startup service is available for this SKU before purchasing.

The GVSUPS40KFS is the right fit for a mid-size enterprise server room or edge data center node running 208V 3-phase distribution where runtime flexibility matters more than a fixed battery configuration — specifically environments expecting generator-backed facilities where the UPS bridges the gap to generator transfer rather than carrying the load indefinitely.
