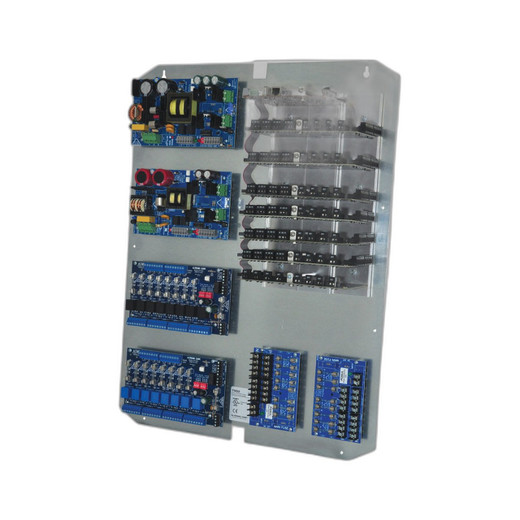

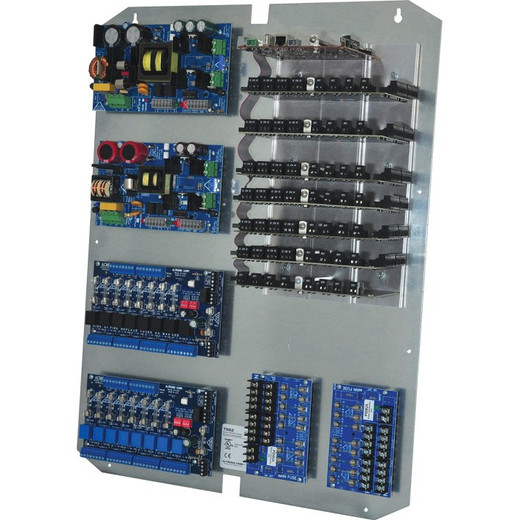

Altronix TSS2 Trove2 Modular Backplane
The Altronix TSS2 is a modular backplane that serves as the central interconnect backbone for Trove2 power distribution systems. Designed to consolidate and expand security infrastructure power management, the TSS2 enables integrators to deploy multiple compatible power modules within a single chassis while maintaining standardized connectivity and centralized control. This architecture eliminates the operational complexity of managing scattered power supplies across access control, video, and intercom deployments.
Key Features
- Modular Backplane Architecture: Standardized connector interface accepts multiple Trove2-compatible power modules. Scales from single-module configurations to multi-module expansion without redesign or field rewiring.
- Centralized Power Management: Consolidates power distribution for access control readers, IP cameras, intercoms, and auxiliary loads across distributed security zones into one managed system. Reduces installation labor and simplifies troubleshooting.
- Scalable Expansion: Add or reconfigure power modules as security infrastructure grows — supports incremental capacity growth without equipment replacement. Ideal for phased deployments and future-proofing.
- Standardized Modular Connectors: Proprietary but consistent connector design ensures reliable, keyed integration. No risk of incorrect module installation or intermittent connections from loose wiring.
- US-Manufactured: Built in the United States. Sourced direct from the manufacturer or US authorized distributor — no grey-market imports.
- Lifetime Limited Warranty: Factory warranty covers defects in materials and workmanship over the product lifetime. Reduces long-term replacement risk on infrastructure components.
The TSS2 backplane is the foundational component of any Trove2 installation. Unlike distributed power supplies that scatter wiring and monitoring across a facility, the TSS2 consolidates power delivery into one intelligent, supervised chassis. This matters operationally because it centralizes alarm reporting, battery status monitoring, and AC failure detection — critical for access control and video surveillance continuity in facilities where downtime costs money.
Deployment scenarios include multi-door access control systems where each door reader, badge validator, and electronic lock requires supervised power; surveillance infrastructure where IP cameras and NVRs share a common battery-backed supply; and integrated security deployments where access, video, and emergency communication systems coexist on the same power backbone. The modular design accommodates each scenario without requiring a custom power architecture for every site.
Integration with Trove2-compatible modules (power supplies, battery modules, failover cards, and distribution expanders) is straightforward: modules snap into standardized slots on the TSS2 backplane and automatically register within the system. No configuration files or manual addressing required. The backplane itself is platform-agnostic from a software perspective — it works with any control system (access control panels, legacy NVRs, IP-based supervisory systems) that interfaces with the installed modules.
From a total cost of ownership standpoint, the TSS2 backplane reduces field labor by consolidating power infrastructure. A single supervised chassis with intelligent fault reporting costs less to install, maintain, and monitor than managing multiple independent power supplies scattered across a building. Scalability also defers capital expenditure — you deploy what you need today and add capacity modules as the security system grows, rather than oversizing and paying for unused capacity upfront.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix TSS2 is a workhorse backplane that we've deployed in hundreds of medium-to-large access control and integrated security installations. The real value isn't in the backplane itself — it's in what it enables: modular expansion without complete system redesign. On a typical multi-zone facility deployment (retail chain with 20+ store locations, or corporate campus with dispersed buildings), the TSS2 architecture lets you standardize power distribution across every site while customizing module count and capacity per location. That consistency cuts installation time and reduces support overhead dramatically. Every technician knows the same backplane topology; every spare module is interchangeable; battery and power-supply upgrades don't require site-specific engineering. From an operational standpoint, we've seen centralized backplane monitoring catch battery degradation weeks before full failure — something that scattered PSUs hide until the moment they fail.
Technical Highlights:
- Standardized Modular Connectors: Keyed connectors eliminate polarity and seating errors. Modules physically cannot be installed incorrectly, which reduces on-site troubleshooting calls and field wiring mistakes — particularly valuable on large deployments where installation crews rotate and experience varies.
- Scalable Slot Architecture: The TSS2 chassis has a defined number of module slots. Adding capacity is a matter of inserting a compatible power module or expansion card into an empty slot — no cross-chassis wiring or external interconnects required. This simplicity is huge on retrofit projects where you're expanding into existing cable trays.
- Centralized Monitoring and Alarm Reporting: Battery status, AC line failures, and load distribution are visible from a single point. On access control systems, this means alarm contact closure can trigger facility notifications or intercom announcements without requiring distributed sensors at each PSU. We've built complete backup-power escalation sequences around TSS2 monitoring.
- US Manufacturing and Lifetime Warranty: Altronix builds the TSS2 domestically, and the lifetime limited warranty means you're not replacing backplanes due to component obsolescence. On a 15+ year facility infrastructure, that warranty continuity is meaningful cost control.
- Platform Consistency Across Trove2 Ecosystem: If your site runs multiple Trove2-based systems (power for access, power for video, power for intercom), every chassis uses the same backplane architecture, same connector language, same monitoring protocol. Training, spare inventory, and troubleshooting all benefit.
Deployment Considerations:
- The TSS2 is a backplane only — it is not a power supply or battery module in itself. You must procure Trove2-compatible power modules and battery modules to complete the system. A bare TSS2 without modules is just a chassis. Plan module procurement at the same time as backplane procurement to avoid installation delays.
- Module slots are fixed — don't assume unlimited expansion. Count your power budget (amps per load type) and verify that your module configuration fits the TSS2 slot count. Oversizing modules to compensate for limited slots is more cost-effective than chaining multiple backplanes via external interconnects.
- Backplane placement in the facility affects cable run length and voltage drop, especially for remote access control readers or outdoor IP cameras. A centralized UPS room is ideal; if that's not practical, a secondary TSS2 in a distributed location may be more economical than long low-voltage runs with voltage-drop mitigation.
- Trove2 module compatibility is strict — only modules rated for Trove2 will fit and function. Older Altronix power supplies or competing third-party modules won't integrate. Verify module compatibility with the Altronix tech team before ordering.
- Battery module expansion is straightforward, but extended-runtime scenarios (multi-hour backup) require large battery modules that consume significant chassis space and weight. On retrofit projects, confirm that the facility rack or mounting location can handle the thermal load and electrical infrastructure (AC branch circuit sizing, grounding) of a fully populated TSS2.
The TSS2 is the right choice for integrators building standardized, scalable power infrastructure across multiple locations or phased deployments. If your customer needs a simple, single-location, fixed-capacity power system, a standalone PSU may be more economical. For multi-site chains, campuses, or integrations where power infrastructure grows over time, the TSS2 backplane approach pays for itself in labor savings and operational simplicity. See the Altronix catalog for compatible Trove2 modules and power supply options.
