IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Out of stock
ACTi

SKU: PMAX-1021

Acti PMAX-1021 Flush Mount for E78

Flush-mount bracket for Acti E78 2MP camera with PoE power
- Designed for E78 2MP camera; ceiling, wall, or rack installation
- Single PoE (802.3af) connection eliminates separate power wiring
- Pendant and rack-mount configurations for flexible deployment options
Special Order · Ships in 2-3 weeks

$147.99

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-1027

Acti PMAX-1027 Flush Mount for A61 A62 A8x Series

Flush mount bracket for Acti A61, A62, A8x series PoE cameras
- Recessed in-ceiling installation hides camera for clean aesthetic
- PoE power support eliminates need for separate electrical runs
- Metal bracket assembly secures 2MP cameras in commercial spaces
Special Order · Ships in 2-3 weeks

$81.99

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-1200

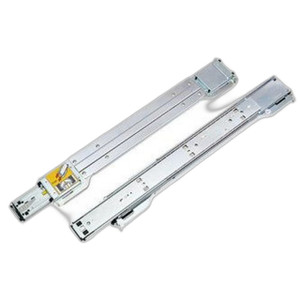

Acti PMAX-1200 19-Inch Rackmount Rails

19-inch rackmount rails for ACTi NVRs with tool-free sliding access
- Fits INR-410, INR-420, GNR-320, GNR-410 network video recorders
- Steel rails with sliding drawer mechanism for quick maintenance access
- Includes rail pair and mounting hardware for standard 19-inch racks
Special Order · Ships in 2-3 weeks

$315.99

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-1201

Acti PMAX-1201 26' Rackmount Sliding Rails

26" sliding rails for Acti INR-410/420 NVRs in standard 19" racks
- Pair of 26" rails with installation hardware for quick rackmount setup
- Compatible with Acti INR-410 and INR-420 network video recorders
- Standard 19" rack mounting for flexible equipment positioning
Special Order · Ships in 2-3 weeks

$402.99 $384.99 Save $18.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-1202

Acti PMAX-1202 19" Rackmount Rails

19" rackmount rails for Acti ENR-180/180P/190 NVR systems
- Fits Acti ENR-180, ENR-180P, and ENR-190 compact network recorders
- Standard 19" rack mounting for efficient data center deployment
- PoE-powered compatible NVRs reduce cabling and infrastructure needs
Special Order · Ships in 2-3 weeks

$156.99

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-1300

Acti PMAX-1300 Ceiling Bracket for B4x

Ceiling bracket for Acti B4x 2MP cameras with PoE+ support
- Mounts B4x series 2MP cameras to ceiling or rack in indoor spaces
- PoE+ powered—no separate power lines needed for installation
- Supports both ceiling and rack configurations for flexible deployment
Special Order · Ships in 2-3 weeks

$81.99

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-1400

Acti PMAX-1400 Mount Kit

Wall and rack mount kit for Acti D5x, D9x, E5x, E9x cameras
- Supports both wall and rack mounting configurations for flexible deployment
- Compatible with D5x, D9x, E5x, E9x, and E9xx/M series camera models
- Designed for professional security integrator installations and standard setups
Special Order · Ships in 2-3 weeks

$41.99

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-1402

Acti PMAX-1402 Mount Kit

Mount kit for Acti A61, A62, A71, A91, A92, Z91 cameras
- PoE (802.3af) powered—no separate power infrastructure needed
- Wall and standard deployment mounting with complete hardware included
- Compatible with 2MP Acti camera models for cost-effective surveillance
Special Order · Ships in 2-3 weeks

$54.99

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-1403

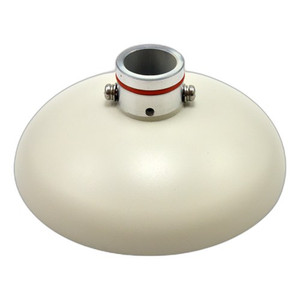

Acti PMAX-1403 Ceiling Mount for Z950 Z952

Ceiling mount bracket for Acti Z950/Z952 cameras with PoE power
- Mounts Z950 and Z952 2MP cameras directly to indoor ceilings
- PoE (802.3af) powered—no separate power wiring required at mount
- Metal construction for secure, stable camera positioning
Special Order · Ships in 2-3 weeks

$75.99

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX080310PC

Acti PMAX080310PC 25 Gang Box Converter

25-channel rack converter with 6MP H.264 and 850nm IR
- 25 channels in standard 19-inch rack mount for distributed surveillance
- 6MP video capture with H.264 compression and 850nm infrared day/night
- ONVIF-compliant output compatible with centralized VMS platforms
Special Order · Ships in 2-3 weeks

$83.99 $80.99 Save $3.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMIC-0100

Acti PMIC-0100 Active Omnidirectional Microphone

360° omnidirectional microphone for Acti IP cameras, PoE powered
- Omnidirectional pickup captures audio across 360 degrees for multi-directional monitoring
- PoE (802.3af) power eliminates separate cables and simplifies network integration
- Line-in audio support connects external audio sources to Acti camera systems
Special Order · Ships in 2-3 weeks

$91.99 $87.99 Save $4.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMMC-0200

Acti PMMC-0200 SanDisk 32GB MicroSDHC Memory Card

32GB MicroSDHC Class 10 card for Acti thermal cameras
- Class 10 sustained write performance for continuous surveillance recording
- 32GB capacity for extended on-device storage in PoE camera systems
- Direct compatibility with Acti thermal camera microSD card slots
Special Order · Ships in 2-3 weeks

$70.99 $67.99 Save $3.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMMC-0301

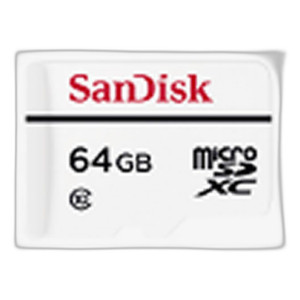

Acti PMMC-0301 SanDisk 64GB MicroSDXC Memory Card

64GB microSD Class 10 card for Acti surveillance edge recording
- 64GB capacity for continuous or event-triggered video storage on compatible Acti IP cameras and NVRs
- Class 10 speed class sustains write performance required for reliable video recording
- MicroSD form factor works with standard card readers for offsite evidence review and archival
Special Order · Ships in 2-3 weeks

$104.99 $99.99 Save $5.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMMC-0500

Acti PMMC-0500 Kingston 256GB MicroSDXC Memory Card

256GB Kingston MicroSDXC for ACTi IP cameras and NVRs
- Class 10 UHS-1 card maintains continuous video streaming without frame loss
- 256GB capacity supports extended local recording across distributed camera deployments
- Compatible with ACTi IP cameras and network video recorders for expandable storage
Special Order · Ships in 2-3 weeks

$211.99 $202.99 Save $9.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PPBX-0011

Acti PPBX-0011 Power Adapter AC 100–240V Universal

Universal 12V PoE adapter for ACTi cameras, wall or rack mount
- AC 100–240V input with DC 12V PoE 802.3af output for global deployments
- Wall bracket or 19" rack mount options for flexible installation configurations
- Universal ACTi connector compatible with IP cameras and network devices
Special Order · Ships in 2-3 weeks

$68.99

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PPBX-0016

Acti PPBX-0016 Power Adapter AC 100-240V

Universal PoE adapter for Acti cameras, AC 100–240V input
- 12V/5A output with universal connector for broad device compatibility
- PoE 802.3af standard supports Acti A950 cameras and mixed PoE systems
- Global voltage range AC 100–240V eliminates region-specific power concerns
Special Order · Ships in 2-3 weeks

$141.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.
