IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Add to Cart The item has been added
2N

SKU: 02318-001

2N NVT PL-08 Network Switch Medium Security - 02318-001

Medium-scale security switch with dual adapters for camera and access-control traffic isolation
- Dual network adapters segregate camera streams from reader/intercom signaling to reduce latency
- H.265 pass-through and H.264 compatibility handle continuous IP camera bandwidth demands
- Enterprise-grade platform sized for 20–50 cameras plus access-control devices without oversizing costs
In stock · Ships same business day

$1,139.00 $1,120.99 Save $18.01

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: CMS-200

Acti CMS-200 1600-Channel 1-Bay Rackmount Standalone

1600-channel rackmount NVR with thermal imaging and H.265 compression
- Thermal + 850nm infrared night vision for perimeter and industrial monitoring
- H.265, H.264, MJPEG compression with Video Motion Detection analytics
- PoE-powered 1-bay rackmount with synchronized audio recording capability
Special Order · Ships in 2-3 weeks

$7,270.99 $6,953.99 Save $317.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: LALPR100

Acti LALPR100 ALPR License

Per-channel ALPR license for Acti camera networks, annual subscription
- Automatic license plate recognition on compatible Acti network cameras
- Annual per-channel subscription model; multiple licenses scale with deployment
- PoE-powered integration with H.264 video compression and day/night operation
Special Order · Ships in 2-3 weeks

$2,442.99 $2,336.99 Save $106.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: LCDP1003

Acti LCDP1003 3rd Party Corporate License

Corporate license for third-party cameras on Acti GNR/INR NVRs
- Integrates non-Acti IP cameras into Acti recording infrastructure
- Multi-site enterprise scope with centralized management via GNR/INR
- Requires compatible Acti NVR hardware for deployment
Special Order · Ships in 2-3 weeks

$159.99 $152.99 Save $7.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: LCMS2000

Acti LCMS2000 CMS License

CMS 2 channel license for up to 64 simultaneous playback streams
- Supports unlimited NVR servers across networked deployments
- H.264 compression for efficient video stream management
- Single-channel license module for ACTi CMS 2 platform
Special Order · Ships in 2-3 weeks

$40.99 $38.99 Save $2.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: MDS-100

Acti MDS-100 Wireless Mini Media Display Station

Wireless thermal display station with PoE power for security integration
- Thermal imaging output with PoE (802.3af) eliminates dedicated AC wiring
- Pole and rack mount options for standalone or integrated system deployment
- Broadcom BCM2837 processor with 3.5mm audio line-out connectivity
Special Order · Ships in 2-3 weeks

$858.99 $820.99 Save $38.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PIOC-0200

Acti PIOC-0200 USB to RS-232 Serial Converter Cable

USB-to-RS-232 serial converter for Acti thermal imaging systems
- USB 2.0 to DB-9 RS-232 interface connects legacy serial devices
- Compatible with Acti thermal imaging camera installations
- Enables serial communication for device control and configuration
Special Order · Ships in 2-3 weeks

$83.99

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PLEN-0101

Acti PLEN-0101 4.2mm Fixed Focal Length Lens

4.2mm fixed lens with f/1.8 aperture and day/night for Acti cameras
- Manual focus adjustment allows field tuning after installation
- PoE (802.3af) powered—no separate power lines required at mount
- 8MP resolution support with IR night vision across lighting conditions
Special Order · Ships in 2-3 weeks

$33.99 $31.99 Save $2.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PLEN-0119

Acti PLEN-0119 2.8mm Fixed Lens

CS-mount 2.8mm fixed lens for 2MP Acti cameras with 850nm IR
- 2.8mm focal length with F2.0 fixed iris for consistent indoor framing
- 850nm infrared support for night vision operation on compatible bodies
- PoE (802.3af) powered; works with 1/3" CS-mount Acti camera platforms
Special Order · Ships in 2-3 weeks

$39.99 $37.99 Save $2.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PLEN-0131

Acti PLEN-0131 Varifocal Lens 3.3-9mm

3.3-9mm varifocal lens for 2MP day/night surveillance
- Manual focus adjustment optimizes image sharpness for fixed installations
- 3.3-9mm varifocal range covers wide to narrow viewing angles
- Compatible with IR-enabled 2MP cameras for 24/7 monitoring
Special Order · Ships in 2-3 weeks

$79.99 $76.99 Save $3.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PLEN-4101

Acti PLEN-4101 1.9mm Fixed Focal Lens

1.9mm fixed lens for Acti 8MP cameras with wide-angle coverage
- 1.9mm focal length with F2.8 fixed iris for consistent performance
- Wide-angle field of view ideal for large indoor monitoring areas
- PoE power integration simplifies installation without separate power runs
Special Order · Ships in 2-3 weeks

$72.99 $69.99 Save $3.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-0104

Acti PMAX-0104 Indoor/Outdoor Extension Tube

Extension tube for Acti cameras with PoE power, indoor/outdoor rated
- PoE (802.3af) powered—no extra wiring needed for indoor or outdoor setup
- Recessed mounting support fits Acti multi-sensor and fixed camera systems
- Outdoor-rated housing handles both interior and exterior deployment environments
Special Order · Ships in 2-3 weeks

$289.99 $276.99 Save $13.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-0110

Acti PMAX-0110 Indoor Mount Kit for KCM-8111

Ceiling/wall mount kit for KCM-8111 PTZ camera with PoE power
- Single PoE (802.3af) connection powers camera and eliminates extra wiring
- Designed for Acti KCM-8111 PTZ systems in indoor controlled environments
- Supports 2MP resolution with integrated structural support for secure mounting
Special Order · Ships in 2-3 weeks

$81.99

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-0112

Acti PMAX-0112 Extension Tube

Extension tube for D/E-series camera positioning and reach
- PoE-powered—no auxiliary supply needed for networked deployment
- Compatible with Acti D5x, D9x, E5x, E9x, and E9xx/M cameras
- Rack-mount design for flexible indoor surveillance installations
Special Order · Ships in 2-3 weeks

$91.99 $87.99 Save $4.00

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-0115

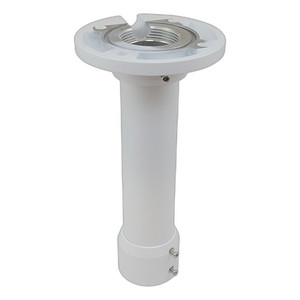

Acti PMAX-0115 Pendant Mount for Z950

Pendant ceiling mount for Acti Z950 with PoE power
- Ceiling-suspended pendant configuration for indoor deployments
- PoE (802.3af) powered—no separate power infrastructure needed
- 2MP resolution compatible with Z950 camera system
Special Order · Ships in 2-3 weeks

$81.99

Add to Cart
The item has been added
Compare

Out of stock
ACTi

SKU: PMAX-0127

Acti PMAX-0127 Mount Kit

19-inch rack mount for Acti 20MP surveillance cameras
- Fits Z83, Z84, A811, A818 camera models in standard equipment racks
- Organized cable routing design for centralized security deployments
- Compact 152mm × 74mm form factor, 1.8 lb white steel construction
Special Order · Ships in 2-3 weeks

$137.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.
