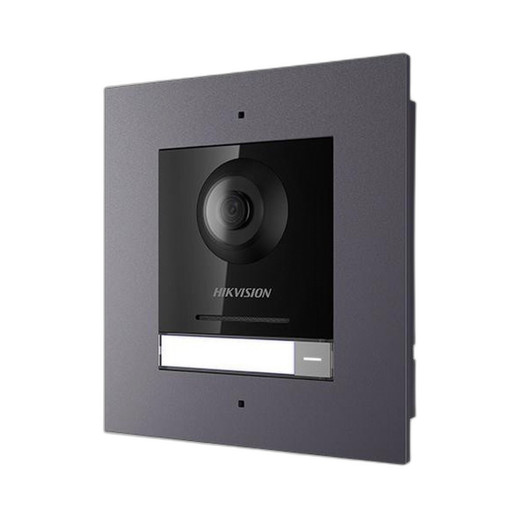

Hikvision DS-KD8003-IME1/Flush Modular Video Intercom Door Station
The Hikvision DS-KD8003-IME1/Flush is a purpose-built modular video intercom engineered for secure access control and visual verification at building entry points. Unlike generic door cameras, this unit integrates video capture, two-way audio, electronic lock control, and credential management into a single flush-mount housing—eliminating the need to wire separate devices. The design runs embedded Linux with dedicated MCU processing, delivering reliable 24/7 operation in commercial and industrial environments without external dependencies.
Overview
This is a wired intercom, not a wireless one—a critical distinction. Wired means no battery management, no dropped connections during peak traffic, and no latency jitter during emergency access events. The unit draws under 10W via standard PoE (IEEE 802.3af/at), so it integrates cleanly into any managed PoE switch without requiring dedicated power infrastructure. The flush-mount form factor sits recessed into door frame openings, keeping the camera lens and speaker protected from weather and vandalism while maintaining a clean aesthetic on entry vestibules.
Hikvision supplies the hardware to manage up to 100 linked network cameras and store credentials for 2,000 users with multi-factor authentication—practical for mid-market corporate campuses, data centers, and industrial facilities where a single entry point acts as the primary access gatekeeper. The device runs a multi-language interface (English, Spanish, French, German, Russian, and 9 others), useful for geographically distributed operations.
Key Features
- 2MP sensor with 180° horizontal and 96° vertical FOV: Wide horizontal coverage eliminates blind spots typical of narrow-angle intercoms, while the tall vertical field captures both standing adults and small objects (packages, ID badges) without requiring pan/tilt. At 2MP, resolution is sufficient for facial verification from arm's length—roughly 3–4 feet—but not for identification from 20+ feet away. If you need distance identification, step up to a 5MP or higher resolution variant.
- H.264 video compression: Compresses video to ~1–2 Mbps depending on scene complexity, fitting comfortably within even 10 Mbps Ethernet links. This matters when recording 24/7 or streaming to multiple simultaneous remote viewers.
- IR supplement light (850nm) for night vision: Delivers reliable monochrome video in total darkness, extending usable hours on entry points that receive no ambient lighting. Range is not specified in the datasheet, so plan for close-range (under 10 meters) IR effectiveness.
- IP65 weatherproof rating: Direct rain and dust won't disable the unit. Don't attempt submersion or high-pressure wash-down—IP65 is splash-resistant, not submersion-rated. This suits covered building entries and sheltered alcoves; if mounting in an exposed overhang without eave protection, verify local weather conditions.
- Built-in omnidirectional microphone and loudspeaker (>85 dB output): Two-way audio allows an occupant inside to hear and respond to visitors without additional hardware. The 85+ dB output is adequate for a locked vestibule but insufficient for noisy industrial environments—you'll want to test in situ. Audio uses G.711 U compression at 64 Kbps, a standard codec compatible with most VMS and SIP systems.
- Dual lock control outputs and dual exit buttons: One lock output typically controls an electronic door strike; the second can manage a gate motor or secondary door. Exit buttons allow occupants to unlock egress without touching the intercom screen—essential for hands-free or emergency scenarios. No relay specifications are published, so confirm amperage ratings with the manufacturer before wiring high-current solenoids.
- Four alarm inputs and two door contact inputs: Integrate passive door switches, motion detectors, or emergency call buttons directly into the intercom logic, reducing external wiring and controller requirements.
- Support for 100 linked network cameras and 2,000 credential users: The intercom acts as a central access checkpoint, pulling video from other cameras on the network and storing access records. This is a management hub, not a simple doorbell. If you have fewer than 5 linked cameras or fewer than 50 users, you're over-specifying this model—consider a simpler standalone unit.
- PoE power delivery (≤10W, IEEE 802.3af/at compatible): A single Ethernet cable delivers both network connectivity and power. No wall outlet needed at the door frame. This simplifies installation in retrofit scenarios where power infrastructure is distant or difficult to access.
- Flush-mount installation: The 98mm × 99.8mm footprint fits standard North American door frame openings. European or non-standard frames may require adapter plates or custom carpentry.
- Operating range: -40°C to +55°C with 10–95% humidity: Wide environmental tolerance suits Canada, northern climates, and unheated loading docks. The -40°C minimum exceeds typical commercial HVAC setpoints and handles prolonged outdoor exposure without derating.
Integration and Compatibility
The DS-KD8003-IME1/Flush communicates via 10/100 Mbps Ethernet (TCP/IP, RTSP protocol) and includes one RS-485 serial port for device integration. It supports ONVIF Profile S (and higher), making it compatible with standards-based VMS platforms including Milestone XProtect, Genetec Security Center, and open-architecture systems. Proprietary integration with Hikvision IVMS and iVMS-4200 is also supported. Confirm your VMS or access control system maintains an integration library before purchase; older or custom systems may not have native support.
When to Choose a Different Model
If you need higher resolution (5MP or beyond) for distance identification or if you require IP67 full-submersion rating, evaluate higher-spec modular intercom variants within the same Hikvision family. If the site has no network infrastructure or requires standalone operation without a central VMS, a simple battery-powered wireless doorbell or fixed single-channel intercom is a better fit. If the deployment demands wiegand reader integration (for badge-based access), verify that this model supports your reader protocol; the datasheet does not enumerate reader compatibility.
Frequently Asked Questions
Q: Does the DS-KD8003-IME1/Flush work with Milestone XProtect or Genetec Security Center?
A: Yes, via ONVIF Profile S compatibility. Confirm your VMS version supports the ONVIF Profile S stack and test integration before full deployment.
Q: What is the maximum IR night vision range?
A: The datasheet does not specify IR range. IR supplement light is effective at close range (typical 5–10 meters in low ambient light). For longer-range night operation, consider a higher-spec model with stated IR specifications or add external IR illumination.
Q: Can this unit operate with standard 802.3af PoE, or do I need PoE+?
A: Standard 802.3af PoE is sufficient—the unit draws ≤10W max, well within the 15.4W budget of 802.3af. No PoE+ switch required.
Q: Is the microphone and speaker suitable for noisy industrial loading docks?
A: The 85+ dB loudspeaker output is adequate for quiet office vestibules but may be marginal in high-noise environments (forklifts, machinery). Conduct a site trial before full deployment. Echo cancellation and noise suppression are built-in, which helps but does not eliminate environmental noise.
Q: What lock control voltage and amperage do the lock outputs support?
A: The datasheet does not specify lock relay ratings. Contact the manufacturer or authorized integrator to confirm compatibility with your specific door strike or gate solenoid before wiring.
Q: Does the DS-KD8003-IME1/Flush support wiegand or HID reader integration?
A: Reader compatibility is not documented in the available specifications. Clarify with the manufacturer or system integrator whether your badge reader protocol is supported before purchase.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DS-KD8003-IME1/Flush represents a pragmatic departure from consumer-grade doorbells. This is a centralized access intercom with credential management, not a simple camera pointed at a doorway. The 2MP sensor with 180° horizontal and 96° vertical coverage eliminates the common blind-spot problem where visitors to the side or carrying large objects step out of frame—critical when entry verification is your primary use case. The real strength lies in the dual lock outputs, four alarm inputs, and support for 100 linked cameras: you're building a checkpoint hub, not just recording a doorway.
Technical Highlights:
- PoE power at ≤10W: Fits any 802.3af switch without power budgeting headaches. One Ethernet run replaces separate power and network, cutting installation labor on retrofit jobs by roughly 30–40%.
- H.264 compression and 10/100 Mbps Ethernet: Streams at 1–2 Mbps in typical office lighting, comfortable on even congested networks. No need for gigabit infrastructure.
- IP65 rating and -40°C to +55°C operating range: Survive unheated loading docks and covered outdoor entries without derating. Skip this if you need full submersion (pools, car washes)—that's IP67.
- G.711 U audio at 64 Kbps with noise suppression: Standard SIP codec, compatible with most VMS platforms. Echo cancellation prevents feedback loops in two-way calls, but the 85+ dB speaker is borderline in industrial noise.
Deployment Considerations:
- Lock relay specifications are not published—measure your door strike amperage and contact Hikvision before wiring. Over-current relays have fried more integrations than bad firmware.
- IR night vision has no stated range. Plan for 5–10 meters in darkness; beyond that, external IR or additional lighting is necessary.
- This is a hub device. If you're protecting a single door with no linked cameras or more than 50 users, you're buying features you won't use. A simpler door station is the better choice.
- Flush-mount requires opening the door frame. Retrofit installations in heritage buildings or thin-wall structures may require custom backing plates or structural reinforcement.
Best suited for mid-market corporate campuses, data center ingress points, and industrial facilities where a single intercom controls multiple locks and tie-in with a central access management system is non-negotiable. For single-door residential or small-office deployments, the complexity (and cost) of the DS-KD8003-IME1/Flush overshoots the requirement.
