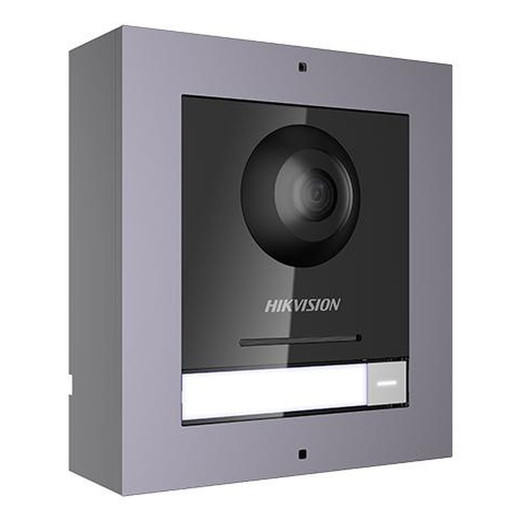

Hikvision DS-KD8003-IME1/Surface 2MP Modular Video Intercom
The Hikvision DS-KD8003-IME1/Surface is a surface-mount modular video intercom engineered for secure entry point access control and two-way communication in outdoor environments. Compact form factor, 2MP video clarity, and enterprise-grade I/O make this suited for corporate offices, multi-tenant facilities, government buildings, and retail access points where visitor identification and integrated door management are non-negotiable.
Key Features
- 2MP wide-angle video (180° H × 96° V FOV): Eliminates blind spots at entry points—critical in high-traffic or multi-door facilities where a narrow lens would miss tailgating or package placement. The extra horizontal coverage reduces the need for overlapping camera deployment.
- IR night vision with infrared supplement lighting: Captures visitor detail 24/7 without requiring separate exterior lighting. Essential for facilities operating after sunset or in low-ambient environments; trades off slight image noise in deep darkness for always-on identification capability.
- H.264 video compression: Reduces bandwidth and storage overhead compared to uncompressed or MJPEG streams. Pair this with an NVR or VMS to keep recording costs manageable, especially when linking this station to dozens of networked cameras.
- G.711 U audio at 64 Kbps with adjustable volume: Built-in microphone includes noise suppression and echo cancellation—real-world benefit is clearer two-way conversation outdoors where wind and ambient traffic noise are present. Integrated loudspeaker outputs over 85 dB at 20 cm, sufficient for visitor/staff communication across typical entry vestibules without secondary intercom hardware.
- IP65 weatherproof rating: Direct rain, dust, and splashing won't damage the unit, but full submersion (high-pressure washdown, flooding) exceeds this rating. Suitable for covered entries, overhangs, or standard weather; not for hose-down facilities or zones prone to standing water.
- Power over Ethernet (PoE): Single cable delivers both data and power—4 W consumption means standard 802.3af PoE (15.4 W available) poses no strain. Eliminates separate 12 VDC or AC power runs, simplifying installation in retrofit scenarios.
- Modular design: Surface-mount enclosure accepts optional reader modules (card, PIN, biometric) for flexible authentication. Support for up to 500 linked network cameras and 2000 user profiles means this device scales as a hub in large multi-site or campus deployments.
- Dual lock control outputs and dual door contact inputs: Manage two independent doors or provide fail-safe + fail-secure redundancy on a single door. Two exit buttons and four alarm inputs give integrators flexibility for panic, tamper detection, and auxiliary sensor integration.
- Embedded Linux OS with 256 MB RAM, 16 MB ROM: Firmware updates are supported; the OS is proven stable in outdoor field conditions. No Windows licensing complications, and the compact memory footprint keeps boot times acceptable.
- Connectivity (10/100 Mbps Ethernet, TCP/IP, RTSP, RS-485): RTSP compatibility ensures seamless integration with Hikvision VMS platforms and third-party ONVIF-compliant systems. RS-485 serial support enables device daisy-chaining for multi-unit site deployments without exhausting network switch ports.
- Operating range -40°C to +55°C, 10–95% humidity: Cold climates won't freeze circuitry; hot sun won't throttle performance. Humidity tolerance covers coastal salt air and tropical environments. Extended range reduces the need for enclosure heaters or coolers in most geographies.
Integration & Compatibility
This intercom integrates with Hikvision IP cameras and compatible NVRs via RTSP and TCP/IP protocols. The modular architecture supports optional reader modules (sold separately), allowing single-unit upgrades from badge-only to multi-factor authentication without swapping hardware. For deployments requiring PoE simplification, verify your PoE switch has available ports and sufficient power budget—a 24-port managed switch with 95W PoE capacity easily accommodates 12–15 of these units plus cameras.
The 500-camera link capacity and 16 holiday group support position this station as a hub in enterprise access control systems. If your site runs Milestone XProtect, Genetec, or other third-party VMS platforms, confirm RTSP connectivity before purchase—most modern systems support it, but integration depth varies by platform.
When to Choose a Different Model
If you require recessed mounting (surface mount only here) or IP67 rating (submersion tolerance), consider higher-tier variants in the video intercom category. If multi-factor biometric authentication is mandatory and you wish to avoid optional reader modules, explore pre-built biometric intercom models in the Hikvision line. For small single-door residential applications, the modular complexity may be overkill—simpler, lower-cost intercoms exist for that segment.
Dimensions & Specifications
- Unit dimensions: 98 × 99.8 × 43.9 mm; Weight: 375 g (unit only—exclude mounting bracket and connectors)
- Video compression: H.264
- Audio compression: G.711 U, 64 Kbps
- Connectivity: 10/100 Mbps Ethernet, TCP/IP, RTSP, RS-485
- Power: PoE (IEEE 802.3af), 4 W max consumption
- Alarm I/O: 4 inputs, 2 exit buttons, 1 tamper input; 2 lock outputs, 2 door contact inputs
Frequently Asked Questions
Q: Does the DS-KD8003-IME1/Surface support two-way audio and video simultaneously?
A: Yes. The built-in microphone, echo cancellation, and 85+ dB loudspeaker enable concurrent audio and video transmission. Audio quality depends on network bandwidth (64 Kbps codec) and ambient noise levels outdoors; echo cancellation reduces feedback in confined spaces like vestibules.
Q: Can I add card readers or biometric modules to this intercom?
A: Yes. The modular design supports optional reader modules (card, PIN, biometric sold separately). Readers connect to the DS-KD8003-IME1/Surface via the I/O connectors and are managed through the same firmware configuration interface.
Q: What's the maximum distance I can run Ethernet cable to this device if powered via PoE?
A: Standard Ethernet cable runs up to 100 meters (328 feet) without signal loss. PoE power delivery over longer runs may experience voltage drop; consult your PoE injector or switch datasheet if you need runs beyond 90 meters. Short runs (under 50 meters) to a PoE switch pose no practical constraint.
Q: Is the DS-KD8003-IME1/Surface compatible with non-Hikvision VMS platforms?
A: The device supports RTSP and TCP/IP, which are standard protocols. Compatibility depends on your VMS platform's RTSP implementation. Hikvision iVMS/IVMS-4200 and most major platforms (Milestone XProtect, Genetec, etc.) support RTSP video streams. Confirm your VMS documentation or contact the platform vendor for audio stream compatibility—not all third-party systems fully integrate two-way audio from RTSP sources.
Q: How many users and access rules can this intercom manage?
A: The device supports up to 2000 user profiles and up to 500 linked network cameras. User management is typically handled through the VMS or a separate access control server; this intercom acts as an entry point that validates credentials and signals lock control outputs based on rules configured upstream.
Q: What's the warranty on the DS-KD8003-IME1/Surface?
A: Warranty information is not specified in the available documentation. Contact the distributor or Hikvision support for warranty terms and coverage details.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DS-KD8003-IME1/Surface stands apart in the modular intercom segment through its exceptional optical coverage—180° horizontal FOV eliminates the blind-spot problem common to narrower lens designs, and the 2MP resolution delivers crisp visitor detail even in shadow. The built-in H.264 compression and dual audio codecs (G.711 microphone input, echo-cancelled loudspeaker output) are engineered for high-noise outdoor environments where cheap intercoms fail to achieve intelligible conversation.
Technical Highlights:
- 180° H × 96° V field of view: Single-unit coverage of typical entry vestibules and multi-door corridors without overlap gaps. Reduces the need for auxiliary fisheye or secondary narrow-angle cameras at the same entry point.
- Dual lock outputs + dual door contact inputs: Enable fail-safe/fail-secure redundancy or independent two-door management from a single station—critical in facilities where mechanical button failure on a second door would require a second intercom unit.
- PoE power (4 W max): Fits comfortably within 802.3af budgets. A 24-port 95W PoE switch can easily power 15+ of these units alongside standard IP cameras, eliminating separate 12 VDC or AC conditioning runs.
- RS-485 serial support: Allows daisy-chaining multiple intercoms without consuming additional network switch ports—useful in large campuses or high-density entry points.
- Modular reader support: Upgrade from badge-only to multi-factor (card + PIN + biometric) without replacing the station hardware. Future-proofs the installation against shifting authentication policies.
Deployment Considerations:
- Surface-mount only—if your site demands recessed or flush-mount aesthetics, you'll need a different form factor or a custom enclosure adapter.
- IP65 rating handles normal outdoor weather, but not high-pressure washdown or prolonged standing water. Facilities with routine hose-down cleaning should specify IP67 alternatives.
- Audio quality outdoors depends on echo cancellation tuning and ambient noise. If the site is adjacent to a highway or busy loading dock, test audio intelligibility before final deployment; wind noise and traffic rumble can degrade clarity even with noise suppression enabled.
- The 2000-user profile limit is managed by the intercom's firmware; if your access control system provisions thousands of temporary or contractor credentials, confirm that the upstream VMS or access server can filter or batch-manage profiles sent to this device.
Position the DS-KD8003-IME1/Surface as a hub intercom in enterprise campuses, multi-tenant office buildings, and retail or government facilities where modular authentication, wide visual coverage, and proven Hikvision reliability are non-negotiable. The dual lock outputs and extensive I/O make it particularly strong for facilities managing multiple doors from a single station or requiring fail-safe backup logic.
