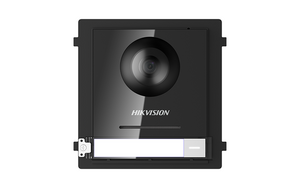

Hikvision DS-KV8413-WME1 2MP Outdoor Video Intercom Door Station
The Hikvision DS-KV8413-WME1 is a professional-grade outdoor video intercom door station designed for secure access control and visitor management in commercial and industrial environments. This IP-based system delivers 2MP resolution video combined with integrated audio processing and flexible access control outputs, creating a comprehensive entry management solution that integrates seamlessly with existing security infrastructures.
Key Features
- 2MP 1920 × 1080 resolution main stream — delivers sufficient detail for facial recognition and visitor identification at typical entry distances without excessive bandwidth or storage overhead. Sub-stream at 720 × 480 allows adaptive bitrate streaming to conserve bandwidth during low-traffic periods.
- 129° horizontal field of view — captures the full entry zone including approaches and package areas in a single frame, eliminating blind spots common with narrower-angle intercoms.
- IR supplement lighting with day/night capability — maintains clear video in darkness without external spotlights. Especially valuable for covered entryways or after-hours monitoring where ambient light is absent.
- H.264, H.265, and MJPEG codec support — H.265 reduces bandwidth and storage consumption by roughly 40–50% compared to H.264 on static scenes (typical for door stations), meaningful when recording 24/7 or integrating with storage-constrained NVRs. Fallback to H.264 ensures compatibility with legacy VMS platforms.
- Power over Ethernet (IEEE 802.3af standard) — draws under 13W maximum, so it operates from any standard PoE-enabled switch port without requiring a separate power supply or conduit. Simplifies rough-in wiring during installation or retrofit.
- IP65 weatherproofing and IK08 vandal resistance — protects against rain, dust, and moderate impact in high-traffic or exposed locations. Not rated for full submersion (that requires IP67+), but handles direct spray and splash.
- Dual exit buttons and dual lock control outputs — manages multiple access points (e.g., main entrance and secondary door) without additional relay modules, reducing complexity and cost in multi-entry deployments.
- Two door contact inputs — integrates door sensors directly into the intercom for alarm reporting and audit logging of door open/close events.
- Professional audio with noise suppression and echo cancellation — two-way communication remains intelligible even in noisy environments (traffic, machinery, crowds), critical for entry screening and emergency coordination.
- Wide Dynamic Range (WDR) technology — balances bright sunlit areas against shadowed recesses in the same frame, solving the common problem of backlit or side-lit entry doors where standard cameras produce silhouettes.
- ONVIF compliance — integrates with any ONVIF-compatible VMS (Milestone, Genetec, Axis Camera Station, etc.), protecting capital investment and avoiding vendor lock-in.
Integration & Compatibility
The DS-KV8413-WME1 connects via 10/100 Mbps Ethernet over standard Cat5e/Cat6 cabling. TCP/IP and RTSP protocols ensure compatibility with open-architecture video management systems. Two-way audio ingress supports both microphone input and speaker output for full duplex communication from a remote console or mobile application. Exit button and relay outputs pair directly with standard electronic locks, card readers, and door controllers, eliminating the need for intermediate gateway devices in most installations.
Operating temperature range of −40°C to +55°C (−40°F to +131°F) supports deployment in unheated warehouses, outdoor loading docks, and refrigerated facilities. Humidity tolerance of 10%–95% non-condensing handles seasonal moisture without performance degradation.
When to Choose a Different Model
If your deployment requires higher resolution for license plate recognition or facial matching across multiple locations, consider a higher-megapixel variant in the Hikvision surveillance line. The DS-KV8413-WME1 is optimized for visitor identification at point-of-entry; long-distance recognition workflows may require 4MP or higher. For indoor-only reception areas with controlled lighting, an indoor intercom variant eliminates the weatherproofing premium and reduces power draw.
Frequently Asked Questions
Q: Does the DS-KV8413-WME1 support two-way audio from a remote smartphone or desktop?
A: Yes. The intercom streams audio via RTSP to any ONVIF-compatible VMS or mobile app that supports live video and two-way audio. Audio flows in both directions simultaneously (full duplex), allowing a receptionist to screen and communicate with visitors in real time.
Q: What's the maximum distance the IR illumination reaches?
A: The IR supplement lighting is designed for close-range entry monitoring (typical coverage within 3–5 meters). It maintains visibility in darkness but is not intended for perimeter surveillance at distance; use a dedicated infrared camera for longer-range night vision.
Q: Can the DS-KV8413-WME1 unlock multiple doors simultaneously?
A: Yes. The device provides two independent lock control outputs (relay outputs), each capable of triggering a separate electronic lock or strike plate. A receptionist or access control system can activate one or both outputs via the VMS or local control panel.
Q: Is the DS-KV8413-WME1 compatible with Milestone XProtect or Genetec Security Center?
A: Yes, via ONVIF Profile S. Both platforms support ONVIF-compliant devices. Consult your VMS integration guide for specific codec and stream configuration requirements.
Q: What's the bandwidth requirement for 24/7 recording?
A: At 2MP H.264, typical bitrate ranges from 1.5–3 Mbps depending on scene complexity and frame rate. H.265 encoding cuts this roughly in half. A single door station will not saturate a standard office network, but confirm your network switch and NVR support the resolution and codec before deployment.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DS-KV8413-WME1 represents a practical balance between essential entry surveillance and access control in a single device. The 2MP resolution paired with a 129° field of view is well-matched to typical entry scenarios where visitor identification and package tracking are the primary goals — you're not trying to read a badge 20 meters away, and the wide angle eliminates common blind spots at corners or side approaches. ONVIF compatibility is a real asset here; it means this intercom will integrate with whatever VMS platform your organization standardizes on, whether that's Milestone, Genetec, or an in-house custom system.
Technical Highlights:
- H.265 codec support: At 1920 × 1080, H.265 cuts storage and bandwidth consumption to roughly 50% of H.264 — material savings when you're archiving 24/7 door station footage for 90 days or longer across multiple sites.
- Dual lock control outputs: Most door stations force you to choose between controlling one door or buying a separate relay board. The DS-KV8413-WME1 provides two independent 12VDC relay outputs, eliminating that compromise in multi-entry facilities.
- PoE power draw under 13W: This device runs on any standard 802.3af switch port with headroom to spare, so you won't trigger priority alerts on power-budget monitoring or force prioritization decisions when adding cameras to an existing switch.
- WDR + IR supplement: Combined, these technologies handle the real-world problem of backlighting at entry doors — bright sun behind the visitor, shadows under an awning, or complete darkness after hours. You get usable video in all three scenarios without manual adjustment.
Deployment Considerations:
- The IR range is optimized for close-proximity coverage (3–5 meters). If your entry approach is longer than that, the IR will be supplementary only — confirm lighting conditions on site before deployment.
- Two-way audio quality depends on the microphone and speaker hardware on the receiving end (receptionist headset, office speaker, mobile device). The echo cancellation is effective in typical office environments but degrades in open loading docks or high-ambient-noise areas.
- The IK08 rating handles typical pedestrian impact (kicked, bumped) and weather exposure, but deliberate sledgehammer attacks or vehicle strikes will compromise the housing. For ultra-high-vandalism sites, specify IK10 or a protective cage.
This intercom works best in mixed-use commercial and light industrial facilities where you need simultaneous video surveillance, audio screening, and electronic lock control without deploying separate devices. Warehouses with controlled access, office receptions, data centers, and healthcare campuses are natural fits. For retail storefronts or public-facing venues, the 2MP resolution is borderline for detailed facial capture — upgrade to 4MP if your threat model emphasizes post-incident suspect identification.
