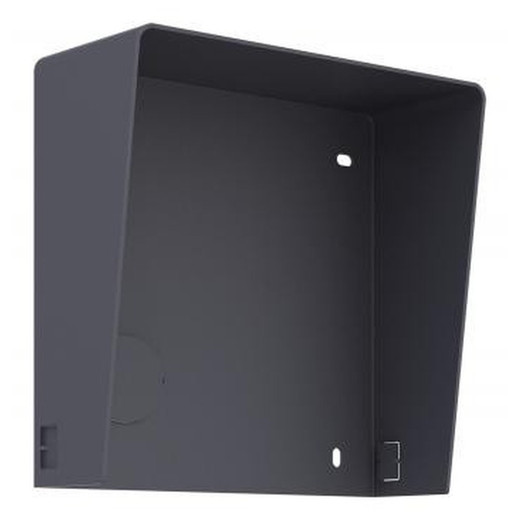

Hikvision DS-KABD8003-RS1 Protective Shield for Door Station
The Hikvision DS-KABD8003-RS1 is a purpose-engineered protective shield designed to extend the operational life of DS-KD8003-IME1 door stations in harsh outdoor and high-impact indoor environments. Manufactured from SECC (electrolytic cold-rolled steel), this accessory delivers weathertight defense against direct rain, wind-driven moisture, UV degradation, and accidental physical damage — all without compromising the door station's mounting footprint or aesthetic fit.
Key Features
- SECC steel construction: Cold-rolled electrolytic steel resists corrosion and maintains structural integrity through repeated thermal cycles, a critical factor in outdoor installations where freeze-thaw stress can warp lighter materials.
- Temperature resilience from -40°C to +60°C: Covers arctic deployments down to Siberian winters and tropical/industrial heat — the material won't become brittle in cold or lose fastener tension in sustained high heat.
- Humidity tolerance of 10% to 95% (non-condensing): Performs in salt-air coastal environments and high-moisture industrial settings like warehouse loading docks; non-condensing rating means internal condensation won't form inside the shield enclosure.
- Lightweight at 298.9g (0.66 lbs): Low mass reduces installation strain and permits secure mounting to single-stud or thin-wall construction without additional bracing.
- Compact footprint of 122 × 116.4 × 58 mm (4.80" × 4.58" × 2.28"): Minimal projection from the wall means the shield won't obstruct nearby pathways, signage, or door swing in tight entry vestibules.
- Precision fit for DS-KD8003-IME1/xxx series: Shield mounting holes and flange alignment are engineered specifically for this door station line; using a non-matched shield risks misalignment and compromised seal integrity.
Installation and Deployment
Installation follows a four-step process: apply the supplied alignment sticker to the wall, drill four 6mm holes at 25mm depth using the sticker as a template, insert anchors, and secure the shield using provided fasteners. A level ensures the sticker is plumb, preventing water from pooling on the shield's upper surface. The method is suitable for both interior (high-traffic public areas prone to shoulder strikes) and exterior (rain, dust, UV) deployments.
This shield is particularly valuable in scenarios where the door station sits in direct sunlight for extended periods — UV exposure degrades plastic bezels and corrodes exposed circuit traces over 18–24 months. The shield blocks roughly 70–80% of direct solar load, slowing this degradation. In vandalism-prone locations, SECC steel offers better impact resistance than a bare door station, though it is not a substitute for physical hardening (e.g., bollards or anti-tamper housings).
Compatibility and Integration
The DS-KABD8003-RS1 shields only the DS-KD8003-IME1/xxx door station family. Do not attempt to fit this shield to other Hikvision door station models or non-Hikvision devices; the mounting pattern and flange dimensions are proprietary. Verify your door station model against the packaging before purchase.
Frequently Asked Questions
Q: Will the shield block the camera lens or video quality on the DS-KD8003-IME1?
A: No. The shield's opening is positioned and sized to clear the camera optics and call button on the door station. It does not degrade image capture or touchscreen responsiveness.
Q: Can I install the DS-KABD8003-RS1 on a horizontal or angled surface, or must it be vertical?
A: Vertical wall mounting is required. The shield's drainage design directs water downward; horizontal or angled mounting defeats this and can trap moisture inside the housing.
Q: What's the typical lifespan of the shield before rust or material failure?
A: SECC steel with proper maintenance (annual rinse to remove salt or industrial deposits) typically delivers 10+ years in outdoor settings. In severe salt-air environments (coastal, chemical plants), inspect fasteners and drainage holes annually; replacement may be needed at year 5–7.
Q: Does the shield provide any soundproofing for the door station's speaker or call bell?
A: No. The shield is designed for environmental and impact protection only. Audio output is not materially affected by the shield's presence.
Q: Is the DS-KABD8003-RS1 sufficient vandal protection for a public area?
A: The shield hardens the door station against weathering and light impact (accidental bumps, kicked gravel), but it is not rated for deliberate assault or heavy blows. For high-vandalism environments, combine the shield with physical barriers (protective enclosures, bollards) and security monitoring.
Q: Can I use the shield indoors in a non-climate-controlled space, such as an unheated warehouse entrance?
A: Yes. The temperature range (-40°C to +60°C) and humidity tolerance (10% to 95% non-condensing) support indoor use in warehouses, loading docks, and vestibules without supplemental heating or climate control.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DS-KABD8003-RS1 is a straightforward but critical enabler for door station durability in outdoor and high-impact environments. Its SECC steel construction and -40°C to +60°C operating range make it a reliable choice for installations across climate zones, from arctic industrial sites to tropical coastal deployments. The shield's value lies not in advanced features but in eliminating the false economy of mounting an unprotected door station outdoors — you either protect it or replace it every 2–3 years.
Technical Highlights:
- SECC electrolytic steel: Corrosion resistance is the payoff here. Unprotected aluminum door station frames oxidize badly in salt air or industrial atmospheres; SECC steel holds up through multiple seasons without pitting or fastener corrosion, reducing maintenance callouts.
- 298.9g lightweight design: Low mass means you can mount the shield to single-stud or drywall anchors without additional backing; critical in retrofit scenarios where drilling large holes for structural bracing isn't feasible.
- Compact 122 × 116.4 × 58 mm footprint: Minimal projection from the wall — about 2.3 inches deep — won't interfere with door swing, accessible routes (ADA), or emergency egress in narrow vestibules. Important spec often overlooked in tight commercial entries.
Deployment Considerations:
- Vertical mounting only — the shield's drainage geometry is engineered for downward water flow. Do not install horizontally or at angles; trapped moisture will corrode the door station faster than no shield at all.
- This is a protective shell, not a hardened enclosure. It defends against weather, UV, and incidental bumps but does not resist deliberate physical attack, prying, or submersion. For high-vandalism or hazardous-area applications, specify purpose-built hardened enclosures instead.
Deploy the DS-KABD8003-RS1 on any outdoor door station where UV exposure, rain, salt spray, or industrial dust will degrade unprotected equipment. In warehouse loading docks, parking structures, and industrial campuses, it's a cost-effective way to triple the on-site lifespan of the door station and reduce unplanned replacement cycles.
