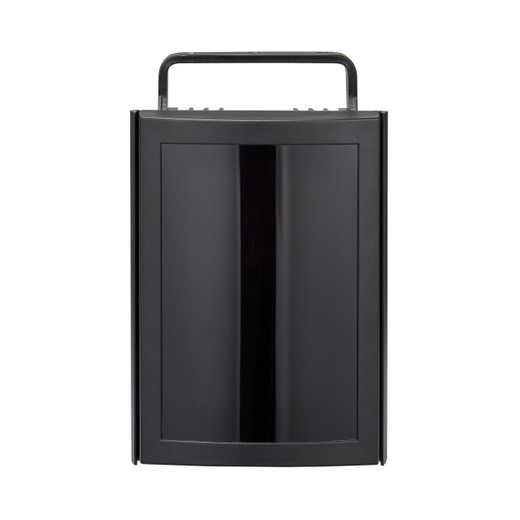

Hanwha SPI-50 IR Illuminator 200m

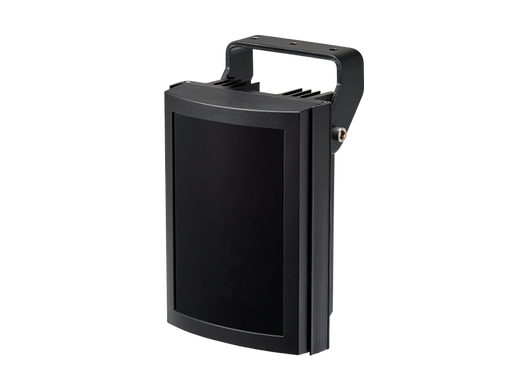

Hanwha SPI-50 IR Illuminator

The Hanwha SPI-50 IR Illuminator is a precision-engineered infrared light source designed to extend night vision surveillance capabilities to 200 meters. Purpose-built for integration with Hanwha thermal and low-light cameras, this weatherproof illuminator delivers consistent, targeted illumination in complete darkness, enabling 24/7 security coverage without compromise.

Key Features

• Extended IR Range: Delivers infrared illumination up to 200 meters (656 feet) for long-distance night surveillance
• Optimized Wavelength: 850nm infrared wavelength provides invisible illumination visible only to compatible IR cameras
• Focused Coverage: 25-degree IR angle ensures concentrated illumination with minimal light spillage and wasted energy
• Seamless Integration: Fully compatible with Hanwha TNU-6320 cameras and other supported Hanwha surveillance systems
• Rugged Construction: IP67-rated weatherproof housing withstands rain, dust, and harsh environmental conditions
• Wide Operating Range: Functions reliably from -40°C to +60°C (-40°F to 140°F) for deployment in extreme climates
• Simple Power: 24VAC power supply enables easy integration into existing security infrastructure

Technical Specifications

• IR Distance: 200 meters (656 feet)
• Wavelength: 850nm
• IR Angle: 25 degrees
• Power Supply: 24VAC
• IP Rating: IP67
• Operating Temperature: -40°C to +60°C
• Compatible Cameras: Hanwha TNU-6320

Applications

• Perimeter security and fence-line monitoring
• Parking lot and vehicle surveillance
• Warehouse and facility night-time monitoring
• Long-range outdoor security systems
• Critical infrastructure protection requiring extended night vision

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SPI-50 represents a smart investment for security integrators seeking to enhance thermal or night-vision camera systems. The 850nm wavelength is industry standard for covert IR illumination—invisible to the human eye but perfectly suited for surveillance cameras equipped with IR sensors. The 25-degree beam angle balances coverage width with intensity, critical for 200-meter range performance where beam divergence becomes a significant factor.

The IP67 rating and -40°C to +60°C operating range indicate this unit is engineered for demanding outdoor deployments, from arctic climates to desert installations. The 24VAC power requirement integrates cleanly into most professional security systems and eliminates the need for additional power conversion. Direct compatibility with the TNU-6320 ensures plug-and-play deployment without integration delays.
