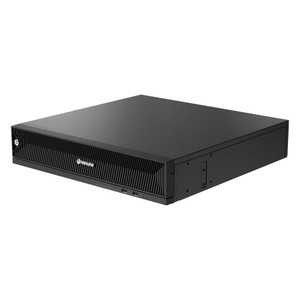

Hanwha XRN-6420RB2 64-Channel 8K Network Video Recorder

Hanwha XRN-6420RB2 64-Channel Network Video Recorder

The XRN-6420RB2 is a 64-channel network video recorder engineered for deployments where channel density and image resolution cannot be traded against each other. Built on Intel 12th-generation processor architecture, this NVR natively supports 32 MP camera resolution at 15 fps across all 64 channels using H.265 compression. That means you can record dozens of high-megapixel cameras simultaneously without sacrificing detail or requiring exotic network infrastructure to sustain the load.

Key Features

• 64-channel capacity with native 32 MP support at 15 fps: Record all 64 channels at 32 MP using H.265 compression without downscaling or transcoding. This eliminates the traditional trade-off between channel count and resolution—you get both simultaneously, not a choice between them. Useful when every camera feeds a high-resolution sensor and you cannot afford image degradation for compliance, facial recognition, or license plate capture.
• Flexible resolution and frame-rate downscaling: If you need higher frame rates or lower bandwidth, the XRN-6420RB2 intelligently downscales on a per-channel basis: 12 MP at 30 fps (32 channels), 8.3 MP at 30 fps (4 channels), 1080p at 30 fps (16 channels), 720p at 30 fps (32 channels), or D1 at 30 fps (all 64 channels). Pick the resolution that matches your monitoring priorities without re-encoding or wasting storage.
• 520 Mbps sustained recording bandwidth in all modes: In both distributed and RAID normal modes, the XRN-6420RB2 sustains 520 Mbps continuously. Critically, this bandwidth persists even during RAID degradation and rebuild—when a drive fails, the NVR continues recording at full fidelity, preventing data loss during the replacement cycle. Most recorders slow down under RAID rebuild; this one doesn't.
• Independent 200 Mbps playback bandwidth concurrent with recording: Operators can review archived footage in real-time while the system records without latency, frame drop, or starving the recording pipeline. A second operator searching historical video won't degrade live capture performance.
• H.265 video compression cuts storage consumption roughly in half compared to H.264: On a 24/7 operation recording dozens of cameras at high resolution, H.265 means you retain footage roughly twice as long for the same hardware investment. Over a 3–5 year lifespan, this translates to significant cost avoidance on drive procurement and power consumption.
• Eight SATA HDD bays, up to 80 TB total capacity: Support drives up to 10 TB each. Maximum 80 TB capacity accommodates extended retention for compliance-heavy verticals—finance, retail, law enforcement—where 30–90 day lookback is mandatory or contractually enforced.
• RAID 5 and RAID 6 protection: Eliminate single points of failure. RAID 5 tolerates one drive loss; RAID 6 tolerates two simultaneous failures. Choose based on your tolerance for maintenance windows—RAID 6 adds write overhead but guarantees uptime during scheduled replacements or unexpected secondary failures.
• Two-way audio with embedded microphone and speaker: Bidirectional communication without external audio equipment. Useful for facility announcements, remote remote facility monitoring, or incident response.
• PoE compatibility: Network integration simplified for PoE-powered cameras. Reduces installation complexity and cable clutter in equipment rooms.

Integration & Compatibility

The XRN-6420RB2 connects via standard Gigabit Ethernet and supports ONVIF-compliant IP cameras from Hanwha and third-party vendors. Two-way audio works with cameras that embed audio streams in their video feed. Storage is managed via standard SATA interfaces, so drive replacement and upgrades follow industry-standard procedures. Review the NVR storage planning guide to calculate retention based on your target resolution and frame rate. At 32 MP / 15 fps across 64 channels, expect approximately 6.5 TB daily consumption; at 720p across all 64 channels at 30 fps, consumption drops to roughly 1.5 TB daily. RAID overhead (5–10% for RAID 5, 10–15% for RAID 6) reduces usable capacity proportionally.

Deployment Considerations

This NVR is sized for operations where high channel count and high resolution are both non-negotiable. Typical deployments include large retail environments, logistics hubs, campus security, and law enforcement facilities. Confirm that your network can sustain 520 Mbps ingress bandwidth; a single gigabit switch port is sufficient, but if multiple NVRs or other traffic share the connection, plan accordingly. RAID 6 is recommended for unattended installations or facilities where maintenance windows are difficult to schedule—the write overhead is marginal compared to the operational uptime gain.

When to Choose a Different Model

If you need fewer than 32 channels or can accept lower resolution, a smaller network video recorder in the Hanwha line will reduce cost and power consumption. If you require higher than 15 fps at 32 MP simultaneously across all channels, contact the manufacturer—specialized configurations may be available but are not standard.

Frequently Asked Questions

Q: Can I mix camera resolutions on the XRN-6420RB2?

A: Yes. The XRN-6420RB2 supports per-channel resolution configuration, so you can assign 32 MP cameras to some channels, 1080p to others, and manage each stream independently without affecting the others.

Q: What happens to recording if a drive fails?

A: Under RAID 5 or RAID 6, a single drive failure does not interrupt recording. The NVR continues to record at full 520 Mbps bandwidth while the RAID set rebuilds. Replace the failed drive, and the NVR reconstructs the missing data automatically.

Q: Does the XRN-6420RB2 support H.264 as well as H.265?

A: Yes. The recorder supports H.265, H.264, and MJPEG, so you can mix compression standards across channels or transcode on playback if your VMS or archival system requires a specific codec.

Q: How long will 80 TB retain footage at maximum resolution?

A: At 32 MP / 15 fps across all 64 channels using H.265, expect approximately 12–13 days of 24/7 recording before wrapping. At lower resolutions (e.g., 720p at 30 fps), retention extends to 50+ days. RAID overhead (typically 5–10% for RAID 5) slightly reduces usable capacity.

Q: Can I playback video while the system is recording?

A: Yes. The XRN-6420RB2 supports independent 200 Mbps playback bandwidth concurrent with 520 Mbps recording. Playback does not starve or degrade live recording.

Q: Is the XRN-6420RB2 ONVIF compliant?

A: Yes. The recorder supports ONVIF-compliant cameras, allowing integration with third-party IP surveillance systems and VMS platforms that follow the standard.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XRN-6420RB2 is engineered for integrators who need to hit both density and resolution simultaneously. Most 64-channel recorders force you to sacrifice frame rate or megapixel count to stay within bandwidth budgets. This one doesn't—520 Mbps sustained bandwidth and native 32 MP support across all 64 channels means you can deploy high-resolution sensors everywhere without redesigning your network or accepting surveillance-grade video.

Technical Highlights:

• H.265 compression across all streams: Cuts storage roughly in half versus H.264. At 6.5 TB/day at maximum resolution, you're looking at 12+ days of 24/7 footage on an 80 TB array—double the retention you'd get with H.264 on the same hardware. That's real money saved on drive costs and power over a 5-year lifespan.
• 520 Mbps sustained bandwidth even during RAID rebuild: Most recorders throttle when a drive fails. The XRN-6420RB2 doesn't. You lose zero frames during degraded-mode operation—critical for compliance or incident-response environments where data loss is unacceptable.
• Independent 200 Mbps playback concurrency: Two operators can search archives simultaneously without impacting live recording. In a security operations center, this is table-stakes. Don't underestimate the operational friction when playback starves recording.
• RAID 6 tolerates two simultaneous drive failures: Run RAID 6 in high-availability deployments. The write overhead is 15–20%, but you eliminate unplanned downtime during secondary failures. Worth it if the facility is unstaffed or maintenance windows are tight.

Deployment Considerations:

• Network bandwidth is the primary constraint—verify that your switch can sustain 520 Mbps ingress to this recorder without oversubscription. A single gigabit port is technically sufficient, but if this NVR shares a switch uplink with other devices, plan for contention.
• At 32 MP / 15 fps, you'll burn approximately 6.5 TB daily on 24/7 operation. RAID 5 overhead is 5–10%; RAID 6 is 10–15%. Don't surprise yourself at month 3 when you realize you've only got 10 days of retention instead of the 15 you planned for.
• Two-way audio works only with cameras that embed audio in the IP stream. Older analog-audio bridging won't work here—confirm camera compatibility before deployment.

The XRN-6420RB2 is the right choice for large retail deployments, logistics hubs, or law enforcement facilities where you cannot compromise on resolution or channel count. It's also appropriate for campuses where a single centralized recorder must handle dozens of sensors across varied monitoring priorities. Skip it if you need sub-4K recording or can accept 4–8 channel density—smaller models cost less and draw less power. But if your requirement is "all 64 channels at maximum resolution, 24/7," this is the recorder to spec.
