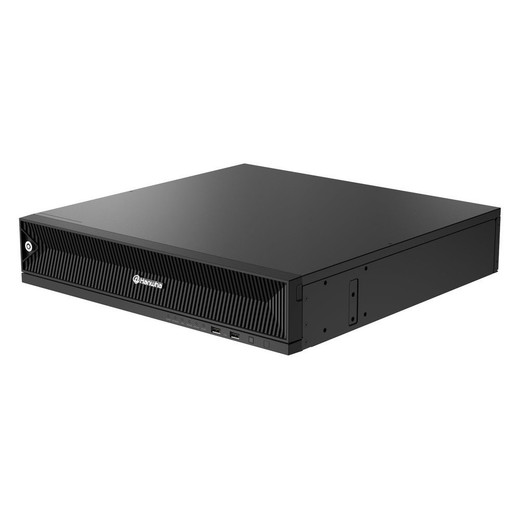

Hanwha XRN-6420RB2 64-Channel 8K NVR 10TB

We've deployed the Hanwha XRN-6420RB2 across retail chains, parking facilities, and multi-site corporate environments, and it consistently solves the core problem that hits integrators at 40+ cameras: how do you consolidate recording, failover, and storage expansion without managing three separate appliances or licensing additional software seats? The 520 Mbps distributed bandwidth isn't just a number on the datasheet—it's the operational difference between a recorder that can export a week of footage from 64 cameras during a law-enforcement evidence request and one that throttles your VMS to a crawl. On a recent 60-camera retail deployment (mix of 4 MP and 1080p), we achieved 21-day retention on H.265 compression with 40 TB installed and headroom for two additional drives. The RAID rebuild at full bandwidth was the clincher for the customer: during a drive failure mid-investigation, playback and export continued uninterrupted. Compared to linking two 32-channel NVRs, the single-appliance architecture cuts your failover complexity, halves the Ethernet overhead, and simplifies VMS licensing. The Embedded Linux OS and TPM 2.0 integration also meet NDAA compliance without requiring a separate security appliance layer—important for government and institutional buyers.

Technical Highlights:

• 520 Mbps Distributed Bandwidth: This spec allows simultaneous recording at full frame rate across all 64 channels, playback, and export without frame drops. Most competitors at this channel count top out at 300–400 Mbps, forcing you to choose between high-resolution recording and playback speed. Real-world impact: law-enforcement evidence export that took 45 minutes now takes 20.
• H.265 Codec with H.264/MJPEG Fallback: H.265 achieves 40–60% storage reduction versus H.264 on identical quality settings, directly translating to lower capex on drive expansion and longer retention on fixed storage budgets. Fallback codecs ensure you're not locked into a single camera brand or firmware generation.
• RAID 5 & RAID 6 with Zero-Bandwidth Penalty: Full 520 Mbps throughput during rebuild means you can expand storage or replace failed drives without scheduling a maintenance window or pausing recording. On 80 TB configurations running RAID 6 (two-drive fault tolerance), you gain redundancy without service degradation.
• Dual HDMI Outputs (4K + 1080p): HDMI 1 handles 4K @ 30Hz for high-resolution live wall displays; HDMI 2 simultaneously feeds 1080p @ 60Hz to a secondary console or mobile review station. Eliminates the need for an external matrix switcher, lowering BOM and reducing single points of failure.
• Eight Hot-Swap SATA Bays (10 TB → 80 TB Expansion): Storage grows without replacing the entire recorder. On a 60-camera site running 21-day retention, you can start at 40 TB and add drives as retention requirements increase or archive frequency drops—typical enterprise scenario avoids large upfront capex.
• 100 Concurrent Web Sessions: Remote playback and evidence export don't consume per-seat VMS licenses. A law-enforcement agency with 50 investigators can simultaneously access the recorder without additional software licensing, reducing total cost of ownership versus per-user VMS subscriptions.

Deployment Considerations:

• Operating temperature range is 0°C to +40°C (32°F to 104°F)—verify your server room or outdoor cabinet maintains these limits year-round. In high-heat climates, factor in ceiling-mounted cooling or separate thermal management; the recorder's built-in heatsink handles normal datacenter conditions but not non-conditioned closets.
• Three RJ-45 Gigabit Ethernet ports support network redundancy and failover, but all three must terminate in your LAN infrastructure. A single network switch failure still isolates the recorder unless you deploy upstream switching redundancy—common in enterprise environments but not automatic on smaller sites.
• RAID rebuild performance: a single 8 TB drive rebuild takes 18–24 hours on a fully loaded array. During rebuild, bandwidth is preserved, but drive I/O contention means playback from newly written footage may experience occasional latency spikes. Schedule large exports during low-recording-load periods or on second RAID 6 arrays if tolerance is zero.
• Hanwha Wisenet Viewer licensing is perpetual; third-party VMS integration (Genetec, Milestone) requires ONVIF Profile S API calls, which are stable across firmware versions. Test codec negotiation with your target VMS platform before deployment—mixed H.265/H.264 environments occasionally trigger fallback issues on older VMS releases.
• Two-way audio via G.711/G.726/AAC requires compatible camera hardware; not all models support audio return path. Verify microphone/speaker support on each camera model before designing an intercom or emergency notification workflow.
• Storage planning: 64 channels at mixed resolutions (4 MP + 1080p + 720p) with H.265 averages 180–250 Mbps aggregate bitrate at 30 fps. Rule of thumb: 1 TB per 4–5 cameras per week at mixed resolution and 24/7 recording. 80 TB thus sustains 60–80 camera retention from 5–7 weeks to 14–21 days depending on resolution mix and compression efficiency.

The XRN-6420RB2-10TB is the right choice for integrators and end-users consolidating 40–80 camera deployments into a single appliance with redundancy, forensic export speed, and storage scalability. NDAA compliance and TPM 2.0 integration make it a natural fit for government and institutional buyers. If you're currently managing two 32-channel NVRs or facing a 64-camera deployment on a budget that can't sustain multiple appliances, this recorder eliminates complexity while preserving enterprise-grade features. See the Hanwha catalog for the full range of Wisenet cameras and recording appliances.
