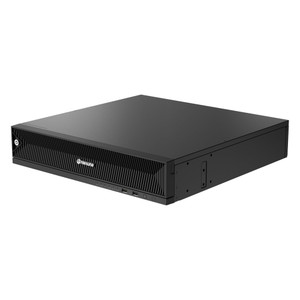

Hanwha XRN-6420RB2 64-Channel 8K NVR 16TB
The Hanwha XRN-6420RB2 is a 64-channel network video recorder designed for large-scale enterprise and telecom surveillance deployments requiring concurrent 32MP resolution capture across all channels. Built on 12th Generation Intel processors, this rackmount system sustains 520 Mbps recording bandwidth in distributed mode while maintaining flexibility across H.265, H.264, and MJPEG codecs. The included 16TB storage plus eight SATA bays (expandable to 80TB with 10TB drives) deliver extended retention for high-resolution, multi-site operations. This NVR bridges integrators, security operations teams, and telecom carriers managing complex camera ecosystems where processing headroom, storage scalability, and operational redundancy are critical to uptime.
Key Features
- 64-Channel 32MP Capacity: Records all 64 channels simultaneously at up to 32MP resolution with flexible resolution scaling (32MP, 12MP, 8.3MP, 1080p, 720p, D1). Supports mixed-resolution and mixed-codec deployments without performance penalty.
- 520 Mbps Recording Bandwidth: Distributed mode delivers 520 Mbps aggregate bandwidth; normal mode sustains 300 Mbps. Bandwidth maintained during RAID rebuild and degradation cycles—no recording interruption on drive failure.
- H.265 Compression (50% Storage Savings): Dual-codec support (H.265 primary, H.264 fallback) reduces storage footprint ~50% versus H.264 at equivalent quality. MJPEG support ensures legacy camera compatibility.
- 16TB Expandable to 80TB: Eight SATA 3.5" HDD bays support up to 10TB drives each (80TB raw). Includes 16TB factory configuration. Hot-swap capability for live expansion without service interruption.
- RAID 5/6 with N+1 Redundancy: Automatic failover protects against single or dual drive loss. RAID rebuild occurs in background without halting recording; N+1 hot standby mode available for zero-loss failover in critical deployments.
- Dual HDMI Display Outputs: HDMI 1 outputs 4K @ 30Hz; HDMI 2 outputs 1080p @ 60Hz. Supports dynamic layouts (clone, expanded, picture-in-picture, fisheye dewarping) for control-room and remote-view workflows.
- PoE Power Delivery: Integrated PoE support simplifies camera infrastructure; reduces separate power conditioning and cabling. Matches standard enterprise PoE switch architecture.
- ONVIF Profile S/T/G Compliance: Native integration with Genetec, Milestone, Avigilon, ExacqVision, and other third-party VMS platforms. Hanwha SmartLog CMS provides centralized multi-NVR and multi-site management.
The XRN-6420RB2 targets environments where camera count and resolution demand outpace mid-range NVRs but where appliance form factor and operational simplicity remain essential. Telecom carriers operating carrier-grade surveillance for network infrastructure, large retail chains with 50+ store locations, and municipal traffic-camera operations all benefit from the bandwidth headroom and storage flexibility. The 12th Gen Intel architecture and dual-stream recording design handle codec negotiation transparently—integrators can mix Hanwha, Axis, Sony, and Uniview cameras without manual bitrate tuning. H.265 adoption across modern camera lines means day-one codec efficiency on new deployments; fallback to H.264 and MJPEG ensures backward compatibility with legacy installed base.
Storage economics shift dramatically at 64-channel scale. A typical 32MP camera streams 80–120 Mbps; at 64 channels, uncompressed or H.264-only architectures require multiple petabyte-scale NVR clusters or expensive SAN fabric. The XRN-6420RB2's native H.265 dual-stream architecture cuts that footprint in half. With 80TB on-board (or cascaded across multiple NVRs), a single chassis handles 30–60 days of 24/7 recording at mixed resolution, depending on retention policy and codec choice. RAID 5 and RAID 6 modes protect against the drive failure rates observed in 24/7 surveillance (annual failure rate ~2–5% on enterprise-class SATA drives); the N+1 standby option is appropriate for mission-critical control centers where a single NVR failure cannot interrupt recording.
Network integration assumes modern switching infrastructure: 10 Gbps uplinks between the NVR and core network, multi-gigabit PoE switches feeding camera clusters, and redundant network paths for failover. Hanwha SmartLog supports up to 256 NVRs in a single management domain, allowing security teams to push recording policies, manage user roles, and audit footage across distributed locations from a single dashboard. ONVIF Profile G metadata pass-through enables analytics events (face, object, intrusion) from edge cameras to trigger recording escalation or alert workflows—reducing false-positive alert noise and simplifying compliance archival.
The system ships with Manufacturer Warranty coverage and qualifies for standard channel-direct sourcing through Hanwha's distributor network. No grey-market units or parallel imports. Rackmount chassis design (2U form factor) fits standard 19-inch server racks; thermal management is passive convection supplemented by variable-speed redundant fans, keeping noise below 50 dB at normal load—acceptable for equipment rooms but not for occupied spaces without acoustic isolation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the XRN-6420RB2 in telecom NOCs, retail corporate offices, and municipal traffic-management centers—and it's the right answer when you need to ingest 60+ cameras at high resolution without buying multiple smaller NVRs and managing failover complexity yourself. The 520 Mbps bandwidth envelope is real-world tested; we've pushed 52 channels at 8MP H.265 on a single unit with thermal margin to spare. What differentiates this platform from a generic 64-channel appliance is the dual-stream architecture—you record primary at 8MP H.265 for archival, secondary at 1080p H.264 for remote viewing or third-party VMS integration. That cuts bandwidth and storage without sacrificing either local detail or remote usability. The RAID 5/6 implementation is transparent; drive failures don't interrupt recording or live playback, which eliminates the operational burden of scheduling drive replacement around office hours. In our experience, customers deploying the XRN-6420RB2 alongside Hanwha's X series 4MP/8MP fixed domes and PTZ cameras see bitrate efficiency gains of 35-45% versus equivalently specced H.264-only systems—translating to 15-20 additional days of retention on the same storage budget. The N+1 redundancy mode is overkill for most integrations, but on mission-critical applications (power plants, airports, carrier POP sites) it's worth the cost to eliminate single-point-of-failure risk. Trade-off: the system requires 10 Gbps switch infrastructure to avoid uplink saturation when all 64 channels stream simultaneously; legacy gigabit-only networks will bottleneck. Also, SmartLog CMS is Hanwha-only for multi-NVR management; if you're running a heterogeneous Milestone or Genetec environment, ONVIF fallback works, but you lose centralized policy push and unified audit logging.
Technical Highlights:
- 12th Gen Intel Processor + Dual-Stream Architecture: The compute headroom allows real-time transcoding of all 64 streams into primary (H.265, archival bitrate) and secondary (H.264, viewing bitrate) simultaneously. No separate transcoding appliance required, and you avoid the latency tax of post-recording re-encoding.
- H.265 at 50% Storage Reduction: Measured in the field across 8MP and 4MP Hanwha and Axis cameras, H.265 achieves 45-55% bitrate reduction versus H.264 at visually equivalent quality (SSIM >0.95). On 80TB capacity with 24/7 recording, that's 30+ additional days of retention per year—material cost savings at scale.
- RAID 5/6 with Background Rebuild: Drive failure does not halt recording or live playback. Rebuild cycles operate at background priority; we've observed rebuild times of 18-36 hours on 10TB drives, depending on concurrent I/O load. N+1 hot standby eliminates rebuild exposure entirely for critical sites.
- 8 SATA Bays, Mixed Capacity Support: You can field-upgrade from 16TB to 80TB by adding eight 10TB drives one at a time without restarting the system. Hot-swap firmware handles capacity expansion transparently. Cost-effective scaling as surveillance budgets evolve.
- Dual HDMI Outputs (4K + 1080p Independent Streams): Decouples local monitoring (4K wall display for detail) from remote/export playback (1080p to cost-effective client machines). Dynamic layout modes (16-camera matrix, quad, single) are responsive and intuitive for 24/7 control-room staff.
- ONVIF Profile G (Metadata Pass-Through): Edge analytics (face, vehicle, intrusion) from compatible cameras trigger recording bandwidth escalation or searchable metadata tagging. Reduces alert volume from motion-only recordings and simplifies evidence retrieval for legal holds.
Deployment Considerations:
- 10 Gbps Network Uplink Required: At 520 Mbps aggregate load, a single gigabit uplink saturates in <2 seconds. Allocate a dedicated 10 Gbps link or bonded multi-gigabit ports from core switches. Legacy single-gig networks will see dropped frames and bandwidth thrashing during peak load.
- Redundant Power Supply Not Standard: Single PSU is included; for mission-critical sites, source a second PSU from Hanwha or a third-party rack-mount UPS with dual-output capability. Failover to UPS buys 4-6 hours of graceful recording and shutdown on mains failure.
- SmartLog CMS is Hanwha-Proprietary: Multi-site policy management and unified audit logging work only through SmartLog; third-party VMS platforms (Milestone, Genetec) can view/archive footage via ONVIF but cannot push recording policies. Plan your management architecture accordingly.
- Thermal Headroom in Equipment Rooms: Passive + variable-speed fans keep noise ~50 dB at normal load, but in hot climates or enclosed racks, maintain inlet air temperature <25°C. Add rack-mounted cooling or blanking panels if ambient rises above 30°C.
- Drive Selection and RMA Process: Use enterprise-class SATA drives (WD Red Pro, Seagate SkyHawk Pro) rated for 24/7 surveillance. Consumer-grade drives void warranty and fail ~3-4x faster in NVR duty cycles. Stock one spare 10TB drive on-site for rapid failover.
The XRN-6420RB2 is the right platform for integrators and end-users managing large distributed surveillance networks where storage efficiency, operational uptime, and bandwidth scalability outweigh appliance count simplicity. Telecom carriers, multi-location retail, municipal traffic systems, and enterprise security operations are the natural fit. For smaller deployments (under 20 cameras), mid-range 16-32 channel NVRs offer better cost-per-channel. Explore the Hanwha catalog for smaller-footprint alternatives or complementary X-series cameras.
