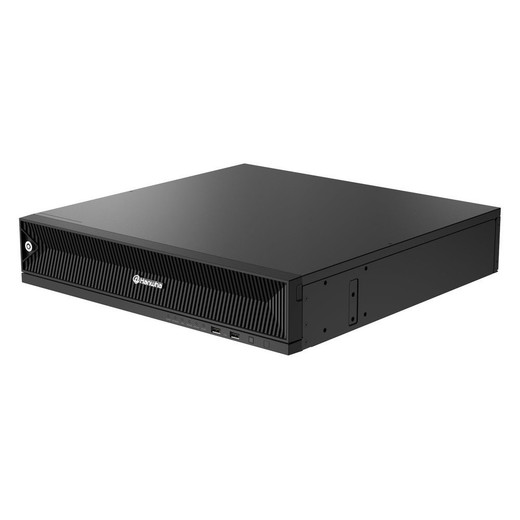

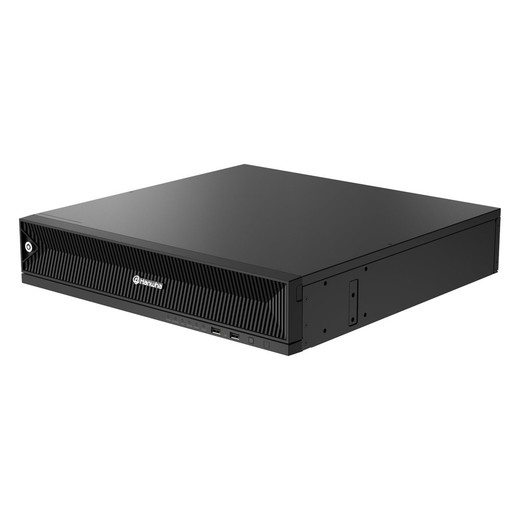

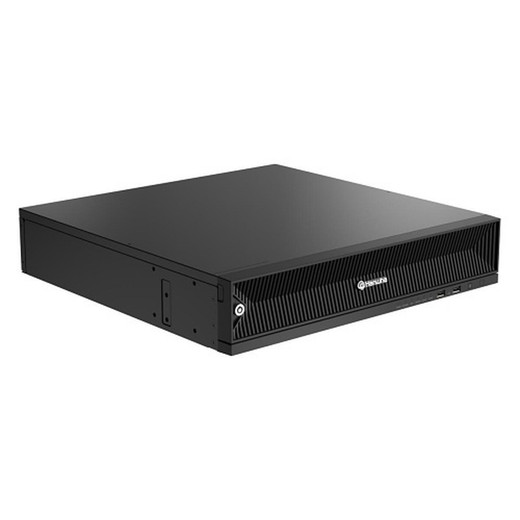

Hanwha XRN-6420RB2 64-Channel 8K NVR with 60TB Storage
The Hanwha XRN-6420RB2 is an enterprise-class, Intel-based 64-channel NVR engineered for large-scale surveillance deployments requiring maximum bandwidth, storage capacity, and recording flexibility. This 8K-ready system supports up to 32MP camera resolution and delivers 520 Mbps recording bandwidth with 200 Mbps playback capacity. The XRN-6420RB2-60TB configuration ships with 60TB of raw storage pre-installed across eight SATA HDD bays, enabling immediate deployment without additional storage setup.
Key Features
- 64-channel architecture with 32MP maximum resolution support
- 8K-capable design for next-generation surveillance deployments
- 520 Mbps recording bandwidth (distributed and RAID modes)
- 200 Mbps playback capacity for rapid event review
- 60TB raw storage with eight SATA HDD bays (up to 10TB per drive)
- H.265, H.264, and MJPEG codec support for multi-vendor compatibility
- Two-way audio support for integrated communication
- PoE compatibility for simplified network integration
- Dual HDMI outputs for independent multi-display control
Recording & Codec Capabilities
The XRN-6420RB2 supports multiple compression standards—H.265, H.264, and MJPEG—ensuring seamless integration with diverse camera ecosystems. Dual-stream recording enables simultaneous storage at different resolutions and frame rates, optimizing both archive storage and real-time performance. Recording modes include normal, dual-stream, scheduled (continuous/event-triggered), and pre/post-event capture with bookmark functionality. Critical infrastructure benefit: both distributed and normal RAID modes maintain full 520 Mbps bandwidth during drive rebuild or degradation scenarios.
Display & Output Capabilities
Dual HDMI outputs provide independent display flexibility: HDMI 1 supports 4K resolution (3840×2160 @ 30Hz) with up to 64-window layouts, while HDMI 2 supports Full HD (1920×1080 @ 60Hz) with up to 36-window divisions. Dynamic layout, virtual channel view, and clone mode support rapid operator response. Web playback accommodates 1/2H, 2V, 3V, 4, 6, 8, and 9-window arrangements for remote monitoring and investigation.
Network & Protocol Support
ONVIF and SUNAPI protocol compatibility ensures broad interoperability across camera manufacturers and third-party integrations. Built-in PoE support simplifies network deployment by powering and connecting cameras through standard Ethernet infrastructure.
Applications
- Large-scale campuses and enterprise facilities
- Transportation hubs and logistics centers
- Critical infrastructure and government installations
- Multi-building municipal and municipal security operations
- High-bandwidth surveillance requiring extended archive retention
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XRN-6420RB2 is purpose-built for organizations where recorder uptime and bandwidth scalability are non-negotiable. The 520 Mbps sustained recording rate across 64 channels—with guaranteed maintenance during RAID rebuild—distinguishes this unit from mid-market alternatives. Pre-configured 60TB storage eliminates procurement delays and ensures consistent imaging capture from day one.
H.265 codec efficiency paired with dual-stream recording delivers superior storage economics without sacrificing investigative capability. For enterprises managing 40+ cameras requiring 24/7 archive retention and forensic-grade playback performance, this Intel-based architecture provides the computational headroom and reliability expected of critical surveillance infrastructure.
