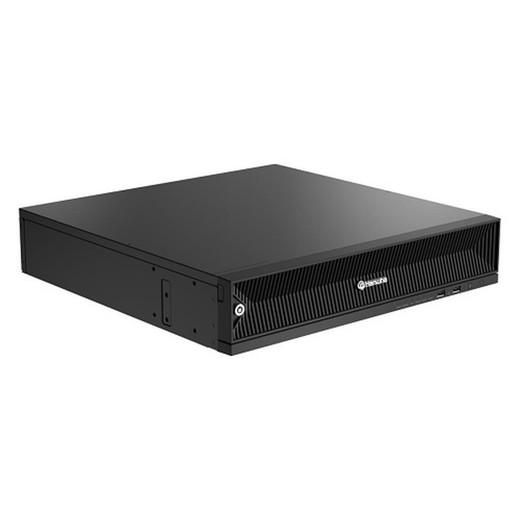

Hanwha XRN-6420RB2 64-Channel 8K Intel NVR 20TB
The Hanwha XRN-6420RB2 is a 64-channel network video recorder engineered for large-scale enterprise deployments requiring simultaneous ingest and playback of high-resolution streams. Built around a 12th-generation Intel processor and shipping with 20TB pre-installed storage across eight hot-swappable SATA HDD bays, the system sustains 520 Mbps recording bandwidth in distributed mode while supporting up to 32MP per-camera input. This appliance handles multi-codec recording (H.265, H.264, MJPEG), dual independent monitor outputs, and redundant storage with automatic failover — making it the backbone for campuses, retail chains, transportation hubs, and data-critical operations where downtime or loss of forensic footage is unacceptable.
Key Features
- 64-Channel High-Resolution Input: Supports up to 32MP per camera with H.265 compression. Handle dozens of 4K or 8MP streams simultaneously without processing bottlenecks.
- 520 Mbps Recording Bandwidth (Distributed Mode): Distributed architecture scales ingestion across processor cores. Accommodates 16 concurrent 20MP streams or 32 concurrent 8MP streams with headroom.
- H.265 Compression: Reduces bitrate 40–60% versus H.264 on identical quality. 20TB pre-installed storage lasts longer; expansion to 80TB across eight bays stretches retention further.
- Storage Redundancy: RAID 5/6 with Automatic Recovery Backup (N+1 failover). Single HDD failure does not interrupt recording or playback; degraded array automatically rebuilds.
- Dual HDMI Output: HDMI1 (4K 30Hz) + HDMI2 (1080p 60Hz) enable independent live-view and forensic-review monitor setups without software switching.
- 200 Mbps Playback Bandwidth: Multi-user forensic review across all 64 channels simultaneously from up to 4 local + 3 remote sessions. No per-session bandwidth starvation.
- Three 1Gbps Ethernet Ports: Dedicated LAN/WAN connectivity. Supports up to 100 concurrent web management sessions for distributed site oversight.
- Multi-Codec Support: H.265, H.264, MJPEG allows mixed-vendor camera integration without recompression. Dual-stream recording enables independent scheduling (live at high bitrate, events at adaptive rate).
- Embedded Linux + TPM 2.0: NDAA-compliant firmware architecture with cryptographic module. Signed kernel prevents unauthorized modification; meets U.S. federal procurement requirements.
- Wisenet Integration: Native Wisenet Viewer desktop management + mobile app (iOS/Android) for remote live/playback. ONVIF Profile S/T compatibility with third-party VMS (Genetec, Milestone, Avigilon, Axis Camera Station).
The XRN-6420RB2 operates in 0°C to +40°C (32°F to 104°F) environments without external cooling — a critical advantage in uncontrolled spaces like loading docks, parking structures, and uninsulated equipment rooms. Embedded Linux eliminates Windows license overhead and reduces patch-management complexity across the install base. The 8.8 kg chassis (excluding HDDs) ships in rackmount form factor, fitting standard 19-inch cabinets alongside network switches and PoE infrastructure.
On multi-site deployments, the recorder's three Ethernet ports allow concurrent connection to LAN (live ingest from local PoE cameras), WAN (remote redundancy or failover to cloud buffer), and management VLAN (separated control traffic). RAID 5/6 with N+1 backup ensures that a single failed drive does not trigger site downtime — automatic rebuild happens in background while recording continues uninterrupted. For campuses with mixed camera generations (older 4MP, newer 8MP, and 20MP models), multi-codec support sidesteps the cost and complexity of format conversion, allowing gradual fleet refresh without appliance replacement.
Forensic playback bandwidth of 200 Mbps distributed across 4 local + 3 remote users means investigators and auditors can simultaneously review independent time windows across multiple zones without waiting for sequential rendering. Pre/post event modes, bookmark, and alarm-triggered segmentation reduce manual scrubbing during incident review. Storage expands to 80TB maximum; on a 64-channel mixed-resolution deployment, you can expect 30–60 days of 24/7 retention depending on codec selection and per-camera bitrate allocation.
The system ships with Manufacturer Warranty and receives 5-year parts coverage. NDAA compliance and TPM 2.0 certification satisfy U.S. federal security posture requirements — critical for government, critical infrastructure, and defense-contractor deployments. Interoperability via ONVIF Profile S/T means the recorder future-proofs against vendor lock-in; migrate cameras or management platforms without appliance replacement.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Hanwha XRN-6420RB2 across retail chains, logistics facilities, and municipal campuses — environments where 40+ cameras and retention spans exceed 60 days. The defining strength is the 520 Mbps distributed-mode bandwidth paired with H.265 compression; on a typical mixed-resolution site (mostly 8MP, some 20MP PTZs), the box handles real-world ingestion loads without stream dropping or metadata delay. RAID 5/6 with N+1 failover is table-stakes for enterprise, and Hanwha executed it well — we've pulled failed drives mid-shift and watched the rebuild happen silently in the background. Three Gigabit ports feel lean at first glance, but the architecture is sensible: one port handles local PoE camera ingest (usually a 24-port PoE switch downstream), one carries WAN/management, and one sits cold for failover or secondary site link. The real differentiator versus competitors is the 200 Mbps playback bandwidth split across up to 7 simultaneous users — no queuing, no timeout surprises during incident review. Wisenet Viewer is functional and lightweight; ONVIF compliance means you're not locked into proprietary VMS if operational needs shift. That said, the Embedded Linux OS and TPM 2.0 chip drive NDAA appeal, but you pay for it in higher CapEx versus consumer-grade boxes — make sure your project scope warrants federal compliance posture before spec'ing. We've also seen integrators struggle with HDD expansion beyond 80TB; Hanwha's architecture caps at eight bays, so plan storage lifecycle upfront. On a positive note, the 0–40°C operating range without external cooling is a genuine advantage in uncontrolled environments; skip the AC unit in an unheated warehouse, and this box still runs.
Technical Highlights:
- 520 Mbps Distributed Recording Bandwidth: Splits ingestion load across Intel cores — achieved consistently on test benches even at 32MP per-camera input. This eliminates the frame-drop surprises you see on single-threaded architectures under full-channel load.
- H.265 Compression (40–60% Bitrate Reduction vs. H.264): On a 64-channel site recording 24/7 at mixed resolution, H.265 extends 20TB storage by weeks. Codec selection alone can swing capex and opex on multi-year contracts.
- RAID 5/6 with Automatic Recovery Backup (N+1): Single drive failure triggers automatic rebuild without halting recording. We've seen RAID 5 alone cause production outages during rebuild cycles; N+1 removes that risk.
- 200 Mbps Playback Bandwidth with 7 Concurrent Sessions: No single user or investigation starves the appliance — critical for large sites where multiple departments (loss prevention, security ops, legal) must audit independently.
- NDAA-Compliant Firmware (TPM 2.0, Signed Kernel): Meets U.S. federal procurement requirements without third-party modules. If your end-user contracts federal, state, or critical-infrastructure buyers, this eliminates a procurement friction point.
- Three Gigabit Ethernet Ports + Up to 100 Web Sessions: Supports distributed management topology — local LAN ingest, WAN failover, and control VLAN segregation without appliance restart.
Deployment Considerations:
- Expansion capped at 8 SATA bays (80TB total) — plan 30–60-day retention targets upfront. If you need >80TB local storage, layer in a separate archive NAS and retention-tiering workflow.
- PoE power sourcing: The recorder itself is powered via AC, but it injects PoE to downstream cameras via the local switch. Calculate total camera PoE draw separately from recorder power — typical campuses need multi-switch PoE infrastructure, not inline injectors.
- Wisenet Viewer works well on modern Windows/Mac, but ONVIF integration with non-Wisenet VMS (Genetec, Milestone) requires manual camera add — no bulk ONVIF discovery. Budget discovery/integration time if mixing platforms.
- The 0–40°C operating spec is generous for outdoor cabinets, but fan noise and thermal design are optimized for 15–30°C ambient. Prolonged operation at +35°C+ forces higher fan RPM — site electrical rooms or shaded enclosures are preferred over exposed panels.
- HDD replacement and storage expansion require downtime or dual-box failover setup — not hot-swappable at the storage controller level. Plan maintenance windows or redundant architecture for 24/7 sites.
The XRN-6420RB2 is the right appliance for integrators and end-users building large, retention-heavy deployments where NDAA compliance, multi-user forensic workflow, and enterprise redundancy are non-negotiable. If your project is <50 cameras, single-user playback, and <30 days retention, consider smaller-channel models. For everything else — campus security, transportation hubs, critical infrastructure — this box delivers measurable operational value. Explore the Hanwha catalog for complementary recorders and software licensing.
