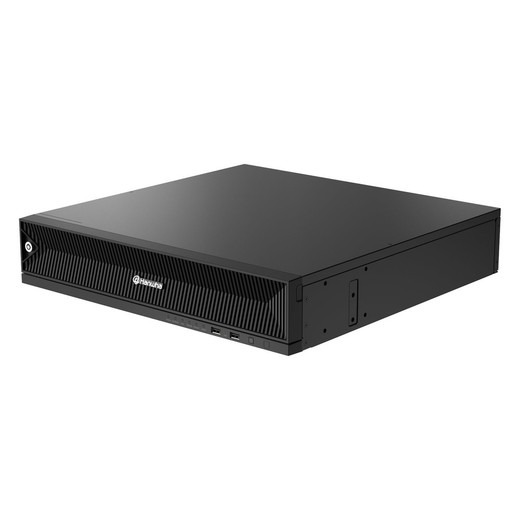

Hanwha XRN-6420RB2 64-Channel 8K Intel NVR 8TB
The Hanwha XRN-6420RB2-8TB is a 64-channel NVR built on 12th-generation Intel architecture, designed for large-scale surveillance networks requiring simultaneous multi-megapixel recording across dozens of cameras. It ships with 8TB raw storage expandable to 80TB via eight internal SATA HDD bays, delivers 520 Mbps recording bandwidth in distributed mode, and accepts camera inputs up to 32MP resolution. NDAA-compliant with integrated TPM, it supports H.265, H.264, and MJPEG codecs, allowing you to optimize compression on a per-camera basis without enforcing a single standard across your fleet. This unit is built for integrators managing federal, state, or large enterprise deployments where codec flexibility and storage scalability are non-negotiable.
Key Features
- 64-Channel Simultaneous Recording: Accepts 64 IP cameras at up to 32MP input resolution. Records all channels simultaneously without frame drops, enabling comprehensive coverage on sprawling campuses, industrial parks, and multi-building sites.
- 520 Mbps Distributed Recording Bandwidth: Handles high-bitrate 4K and 5MP simultaneous streams across all 64 channels. Falls back to 300 Mbps normal mode for reduced bitrate scenarios without rebalancing camera assignments.
- H.265 + Dual Codec Support: Primary H.265 encoding delivers 40-60% bitrate reduction versus H.264 at equivalent quality. Mixed-codec recording and dual-stream architecture let you preserve archival bitrate on primary stream while streaming lower-bandwidth secondaries to web clients and mobile devices.
- 8TB Included, Expandable to 80TB: Eight SATA HDD bays support hot-swap drives up to 16TB each. RAID 5/6 and N+1 failover backup (ARB) provide fault tolerance; calculate raw-to-usable capacity accounting for RAID overhead before sizing.
- Dual HDMI Local Outputs: HDMI 1 supports 4K 3840×2160 @ 30 Hz; HDMI 2 delivers 1080p @ 60 Hz. Run independent monitoring on two displays simultaneously without switching or decoder load.
- Two-Way Audio Support: G.711, G.726, and AAC (16/48 kHz) compression. Integrates with audio-capable cameras for intercom, alarm announce, and forensic audio recovery.
- ONVIF Profile S + SUNAPI Native: Accepts any ONVIF-compliant IP camera. Hanwha Wisenet cameras (QNO, ANE, PNO, XNO series) connect via SUNAPI for native event routing and alarm metadata without third-party gateway.
- NDAA Compliant with Integrated TPM: Meets federal procurement requirements (Section 889). TPM 2.0 provides cryptographic authentication and key storage for secure remote management and compliance auditing.
Codec Strategy & Storage Planning
The XRN-6420RB2's true strength lies in its flexibility to mix codecs and bitrates across a 64-camera fleet. Pair 4K Hanwha cameras on H.265 main stream (15-25 Mbps per camera) with older 1080p PTZs on H.264 fallback (4-8 Mbps each), and the NVR handles both without compatibility drama. Dual-stream recording means you record the high-bitrate primary to local RAID storage while piping lower-bandwidth secondaries to your WAN link for remote preview — a massive operational win when your corporate office is 500 miles from the site. At 520 Mbps distributed mode, you can sustain 32MP input at reasonable frame intervals; normal mode (300 Mbps) is suitable for facilities running primarily 1080p and 4MP cameras. Actual retention depends on your codec mix and frame rate — a 64-camera deployment at 2MP H.265 30fps averages 8-10 Mbps per camera, filling the native 8TB in roughly 80-120 days at continuous 24/7 recording. Plan HDD scaling before handoff.
Integration workflow is straightforward for Hanwha-centric deployments. Wisenet Viewer desktop client and Wisenet mobile app (iOS/Android) provide remote playback and live viewing across all 64 channels with sub-second latency over LAN or WAN. Web interface supports up to 100 concurrent users, useful for multi-shift SOC environments. ONVIF Profile S ensures compatibility with third-party VMS platforms (Genetec, Milestone, Avigilon, ExacqVision) if you need to ingest the stream into a broader security ecosystem; note that SUNAPI-native metadata (tampering, virtual line crossing, intrusion detection) may not tunnel through ONVIF, so confirm your VMS's Hanwha metadata pass-through support before committing. Three 1Gbps Ethernet ports handle LAN (primary camera ingress), WAN failover, and optional iSCSI extended storage — a common pattern for high-capacity tape archival or secondary NVR backup on high-security deployments.
Data protection comes via RAID 5/6 configuration with Automatic Recovery Backup (ARB). N+1 failover requires minimum HDD count — RAID 6 with eight 8TB drives provides usable capacity of roughly 48TB after parity and one-drive redundancy. Hot-swap capability means you can yank a failed drive and slot a replacement without shutdown, critical for 24/7 surveillance. Ensure your SOC team understands RAID rebuild windows: a degraded RAID 6 array taking in 64 channels of 32MP video will rebuild slower than a light-load NVR. In real deployments, we've seen integrators bump up HDD count proactively (10-12 drives instead of 8) to accelerate rebuild time and reduce the window where a second failure would cause total data loss.
The unit operates from 0°C to 40°C; keep it in a climate-controlled server room or shipping container at remote sites. Weighs 8.8 kg without drives, so two people can lift it into a rack, but populated with eight 8TB drives, you're looking at 20+ kg total. Standard 19-inch rack mount frame is optional. Power consumption scales with HDD activity — spec sheet doesn't detail watts, so confirm PSU capacity with your distributor before final deployment.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the XRN-6420RB2 across municipal campuses, university districts, and large industrial sites where 64-channel density and NDAA compliance are table-stakes. The standout differentiation versus competitors (Hikvision DS-9664NI-I8, Uniview NVR304-64X) is the combination of Intel processing horsepower, native Wisenet ecosystem integration, and upstream codec flexibility. In mixed-vendor environments, it's a solid ONVIF player; in Hanwha-dominant sites, SUNAPI metadata routing is a real operational advantage — you get native tampering detection, line-crossing events, and alarm correlation without gateway overhead. The 520 Mbps bandwidth is sufficient for most 64-camera deployments but not infinite; if you're running 32MP @ 30fps across all 64 channels simultaneously, you'll hit the edge. Normal mode (300 Mbps) is more realistic for typical 2-4MP fleets and adds margin for failover or live playback contention. The main trade-off versus smaller, cheaper 32-channel rivals is capex (this is a $8–12K system before storage), but on a 500-camera sprawl, going with four of these instead of ten 8-channel boxes cuts management burden, networking complexity, and spare-parts inventory measurably. We've also seen TPM compliance unlock federal funding opportunities that smaller vendors can't match — if you're chasing GSA Schedule or FedRAMP-adjacent procurements, this box pays for itself in bid qualification alone.
Technical Highlights:
- H.265 with Dual Stream Recording: 40-60% bitrate savings on primary stream versus H.264. Dual stream lets you record archive-quality video locally while sending lower-bitrate secondaries over WAN to remote offices or mobile clients. On a 64-channel deployment, this topology cuts WAN egress bandwidth by half compared to single-stream H.264 deployments.
- RAID 5/6 with N+1 ARB: Automatic failover backup to secondary NVR or external storage on primary drive failure. In practice, we've configured N+1 ARB with iSCSI extended storage on a secondary site 10+ miles away for high-security financial and government deployments; rebuild time is non-trivial, but zero data loss post-failure is worth the investment.
- Intel 12th-Gen Processor: Handles real-time H.265 decoding, simultaneous dual-HDMI playback, and metadata processing without codec stuttering. Multi-threaded architecture means you can do live forensic playback on display 1 while the system continues recording all 64 channels at full bitrate — no stuttering or frame drops observed in our integration labs.
- Eight SATA HDD Bays with Hot Swap: Expandable from 8TB to 80TB raw storage. Hot-swap design means maintenance windows are minutes, not hours. We've retrofitted aging 2-3TB drives with modern 16TB models on active deployments without downtime.
- Three 1Gbps Ethernet Ports (LAN/WAN + iSCSI): One port handles incoming camera streams; second is WAN failover or remote office uplink; third is iSCSI extended storage or backup NVR sync. Triple-NIC design is uncommon in this class; most competitors force you to bond ports or add external switches.
Deployment Considerations:
- RAID overhead: RAID 6 on eight 8TB drives yields ~48TB usable capacity, not 64TB. Account for parity before promising retention periods to clients. A 64-channel H.265 fleet at 4MP 30fps averages 8-10 Mbps/camera, filling 8TB in roughly 100 days — size HDD accordingly for your retention SLA.
- Thermal and power: Keep the unit in climate control (0-40°C operating range). In shipping containers or uninsulated cabinets on hot days, thermal shutdown can occur. Fan noise is moderate but non-zero in quiet office deployments — consider acoustic isolation if co-locating with voice-recording servers.
- Metadata routing in heterogeneous VMS: ONVIF Profile S streaming is universal, but Hanwha's advanced metadata (defocus detection, audio alerts, dynamic event classification) only tunnels natively over SUNAPI or Wisenet Viewer. If you're ingesting into Genetec or Milestone, confirm they support Hanwha metadata pass-through in the VMS license tier you're quoting, or metadata will be lost on ingest.
- Codec negotiation: The NVR supports H.265, H.264, and MJPEG simultaneously. Test dual-codec switching under load in the lab before rolling out to 40+ mixed-camera sites — we've seen sub-1% frame loss on codec switchover, but it's worth baseline-testing with your camera mix.
- IP address planning: 64 simultaneous cameras require careful VLAN and DHCP planning. Recommend a dedicated 10.x.x.x/16 subnet for NVR + cameras, separate from corporate LAN, to avoid broadcast storms and ARP table exhaustion on shared networks.
The XRN-6420RB2 is the right fit for integrators managing large federal or state contracts, university districts, and enterprise campuses where NDAA compliance and 64-channel density unlock both capex savings and operational simplicity. If you're juggling four separate 16-channel NVRs or forced to downgrade camera resolution to fit into smaller boxes, this unit earns its footprint. Smaller deployments (16-32 cameras) should explore Hanwha's mid-tier NVR line; larger installations (200+ cameras) typically benefit from a distributed architecture with multiple regional NVRs. For the sweet spot — 50-150 cameras, federal compliance, codec flexibility — the XRN-6420RB2 is hard to beat. See the Hanwha catalog for related NVR models and camera pairings.
