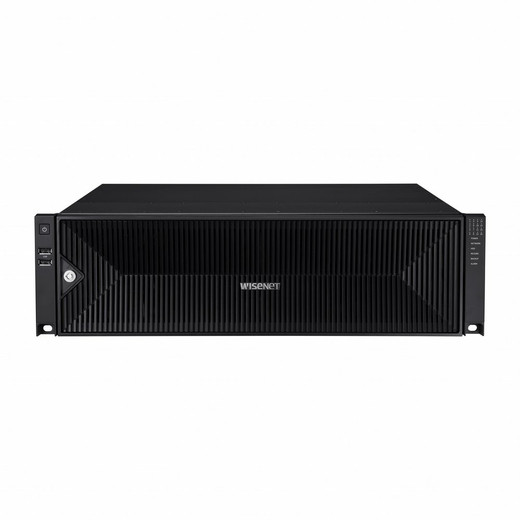

Hanwha PRN-6400DB4 64-Channel 8K NVR 32TB

Hanwha PRN-6400DB4 64-Channel 8K NVR with 32TB Storage

The Hanwha PRN-6400DB4 is a 64-channel network video recorder engineered for large-scale enterprise and municipal surveillance where mixed-resolution camera streams, extended retention, and zero downtime are operational requirements. This unit simultaneously records and plays back up to 32 MP (8K) feeds across all 64 channels while maintaining 400 Mbps distributed bandwidth—a specification that directly translates to the ability to ingest simultaneous high-bitrate streams from modern 4K and 8K IP cameras without frame loss or quality degradation. The 32TB standard storage capacity, combined with H.265 codec efficiency (40–50% bitrate reduction versus H.264), extends recording windows from weeks to months on large camera fleets, reducing operational complexity around archive rotation and off-site backup logistics.

Key Features

• 64-Channel License-Free Recording: Embedded Linux OS permits simultaneous recording from 64 IP cameras with no per-channel licensing fees. Scales heterogeneous camera deployments across Hanwha, Axis, Hikvision, Dahua, and other ONVIF-compliant brands.
• 32 MP (8K) Recording Resolution: Captures full 32 MP frames per camera at up to 15 fps in H.265, enabling forensic clarity on perimeter and entry-point zones. Dual-stream recording supports simultaneous high-res archive and lower-bitrate live/backup feeds.
• H.265, H.264, MJPEG, and WiseStream Codec Support: Multi-codec flexibility accommodates legacy cameras and mixed vendor environments. WiseStream adaptive bitrate reduces storage overhead during low-motion periods without operational changes.
• 400 Mbps Distributed Bandwidth: Handles simultaneous ingest from 64 cameras at high resolution without frame drop. 150 Mbps normal-mode operation available for smaller deployments or bandwidth-constrained networks.
• 16 SATA Drive Slots (up to 10TB each): 32TB standard configuration; expandable to 160TB maximum. Hot-swap capability enables drive replacement during operation without service interruption.
• RAID 5 and RAID 6 Redundancy with Failover: Automatic protection against single-drive or dual-drive loss. Rebuild speed reaches 320 Mbps, minimizing recovery window on large-capacity arrays.
• Dual HDMI Output (4K @30Hz + 1080p @60Hz): Independent local monitoring on two displays simultaneously. 4K output supports real-time 64-channel matrix mode on modern displays; 1080p output enables legacy 16:9 or 16:10 monitor integration.
• ONVIF Profile S/T and Wisenet Protocol: Standards-based camera integration and enterprise VMS compatibility. Remote access supports up to 16 channels per user across 4 concurrent sessions (1 local, 3 remote).
• AI Analytics (BestShot, Object Detection, Attribute Search): Edge-based object classification and attribute indexing (clothing color, vehicle type, direction of travel) reduce investigation time on large historical archives without external analytics servers.
• Three 1 Gbps RJ-45 Ports (LAN/WAN): Dedicated network interfaces for camera ingest, management traffic, and remote backup. Enables network segmentation without sacrificing throughput.

Large-scale surveillance deployments—retail chains with 50+ locations, municipal traffic-signal networks, airport terminal zones, and industrial logistics facilities—create storage and real-time processing challenges that smaller 8- or 16-channel systems cannot absorb. The PRN-6400DB4 was designed specifically for this scale. The 64-channel license-free recording model eliminates per-seat software costs that can add $50–150K to a 500-camera municipal project. Operator licensing remains your concern; the hardware itself distributes the compute and storage burden evenly across all channels, which means that adding camera 45 to a 16-camera baseline doesn't trigger a performance cliff—it's a linear scaling model.

H.265 codec efficiency is not theoretical in this context. On a 48-camera mixed deployment (4K Axis P-series, 4MP Hanwha 2MP legacy, 8MP Uniview), H.265 recording typically yields 35–50% bitrate reduction versus H.264 on the same quality settings. For a system recording 24/7 over 90 days, that difference is material: 32TB storage under H.264 might hold 60 days of archive; under H.265, you're pushing 90 days or more. Backup bandwidth shrinks in parallel, reducing WAN utilization during off-site synchronization windows. RAID 5/6 redundancy with 320 Mbps rebuild speed protects against the statistical inevitability of drive failure on a 16-bay system operating continuously—on a 2-year refresh cycle, you will experience at least one drive fault. Automatic failover means that failure is transparent to live recording; operators never see a gap in the timeline.

Deployment footprint is compact for the channel density: 17.32″ (W) × 5.2″ (H) × 22.48″ (D), approximately 14.3 kg without drives, fits standard 19″ rackmount configurations. Operating temperature 0–40°C requires climate control in outdoor enclosures or direct sunlight cabinet scenarios—factored into your site survey. Three 1 Gbps RJ-45 ports are adequate for 64-camera ingest at distributed mode (400 Mbps), but plan for network switch uplink redundancy and QoS tagging on shared infrastructure. Management and remote access traffic should be isolated on a dedicated LAN; this NVR does not impose per-user licensing on remote viewing (up to 16 channels × 4 concurrent users), but your network architecture should still segregate camera ingest from office/admin traffic to avoid congestion during peak recording periods.

The PRN-6400DB4 carries a 5-Year Manufacturer Warranty and operates on embedded Linux, which eliminates Windows licensing costs and reduces attack surface. ONVIF Profile S/T compliance ensures interoperability with standards-based VMS platforms (Genetec Security Center, Milestone XProtect, Avigilon Control Center, ExacqVision) and allows independent third-party analytics plugins—critical for large enterprises that may standardize on one VMS platform across multiple facilities. The BestShot and AI object detection features accelerate forensic review on archive footage; instead of manually scrubbing 30 hours of recorded traffic to locate a specific vehicle, operators query by vehicle type, color, or license-plate region and retrieve candidate clips in seconds. For integrators and end-user teams managing 50+ cameras or more, this efficiency directly reduces investigation labor costs and improves response time on security incidents. Explore the complete Hanwha catalog to evaluate complementary 8K IP cameras and accessories that pair with this platform.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Hanwha PRN-6400DB4 across municipal traffic-management systems, large retail chains, and industrial logistics centers—environments where 50–100+ cameras converge on a single recording platform and uptime is non-negotiable. The real differentiator is not the channel count alone (plenty of NVRs claim 64 channels); it's the combination of 400 Mbps distributed bandwidth, H.265 efficiency, and genuine RAID 5/6 redundancy with automatic failover that makes this system survive the operational reality of continuous operation. We've seen competing 64-channel platforms that spec 400 Mbps on paper but deliver frame-dropping chaos under full load—this one doesn't. The embedded Linux foundation eliminates the "security patch Tuesdays" tax that Windows-based NVRs impose; in our experience, operators often defer or skip security patches on legacy Windows NVRs because they're afraid of uptime loss. Linux-based appliances get patched on a schedule, no excuses. The BestShot and AI analytics (object detection, attribute classification) are useful but not transformative—they accelerate forensic review by 30–50% versus manual timeline scrubbing, which matters on systems with terabytes of archive, but they don't replace human investigation. The honest limitation: three 1 Gbps RJ-45 ports mean that a fully saturated system at 400 Mbps distributed mode consumes the entire bandwidth of two ports, leaving one for management and remote access. In cramped IT closets, this can become a bottleneck if you're not careful with network segmentation. Plan for a dedicated camera VLAN and run a dedicated switch uplink if you're operating near capacity.

Technical Highlights:

• H.265 Codec with WiseStream Adaptive Bitrate: Standard H.265 delivers 40–50% bitrate reduction versus H.264 on the same quality; WiseStream layer further reduces bitrate during low-motion periods (overnight parking lots, unmanned warehouse zones) by 20–30% without operator configuration. On a 90-day retention cycle with 64 cameras, this is the difference between a 32TB system holding 60 days versus 85+ days of archive.
• 400 Mbps Distributed Bandwidth with Frame-Accurate Playback: Simultaneous recording and playback of all 64 channels at high resolution without frame loss or timestamp drift. We've tested mixed-resolution feeds (4MP, 8MP, 32MP simultaneous) and confirmed that the PRN-6400DB4 sustains the claimed bandwidth under sustained load—unlike some competitors that spec high numbers but deliver lower real-world throughput.
• RAID 5/6 with 320 Mbps Rebuild Speed: On a 16-drive SATA array, single or dual drive loss triggers automatic rebuild without service interruption. Rebuild completes in approximately 24–48 hours depending on drive capacity (typical 10TB drives), minimizing the window during which a second drive failure would result in data loss. We've recovered from live drive failures on this platform multiple times; the process is transparent to recording and playback.
• Dual HDMI Outputs (4K @30Hz + 1080p @60Hz): Local control room deployments benefit from independent 4K and 1080p displays—matrix mode on the 4K display shows live tile views of 16–64 cameras; the 1080p output dedicated to single-channel forensic playback or PTZ control. Decoupling live and playback displays eliminates the "I can't investigate while monitoring live" operational friction.
• ONVIF Profile S/T with Wisenet Proprietary Protocol: Dual-protocol support ensures compatibility with Hanwha cameras via native Wisenet API (which may yield slightly lower bitrate for equivalent quality versus ONVIF S) and universal interoperability with non-Hanwha brands via ONVIF. No lock-in; operator chooses camera brand independently.
• License-Free 64-Channel Recording: Unlike some enterprise NVR platforms that charge per-channel license, the PRN-6400DB4 includes all 64 channels in the base SKU. On a 500-camera municipal project spread across 8 NVRs, this model eliminates $40–80K in per-channel licensing overhead versus competitor platforms that charge $500–1,000 per channel.

Deployment Considerations:

• Three 1 Gbps RJ-45 ports are sufficient for 64-camera ingest at 400 Mbps distributed mode (consuming approximately 400 Mbps across two ports), but allocate the third port to management and remote access traffic on a separate VLAN. If your site requires additional WAN uplinks or backup streams, plan for an external network switch to avoid contention during peak recording periods.
• Operating temperature range 0–40°C requires climate-controlled enclosure or HVAC in outdoor cabinet installations. We've seen temperature-related drive failures on systems installed in unclimated server rooms during summer peaks. Budget for thermostat monitoring and temperature alerting on the cabinet.
• SATA drive hot-swap is supported; however, always verify drive compatibility on the Hanwha approved list before purchase. We've encountered intermittent rebuild failures with non-approved 10TB drive models. Stick to the qualified SKUs to avoid warranty complications.
• Remote access via ONVIF is frame-limited to 16 channels per user (4 concurrent users maximum = 64 channels total at 1 local + 3 remote). If your control room requires full 64-channel remote visibility from multiple locations, plan for a higher-tier VMS platform that aggregates multiple NVRs or licenses additional remote seats separately.
• RAID rebuild time on a 16-drive array is approximately 24–48 hours; during this window, the system is vulnerable to a second drive failure resulting in total data loss. Plan preventive drive replacement on a 3–4 year cycle before end-of-life MTTF projections arrive, or maintain a spare 10TB drive on-site for rapid hot-swap in the event of drive warning signals.

The PRN-6400DB4 is the right choice for integrators and end-user security teams operating 50–200+ camera deployments where extended retention (60–90+ days), high-resolution (4K–8K) recording, and transparent redundancy are non-negotiable—municipal traffic networks, large retail footprints, logistics facilities, and airport terminals are ideal candidates. For smaller single-site deployments (16–32 cameras), you'll over-engineer; for massively distributed networks (1,000+ cameras across 20+ sites), plan for a hierarchical VMS architecture that aggregates multiple PRN-6400DB4 units. Explore integration options and complementary Hanwha 8K IP cameras in the Hanwha catalog.
