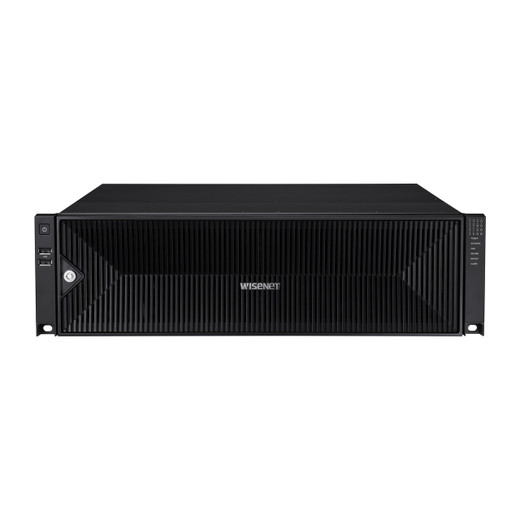

The Hanwha PRN-6400DB4-112TB is a professional-grade 64-channel network video recorder designed for large-scale surveillance deployments requiring exceptional storage capacity and 8K resolution support.
This NVR delivers superior image quality through support for 32MP and 20MP+ camera feeds, enabling crystal-clear video capture across dozens of monitored zones simultaneously. The recorder supports multiple compression standards—H.265, H.264, and MJPEG—allowing operators to optimize bandwidth and storage efficiency based on deployment requirements. H.265 compression is particularly valuable in high-channel-count installations, reducing bandwidth demands while maintaining image fidelity. With 112TB of onboard storage, the system provides extended recording windows suitable for enterprise, retail, transportation, and critical infrastructure environments.
Built on embedded Linux architecture, the PRN-6400DB4-112TB prioritizes stability and reliability in 24/7 operation. The unit features a robust metal chassis with compact dimensions (17.32" W × 5.2" H × 22.48" D), enabling rack integration in server environments. Operating temperature range of 0°C to +40°C ensures performance in both climate-controlled facilities and moderately challenging environments. Three 1Gbps Ethernet ports (RJ-45) support LAN/WAN connectivity, enabling remote management, failover configurations, and integration with distributed monitoring centers.
ONVIF compatibility ensures seamless interoperability with cameras and software from multiple manufacturers, protecting infrastructure investment and simplifying system expansion. The recorder incorporates advanced analytics capabilities including defocus detection, dynamic event triggering, and user-defined event rules, enabling intelligent alerting without constant manual monitoring. Audio support via G.711, G.726, and AAC compression (16/48kHz) enables two-way communication and audio event correlation where required.
This system excels in large enterprise campuses, multi-location retail chains, transportation hubs, and government facilities where 64-channel capacity, high resolution support, and extended storage justify the investment in a dedicated NVR platform.
- 64-channel network video recorder with 112TB storage capacity
- Supports 32MP and 20MP+ camera resolutions for superior image detail
- H.265, H.264, and MJPEG compression for bandwidth optimization
- ONVIF-compliant for multi-vendor camera and software compatibility
- Three 1Gbps Ethernet ports for distributed network deployment
- Advanced analytics: defocus detection, dynamic events, custom user events
The PRN-6400DB4-112TB targets operators managing sprawling multi-building or multi-site environments where 64-channel capacity and 112TB storage eliminate the need for external storage arrays. H.265 codec adoption is essential in this class—it cuts bandwidth by roughly 50% versus H.264, a critical advantage when aggregating 32MP and 20MP streams. ONVIF support makes this recorder a safe choice for mixed-vendor ecosystems, and embedded Linux stability is proven in enterprise installations running 24/7/365. Consider this unit when your deployment demands exceed 32 channels and resolution clarity is non-negotiable.
