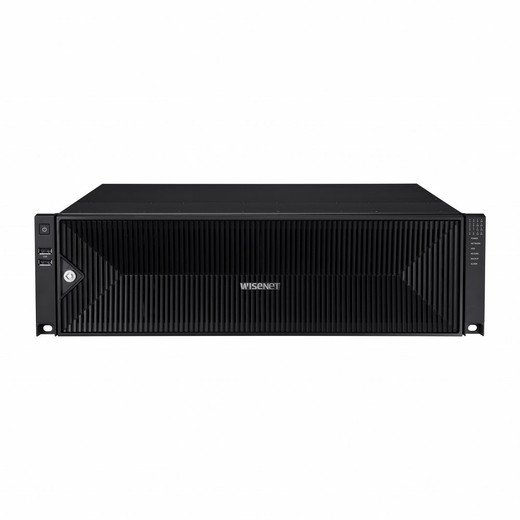

Hanwha PRN-6400DB4 64-Channel 8K NVR 88TB
The Hanwha PRN-6400DB4 is an enterprise-grade 64-channel network video recorder built on Intel architecture for large-scale surveillance deployments. Supporting up to 32MP resolution recording and featuring 88TB raw storage capacity, this NVR delivers the bandwidth and redundancy required for mission-critical security infrastructure with license-free channel operation.
Key Features
- 64-channel network camera input with up to 32MP resolution support
- H.265, H.264, and MJPEG codec support with WiseStream bandwidth optimization
- Up to 16 internal SATA HDDs (10TB maximum per drive) for 88TB raw capacity
- RAID 5 and RAID 6 redundancy with Automatic Recovery Backup (ARB)
- Dual HDMI outputs: 4K @ 30Hz (HDMI 1) and 1080p @ 60Hz (HDMI 2)
- Simultaneous 112-channel playback (64 local + 16 remote per user)
- Web UI 2.0 with plugin-free remote access
- Fisheye dewarping for local and CMS playback modes
Recording & Storage Specifications
The PRN-6400DB4 delivers flexible recording performance across three operational modes: 400 Mbps in distributed mode, 150 Mbps in normal mode, and 320 Mbps during RAID mode degradation or rebuild. Dual-stream recording enables simultaneous high-resolution archival and lower-bandwidth event streaming, while continuous, scheduled, and pre/post-event recording options provide comprehensive coverage flexibility. The system supports bookmark capability for rapid incident annotation and retrieval.
Storage redundancy is ensured through enterprise-grade RAID 5 and RAID 6 configurations with automatic fault recovery. The 88TB raw capacity (88 x 1TB or 16 x 10TB maximum drives) accommodates extended retention requirements for large installations without requiring external storage expansion.
Display & Playback
Multi-screen display modes include dynamic layout scaling and virtual channel views with up to 64-division clone mode. Playback performance reaches 32MP resolution at 15fps H.265, 12MP at 30fps H.265, and 8.3MP at 120fps for high-frame forensic analysis. Bandwidth-efficient playback up to 64 Mbps supports simultaneous multi-user remote access without server strain.
Typical Applications
- Large-scale commercial and industrial facilities
- Multi-site enterprise surveillance networks
- Government and critical infrastructure monitoring
- Transportation hubs and logistics centers
- Data centers and server rooms requiring extended recording retention
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PRN-6400DB4 is positioned for organizations requiring 64-channel capacity with minimal licensing overhead and maximum storage density. The dual-mode recording approach (high-resolution continuous + event-triggered) optimizes storage utilization without sacrificing archival quality. RAID 6 support provides superior fault tolerance in mission-critical environments where drive failure during rebuild operations poses recovery risk.
The 400 Mbps distributed bandwidth accommodates simultaneous 32MP streams across the full channel set, distinguishing this model from mid-tier alternatives limited to lower aggregate throughput. Web UI 2.0 eliminates plugin dependencies, reducing deployment complexity in air-gapped or restricted network environments.
