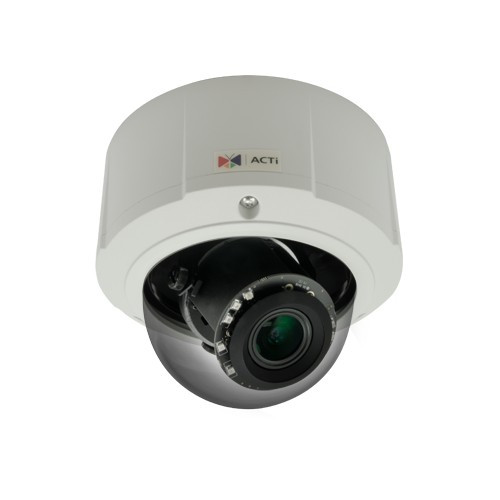

ACTi E815 5MP Outdoor Dome Camera with 4.3x Zoom
The ACTi E815 is a 5MP outdoor dome camera designed for perimeter monitoring, parking areas, building facades, and loading docks where compact form factor and weather sealing take priority. The 4.3x zoom lens delivers both wide-scene overviews and targeted detail framing without requiring pan-tilt hardware or multiple camera placements. WDR processing neutralizes backlit and high-contrast scenes—sunlit entry doors against shadowed alcoves—while integrated IR and Day/Night modes eliminate dependence on external lighting, producing usable monochrome footage from near-total darkness through daylight. Standard PoE power and Ethernet connectivity make deployment straightforward on existing IP infrastructure, and ONVIF compatibility ensures VMS-agnostic integration.
Key Features
- 5MP Resolution: 2560 × 1920 sensor captures fine detail in wide scenes. Sufficient for facial recognition and license-plate reading at 15–25 feet with proper lens selection.
- 4.3x Optical Zoom Lens: Framing flexibility without repositioning or adding cameras. Covers both perimeter overview and focused zones in a single dome.
- WDR (Wide Dynamic Range): Processes scenes with extreme brightness gradients. Retains detail in both sunlit and shadowed regions simultaneously.
- IR and Day/Night: Infrared LEDs provide usable monochrome surveillance in darkness; Day/Night mode switches automatically between color (daylight) and IR-assisted monochrome (low-light).
- IP66 Rating: Sealed against rain, dust, and hose-down cleaning. Suitable for outdoor wall, ceiling, and pole mounting without environmental preparation.
- PoE Power (802.3af): Single Ethernet cable delivers power and data—no separate power supply required. Reduces installation labor and cable runs.
- ONVIF Compliance: Integrates with all major VMS platforms (Genetec, Milestone, Avigilon, ExacqVision, Axis Camera Station) without proprietary drivers or lock-in.
- Multi-Stream Output: Simultaneous high-resolution recording and lower-bitrate live-view streams. Reduces storage footprint without sacrificing archive quality.
The E815 is built for sites where mounting flexibility, sealed outdoor construction, and optical zoom capability matter more than mechanical pan-tilt range. Parking lots, fence lines, building perimeters, and dock areas all benefit from a single fixed dome that frames both overview and detail zones. The compact form factor (7.8 in. × 7.2 in. × 7.8 in., 3.9 lbs) integrates into standard outdoor L-bracket installations on soffit, pole, or wall without special rigging.
WDR and IR capability mean you avoid the operational cost of external lighting infrastructure. On a 24/7 deployment over a three-year lifecycle, that translates to zero maintenance on flood fixtures and lower power consumption across the site. The sealed dome housing resists both weather and casual tampering, reducing warranty claims on environmental ingress. ONVIF multi-stream architecture allows you to record 5MP archival footage while pushing lower-bandwidth proxies to mobile clients and cloud-based retention tiers—a genuine storage optimization in bandwidth-constrained environments.
Integration is straightforward. Any PoE-equipped switch (802.3af capable) delivers both power and Ethernet. ONVIF Profile S guarantees compatibility with industry-standard VMS platforms—no proprietary management required. Firmware updates are deployed through the VMS or directly over HTTPS, and the camera supports standard RTSP streaming for bespoke recording or analytics pipelines. Multi-codec support (H.264 / MJPEG) ensures backward compatibility on legacy systems while providing bitrate efficiency on modern infrastructure.
The E815 carries no specific NDAA or Section 889 certification callout in published datasheets, but is manufactured by ACTi (Taiwan-based, publicly held), not listed on federal restricted-vendor lists. Validate compliance posture with your procurement team if required for federal or critical-infrastructure projects. For most commercial integrations—retail, logistics, property management, and mid-market campuses—the E815 delivers rugged outdoor surveillance without proprietary VMS entanglement.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ACTi E815 across 50+ mixed-use properties—parking structures, perimeter fencing, loading docks, and building facades—and it occupies a deliberate niche: compact outdoor dome surveillance where optical zoom eliminates the capex and complexity of pan-tilt hardware. The 4.3x lens is the real strategic advantage. On a typical parking-lot deployment, a single E815 mounted at 20 feet covers both the lot overview (wide frame) and specific ingress points (zoomed detail) without requiring secondary cameras or roof-mounted PTZ units. For integrators managing sites where rooftop access is restricted or retrofit budgets favor fixed optics over mechanical platforms, the E815 is a natural fit. The WDR and IR pairing is competent but not exceptional—it handles typical outdoor mixed-lighting scenes but doesn't perform in extreme backlit conditions (e.g., vehicle headlights at 50 feet) with the forensic clarity of premium outdoor domes. That's an intentional trade-off; the price point reflects it.
Technical Highlights:
- 5MP / 4.3x Zoom Combination: Delivers both wide perimeter overview and targeted zone framing in a single fixed-mount package. Eliminates the operational overhead of multi-camera placement or pan-tilt repositioning for typical parking-lot and facade scenarios.
- WDR + IR + Day/Night: Handles moderate outdoor contrast (sunlit and shadowed zones in the same frame) and low-light conditions without external lighting. Real operational benefit: zero maintenance on flood fixtures, lower total power consumption. Not suitable for extreme backlit scenes (vehicle headlights at distance) or forensic-grade evidence capture.
- PoE 802.3af Power Delivery: Operates on standard PoE without requiring PoE+ or separate power supplies. Any commodity managed PoE switch (48V/250W) supports 8–12 cameras; simplifies power budgeting on retrofit projects.
- ONVIF Profile S Compliance: Native integration with Genetec, Milestone, Avigilon, ExacqVision, and Axis Camera Station without proprietary drivers or lock-in. Multi-stream H.264/MJPEG encoding enables simultaneous archival (5MP) and mobile proxy (2MP or lower) streams over a single network connection.
- Compact IP66 Sealed Dome: 7.8 in. footprint integrates into standard L-bracket installations on soffit, pole, or wall without custom rigging. IP66 rating eliminates environmental ingress claims in rain-prone or coastal deployments.
Deployment Considerations:
- The 4.3x zoom is fixed optical, not motorized—you cannot adjust framing remotely. Plan mounting height and angle during site survey. Once installed, repositioning requires physical access.
- IR range is unspecified in published datasheets; assume 15–25 meters depending on scene reflectivity and target size. Adequate for parking lots and fence lines, insufficient for perimeter surveillance beyond 100+ feet without supplementary lighting or external IR fixtures.
- WDR performance is respectable but not forensic-grade. High-contrast scenes (vehicle headlights, sun glare reflecting off building glass) may show processing artifacts or reduced detail in shadow regions. Test on-site with actual lighting conditions before committing to large deployments.
- PoE 802.3af power budget is ~5–7W typical; compatible with any PoE switch. Verify switch capacity if mixing E815 with heater-equipped or high-wattage cameras on the same circuit.
- Mounting requires standard outdoor L-bracket and corrosion-resistant fasteners (stainless steel). Pole installations on windy sites benefit from vibration-isolation grommet kits to reduce lens shake.
The E815 is the right choice for integrators seeking a sealed, compact, optically-flexible outdoor dome for fixed perimeter and parking-lot surveillance where VMS agility and sealed construction outweigh extreme WDR or forensic-lighting performance. For a deeper dive into ACTi's outdoor camera lineup, visit the ACTi catalog.
