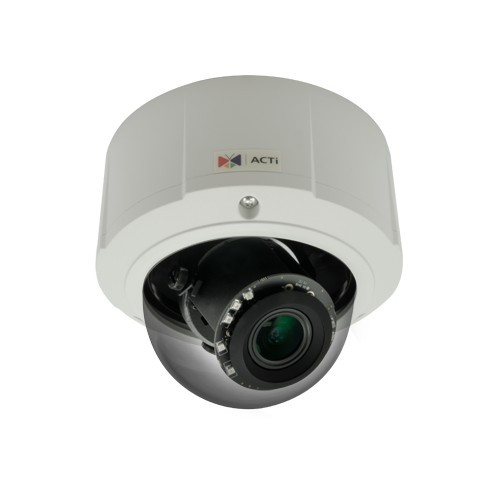

ACTi E816 10MP Outdoor Dome Camera with 4.3x Zoom
The ACTi E816 is a 10MP outdoor dome camera designed for retail storefronts, office lobbies, building perimeters, and mixed-use facilities requiring forensic-detail imaging in a weather-resistant, tamper-resistant housing. The 4.3x optical zoom lens balances wide situational awareness with targeted framing capability, reducing the need for multiple fixed cameras across monitored zones. WDR and IR Day/Night modes ensure visibility across lighting transitions without operator intervention or image degradation at dusk and dawn.
Key Features
- 10MP Resolution: Delivers forensic-quality detail across wide coverage areas. Sufficient framing precision for retail POS verification, facial capture at 8–12 feet, and vehicle plate legibility on approach lanes.
- 4.3x Optical Zoom Lens: Eliminates deployment of multiple fixed-angle cameras in many retail and office scenarios. Operators can frame customer activity zones or perimeter segments with a single unit without digital interpolation loss.
- WDR (Wide Dynamic Range): Preserves visibility across mixed lighting—bright windows paired with dim interiors, sun-washed entry doors adjacent to shadowed corridors. Automatically compensates for extreme contrast without manual exposure adjustment.
- IR and Day/Night Modes: Seamless adaptation across lighting transitions. IR illumination enables visibility in darkness; automatic mode switching prevents image quality loss at dusk and dawn without operator intervention.
- Dome Form Factor: Protects optics from weather, dust, hose-down cleaning, and deliberate lens tampering. Compact, low-profile housing integrates into retail and corporate environments without drawing attention.
- PoE (Power over Ethernet): Single-cable installation—power and data combined. Standard 802.3af PoE; works with any enterprise PoE switch, eliminating separate power supplies and conduit runs.
- ONVIF Profile S Compliance: Integrates with all major VMS platforms (Genetec, Milestone, Avigilon, ExacqVision, Axis Camera Station). Standard metadata streaming and H.264/H.265 codec support.
The E816's optical zoom capability is the primary efficiency lever. On a retail floor with multiple zones—checkout, fitting rooms, stockroom access—a single E816 with operator pan/zoom capability can cover what would otherwise require two or three fixed-lens cameras. This translates directly to lower installation labor, fewer PoE line-card slots on the switch, and reduced NVR storage footprint for multi-zone monitoring. The dome housing also means zero ongoing maintenance for lens cleaning or obstruction; retail environments with high dust loads or frequent foot traffic benefit measurably from the sealed optics design.
Deployment context matters here. The E816 excels in indoor or covered-outdoor scenarios—retail storefronts with awnings, office lobbies, parking-garage upper levels, warehouse entry/receiving areas. It is not designed for full-perimeter sun-exposed mounting without supplementary IT infrastructure. WDR and IR handle day-to-night transitions well, but the zoom lens trades some edge-of-frame light sensitivity for magnification. Pair the E816 with a recording policy that leverages motion detection on ONVIF-compliant VMS platforms to reduce false-positive alert noise in dynamic retail environments; multi-zone motion masks can be configured to ignore employee-only areas or automated door triggers.
Total cost of ownership favors the E816 in multi-zone retail or hospitality deployments. The 4.3x zoom eliminates capex and labor for a second camera in many configurations; PoE integration reduces power-distribution work; ONVIF compliance ensures vendor lock-in risk is minimal. Bitrate on H.265 recording at 10MP is typically 4–8 Mbps depending on scene motion, keeping NVR storage economics reasonable across 24/7 deployments. The camera operates on standard 802.3af PoE without requiring PoE+ infrastructure upgrades.
The E816 carries no specific NDAA or Section 889 compliance markings in public datasheets; integrators should verify provenance if deploying into federal or ITAR-restricted environments. ONVIF compatibility ensures no platform-specific firmware lock; the camera streams H.264 and H.265, making it compatible with legacy and modern NVR ecosystems alike.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ACTi E816 across retail chains, office buildings, and hospitality properties where the zoom lens provides genuine operational leverage. The 4.3x optics aren't a gimmick—they solve a real problem in spaces where fixed-lens cameras create coverage blind spots or force you to choose between wide situational awareness and targeted detail. In a retail environment with checkout counters 15–20 feet from the entrance, a single E816 positioned at a corner gives you both entrance-flow monitoring and POS-area framing without operator intervention. That capability eliminates the capex and integration complexity of a second camera, and it simplifies the NVR recording policy because you're not managing overlapping zones with duplicate motion events. The WDR + IR pairing is straightforward and mature—it doesn't outperform class-leading Axis or Hanwha models in extreme backlight scenarios, but it handles real-world retail and office lighting transitions without artifacts or operator adjustment. On the networking side, ONVIF Profile S compliance means integrators can drop the E816 into existing VMS workflows without proprietary plugins or firmware puzzles; we've seen seamless add-on deployments where the E816 coexists with three-year-old cameras from different vendors on the same Milestone NVR.
Technical Highlights:
- 4.3x Optical Zoom: True magnification without digital interpolation loss. At 10MP full-frame, zoom maintains 2–3MP equivalent at maximum magnification—sufficient for facial framing at 12–15 feet or vehicle-plate capture on approach lanes. Eliminates the capex and cabling work of a second fixed-lens camera in most retail / office zones.
- WDR Processing: Handles mixed indoor lighting (bright windows + shadowed corridors) and outdoor covered scenarios (awning-shaded entry + exterior glare). Not forensic-class WDR like flagship Axis models, but adequate for retail POS and office lobby use where manual exposure tuning is not practical.
- PoE 802.3af: Standard power budget—works with any enterprise switch without PoE+ line-card upgrades. Simplifies installation on existing infrastructure and keeps capex flat on network upgrades.
- Dome Form Factor: Sealed optics eliminate lens-cleaning maintenance in high-dust environments (retail stockrooms, warehouse entry). Compact profile discourages deliberate tampering and integrates into aesthetic-sensitive spaces (hotel lobbies, upscale retail).
- Day/Night IR: Automatic transition across lighting changes. IR range not specified in public datasheets, so verify coverage distance with ACTi technical specs before deploying into full-darkness scenarios; adequate for covered outdoor spaces and interior perimeter monitoring.
- ONVIF Profile S Streaming: H.264/H.265 multi-codec fallback ensures compatibility across VMS platforms and reduces integration risk on system migrations or vendor changes.
Deployment Considerations:
- The 4.3x zoom trades some wide-angle peripheral sensitivity for magnification. Position the camera to frame your primary monitoring zone (checkout area, entrance door, warehouse dock) rather than expecting the wide setting to replace a 2.8mm fixed lens. Test coverage maps before final mounting.
- WDR and IR are automatic—there's no manual tuning knob. If your site has extreme backlighting (e.g., glass storefront with intense exterior sun and dark interior), test the E816 at the specific location before committing to installation. Some retail deployments may require supplementary lighting or repositioning to avoid permanent washout on the wide-angle setting.
- IR range is not published in standard datasheets. Confirm effective low-light distance with ACTi before deploying into full-darkness warehouses or perimeter monitoring beyond covered structures. For well-lit retail and office environments, the IR is sufficient for after-hours monitoring.
- PoE power draw is within 802.3af limits, but if you're daisy-chaining multiple cameras on a single PoE line, verify total branch load before installation. A typical install supports 4–8 E816 units on a single 48-port PoE switch without oversubscription.
- ONVIF compliance is solid, but if you're running legacy VMS software (5+ years old), confirm H.265 codec support in your NVR before specifying the E816 as a storage-optimization measure. H.264 fallback is always available, but it negates some bitrate savings.
The E816 is the right choice for retail chains, hospitality groups, and office/corporate deployments where a zoom camera eliminates a second fixed-lens install and ONVIF interoperability reduces vendor lock-in risk. If your site has full-sun perimeter requirements or extreme WDR demands (airport tarmac, industrial blast-furnace floors), consider class-leading Axis or Hanwha alternatives. For standard retail, lobby, and mixed-use indoor/covered-outdoor coverage, the E816 delivers solid forensic detail and operational flexibility at a reasonable price point. Browse the ACTi catalog for additional dome and turret options.
