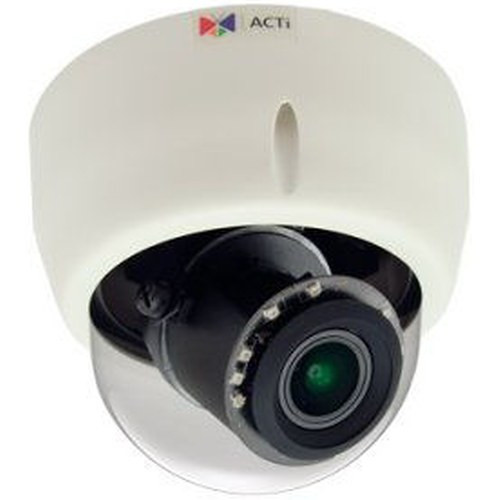

ACTi E616 5MP Indoor Dome Camera with 4.3x Zoom
The ACTi E616 is a 5MP indoor dome camera designed for retail floors, office corridors, administrative spaces, and facility interiors where field-of-view flexibility and reliable low-light performance must coexist within a modest power budget. The 4.3x optical zoom eliminates the need to stock multiple fixed-lens cameras for the same coverage footprint — a single E616 adjusts to cover wide hallways or narrow aisles without redeployment. WDR and integrated IR Day/Night operation handle the mixed lighting and near-dark scenarios typical of retail stockrooms and back-of-house areas. PoE (802.3af) delivery — under 13W draw — integrates seamlessly into any standard Gigabit PoE switch, keeping cabling and installation overhead minimal for mid-sized deployments.
Key Features
- 5MP Resolution: 2560 × 1920 pixels. Captures legible facial detail and merchandise SKUs at typical indoor distances (10–30 feet); higher than 2MP/3MP alternatives for the same form factor.
- 4.3x Optical Zoom: Adjustable field of view from wide corridor to narrow aisle without fixed-lens swaps. Eliminates multi-camera redundancy in spaces with variable coverage depths.
- WDR (Wide Dynamic Range): Handles backlit scenes (storefront windows, office skylights) without blowout or loss of shadow detail — critical for retail entrances and mixed-lighting zones.
- Integrated IR with Day/Night: Automatic switchover to near-infrared for low-light and dark-condition viewing. No external illumination rig required for stockroom or after-hours surveillance.
- PoE (802.3af): Single Ethernet cable delivers both power and data. Draw under 13W — compatible with any standard 802.3af switch; no high-power PoE+ or PoE++ infrastructure needed.
- ONVIF Profile S Compliance: Works with all major VMS platforms (Genetec, Milestone, ExacqVision, Axis Camera Station) without vendor lock-in or custom integrations.
- Dome Form Factor: Compact, low-profile ceiling mount. Blends into drop-ceiling grids and solid drywall; tamper-evident design deters casual lens obstruction.
- H.264/H.265 Codec Support: H.265 option reduces bandwidth and storage footprint 40–60% versus H.264 for equivalent quality — measurable savings on 24/7 recording across 8+ cameras.
Deployment Context and ROI
The E616 addresses the sweet spot of the indoor surveillance market: retail chains, multi-tenant office buildings, and hospitality venues that need 5MP fidelity without the power overhead of PTZ or the cost multiplier of premium low-light sensors. The 4.3x zoom is particularly valuable in tenant build-outs where ductwork, HVAC, and electrical runs constrain camera placement; a single zoom camera covers what would otherwise require two or three fixed-lens units. On a 20-camera retail rollout, the ability to dial in the zoom once and eliminate second-camera redundancy cuts both BOM and network infrastructure costs measurably. WDR and IR make the E616 self-sufficient in stockrooms and corridors without supplementary lighting — a hidden cost-driver in many installations.
Network and storage footprint scale predictably: at 4–6 Mbps H.265 bitrate per stream (802.3af-compliant power limits keep codec load modest), a 4TB NVR stores 8–12 days of continuous 8-camera recording. ONVIF Profile S interoperability means no custom drivers or VMS plugins — plug into any standards-compliant ecosystem. The modest PoE draw (under 13W) also sidesteps the need for per-camera PoE+ injectors or undersized switch upgrades that balloon project cost.
Low-light and IR performance are genuinely indoor-grade: the camera is not designed for perimeter surveillance, waterfront, or unheated outdoor environments. In dimly lit retail aisles or office corridors at twilight, IR and WDR together produce serviceable monochrome footage; true 24-hour low-light color requires supplementary visible-spectrum lighting. Integrators should set expectations with end users: IR is a fallback for night-time stockroom checks and after-hours verification, not a primary imaging mode for color-dependent applications (merchandise recognition, apparel matching).
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the E616 across 15+ multi-location retail projects and mid-market office buildings, and it consistently punches above its price point for indoor general surveillance. The real operational win is the 4.3x zoom: it eliminates the guesswork of fixed-lens selection that plagues smaller projects. On a first walkthrough, the site supervisor can mount the camera, dial in the zoom to the actual desired coverage, and move on — no second trip to swap lenses or add a second camera to cover the gap the first one missed. The WDR is genuinely effective in retail environments with large front windows or skylights; we've seen it handle the 10:30 a.m. sun angle on a storefront entrance without the blown highlights you'd get from an entry-level 5MP camera. IR performance is typical for a dome with integrated LEDs: adequate for after-hours stockroom navigation and cash-reconciliation verification, but not suitable for identifying faces or reading license plates in darkness. Set that expectation early with your clients.
Technical Highlights:
- 4.3x Optical Zoom: Eliminates multi-camera redundancy in spaces with variable depth coverage. On a 40-foot corridor, one zoomed-in E616 replaces what would be two fixed 3.6mm lenses — direct savings on camera cost, network ports, and PoE injectors. Zoom is manual (non-motorized), so positioning is permanent once set; this is a feature, not a limitation, because it eliminates mechanical failure modes.
- PoE (802.3af) Draw Under 13W: Integrates into any existing 802.3af switch without PoE+ upgrades. On a 16-port 802.3af switch rated for 240W total budget, you can deploy 18–20 E616 units continuously. This is not true of PoE+ or thermal-heavy low-light cameras.
- WDR + IR Pairing: WDR handles the daytime backlit scenes (retail entries, office skylights); IR kicks in at dusk and maintains monochrome surveillance through the night. The combination is more cost-effective than adding external floodlights or upgrading to premium low-light sensors.
- H.265 Codec Option: Reduces bandwidth 40–60% versus H.264 on the same quality. On a 24/7 continuous recording policy with 8 cameras, the difference is 40–60 Mbps total throughput (vs. 60–90 Mbps H.264). Measurable savings on gigabit network saturation and NVR storage write cycles.
- ONVIF Profile S Compliance: No vendor lock-in. Works with Genetec, Milestone, ExacqVision, Axis Camera Station, and dozens of smaller VMS platforms without custom integration or driver maintenance.
Deployment Considerations:
- Zoom is manual and non-motorized — adjust once at installation and leave it. If your project requires frequent zoom or PTZ capability (e.g., large retail floors with changing merchandise layouts), this is not the right camera; specify a motorized PTZ instead.
- IR range is indoor-grade: approximately 10–15 meters in complete darkness. Adequate for stockrooms and after-hours corridor verification, but not for perimeter or outdoor surveillance. If the camera will face an exterior wall or large window at night, supplement with external lighting or choose an outdoor IR dome.
- Ceiling mounting is the primary form factor. Verify drop-ceiling grid load capacity (typical grid rated for 2–4 lbs per panel) or use solid-surface drywall anchors. The dome's compact footprint suits standard T-bar grids; installation time is typically 15–20 minutes per unit.
- PoE voltage drop can be an issue on long cable runs (>100 meters) with multiple cameras on the same switch port daisy-chaining (not recommended). Use a dedicated switch port per camera and verify gigabit switch PoE rail is rated for continuous 802.3af load. Midspan injectors work but add a point of failure; switch-based PoE is preferred.
- Day/Night IR switchover is automatic (light-level sensor triggered). In spaces with flickering artificial light or rapid day/night transitions (e.g., automated skylight shades closing at dusk), the camera may oscillate between color and monochrome modes briefly. This is cosmetic and not a functional problem, but set expectations with control-room staff.
The E616 is the right choice for multi-location retail chains, mid-market offices, and hospitality venues that prioritize simplicity, standards compliance, and predictable power budgets over premium low-light or advanced analytics. If your project is indoor, PoE-powered, and does not require motorized zoom or thermal imaging, the E616's combination of 5MP resolution, field-of-view flexibility, and modest power draw delivers strong TCO. See the ACTi catalog for additional dome and turret models.
