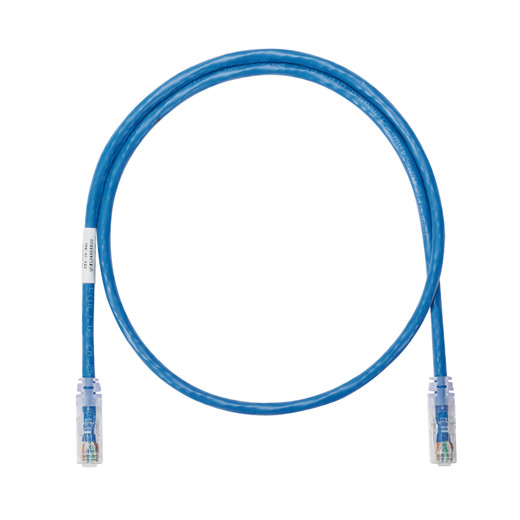

Panduit NK6PC3BUY Cat 6 UTP Patch Cord 3ft Blue

Panduit NK6PC3BUY NetKey Cat 6 UTP Patch Cord, 3 ft, Blue

The Panduit NK6PC3BUY is a 3-foot Category 6 UTP patch cord engineered for high-density patch panel and outlet terminations where frequent moves, adds, and changes demand reliability and accessibility. Built with 24 AWG stranded copper conductors in a U/UTP construction, this blue jumper exceeds ANSI/TIA-568.2-D Category 6 channel requirements and supports Gigabit Ethernet, PoE/PoE+/PoE++ (IEEE 802.3bt Type 3 and Type 4), VoIP, and 622 Mb/s ATM. Panduit's patented tangle-free latch design eliminates snags during extraction in congested patch fields, and the slender strain relief boot fits into tight rack spaces without blocking adjacent ports. Every cord ships with 100% performance certification and cULus listing.

Key Features

• Patented tangle-free latch prevents snags and enables one-hand release in crowded patch panels
• 24 AWG stranded copper for flexibility during repeated plugging cycles
• Exceeds Cat 6 channel specs; supports 10/100/1000BASE-T Ethernet, PoE++ 802.3bt Type 3/4, VoIP
• Slender strain relief boot allows full-density patching in 1U panels and tight rack spaces
• 100% performance tested against ANSI/TIA-568.2-D and ISO 11801 Class E parameters
• cULus Listed (File E129886), RoHS compliant, CE marked
• Blue jacket for visual circuit identification in structured cabling systems

The NK6PC3BUY uses 24 AWG stranded copper pairs in an unshielded twisted pair (U/UTP) configuration, terminated with Panduit's enhanced-performance modular plugs. Stranded conductors provide the flexure endurance required for patch cords subject to frequent reconnection, whereas solid conductors in horizontal cabling remain in fixed terminations. Each cord undergoes 100% electrical testing against ANSI/TIA-568.2-D and ISO 11801 Class E parameters, verifying insertion loss, return loss, NEXT, PS-NEXT, ACR-F, and PS-ACR-F across the 1–250 MHz bandwidth. This testing protocol ensures every jumper meets the channel performance budget, critical when deploying Gigabit Ethernet over Cat 6 infrastructure or planning for future 2.5GBASE-T/5GBASE-T upgrades. The cord complies with ANSI/TIA-1096-A (performance requirements for shielded and unshielded twisted-pair patch cords), IEC 60603-7 (8-position modular connectors), and UL 1863 / CSA C22.2 for communications cables. It is cULus Listed (File E129886), CE compliant, and RoHS conformant.

Designed for use in all work area outlets and patch panel cross-connects, the NK6PC3BUY is wired to be compatible with both T568A and T568B wiring schemes, simplifying inventory management in mixed-standard installations. It supports Ethernet 10BASE-T (10 Mb/s), 100BASE-T Fast Ethernet, and 1000BASE-T Gigabit Ethernet, as well as 155/622/1200 Mb/s ATM, Token Ring 4/16, and Voice over IP (VoIP) applications. The cord is rated for IEEE 802.3af (PoE, 15.4 W), 802.3at (PoE+, 25.5 W), and 802.3bt Type 3 (60 W) and Type 4 (100 W) Power over Ethernet, making it suitable for IP cameras, wireless access points, VoIP phones, LED lighting controllers, and other powered-device endpoints. The 3-foot length is ideal for server-to-switch connections in the same rack, patch panel to switch uplinks in telecoms rooms, and work area outlet to desktop device runs. The blue jacket enables color-coded circuit identification in structured cabling systems—common practices include reserving blue for data VLANs, VoIP circuits, or specific building zones.

The tangle-free latch is a field-proven differentiator in crowded patch fields: traditional latch tabs snag on adjacent cables during extraction, requiring two hands and often damaging neighboring cords. Panduit's latch design features a protected release geometry that allows single-finger actuation without interference, reducing MACs time by an estimated 30% in high-density 48-port panels. The slender strain relief boot measures approximately 15 mm in diameter (versus 18–20 mm on standard boots), enabling full 48-port patching in 1U panels without blocking airflow or forcing skipped ports. For integrators managing IP surveillance networks, access control panels, or VoIP PBX systems where patch density and uptime are critical, the NK6PC3BUY delivers the mechanical robustness and electrical performance required for Tier 2 data center and enterprise telecom room installations.
