Panduit UTP28SP3PK 3ft Cat 6 Patch Cord

Panduit UTP28SP3PK TX6-28 Cat 6 UTP Patch Cord

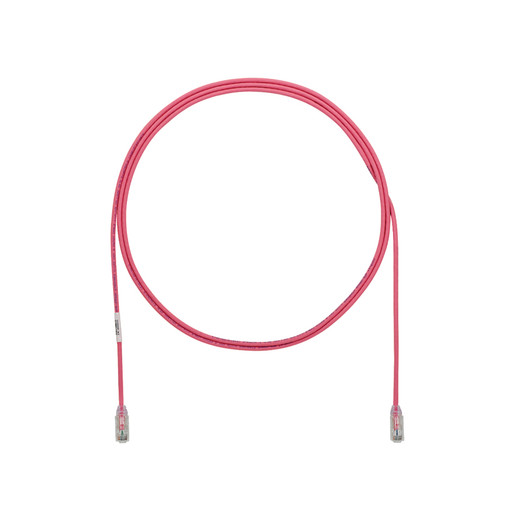

The Panduit UTP28SP3PK is a 3-foot Category 6 UTP patch cord engineered for high-density network installations where cable management, airflow, and rapid documentation matter. Built on the TX6-28 platform with compact 28 AWG stranded copper conductors—versus the industry-standard 24 AWG—this pink patch cord reduces bundle diameter by nearly 30%, simplifying routing in congested patch panels and equipment racks. The patented tangle-free latch design eliminates the snags and release delays that slow moves, adds, and changes, while pre-installed RapidID barcodes enable one-scan port mapping when paired with Panduit's RapidID software. Every cord ships 100% performance-tested for wire map, NEXT, and return loss, ensuring plug-and-play reliability in Gigabit Ethernet, PoE/PoE+/PoE++, and multi-gigabit applications.

Key Features

• Compact 28 AWG Design: 0.150" (3.8mm) overall diameter reduces patch-panel congestion, improves airflow in enclosed racks, and simplifies cable dressing in high-density deployments
• Patented Tangle-Free Latch: Snag-resistant release mechanism speeds MACs (moves, adds, changes) and prevents the hook-on-hook jams common with standard boot designs
• RapidID Barcode Integration: Pre-applied barcode labels enable instant port mapping and documentation via Panduit RapidID software—no manual tagging or spreadsheet cross-referencing
• Full Cat 6 Performance: Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E specs to 250 MHz despite smaller conductor gauge, supporting 1000BASE-T, 10GBASE-T (limited distance), and PoE++ (IEEE 802.3bt Type 3/4 with proper bundling)
• Centered De-Embedded Plug & Integral Pair Manager: Precision-engineered modular plugs maintain pair geometry and minimize crosstalk, ensuring consistent near-end and return loss across the entire cord
• CM/LSZH Dual Rating: Meets NEC CM plenum-alternative fire rating and low-smoke zero-halogen (LSZH) flame performance for mixed building-code and international datacenter deployments
• Factory Tested: Every cord verified for wire map continuity, near-end crosstalk (NEXT), and return loss before shipment—eliminates field troubleshooting of bad crimps or miswires

The TX6-28 platform addresses the density crisis in modern network closets and datacenter top-of-rack switches. Standard 24 AWG patch cords occupy 40–50% more cross-sectional area than this 28 AWG design, forcing installers to either overfill cable managers (blocking airflow and violating bend-radius limits) or leave ports unused. The UTP28SP3PK's 0.150-inch diameter lets you terminate more ports per panel, maintain <1.5-inch bend radii in tight corners, and preserve front-to-back airflow in 2-post and 4-post racks. The stranded copper construction delivers the flexibility needed for tight routing without the stiffness that causes solid-conductor cords to spring free from cable managers. Panduit's centered de-embedded plug design keeps all four pairs locked in their correct geometry from plug to plug, so return loss stays below -20 dB and NEXT margins remain high even after repeated connect/disconnect cycles. The integral pair manager inside each plug prevents pair untwist at the termination point—the #1 cause of field failures in competitor cords that rely solely on the RJ45 plug's internal separators.

This patch cord fits installations where speed, documentation, and maintainability drive ROI: security equipment racks linking NVRs to PoE switches, datacenter patch panels serving blade servers or hyperconverged nodes, AV distribution frames feeding IP cameras or networked displays, and telco closets supporting VoIP handsets or wireless access points. The pink jacket provides at-a-glance identification in multi-service environments (common Panduit color-coding: blue for horizontal, yellow for cross-connect, pink for specialty or temporary links). RapidID barcoding turns a 30-second manual documentation task into a 3-second scan: the installer waves a phone or handheld scanner over the cord, the RapidID app logs the port, switch, and cable ID into a CSV or network diagram, and the as-built documentation stays current without spreadsheet gymnastics or forgotten label tags. For contractors billing T&M on MACs or operating under SLA uptime guarantees, the tangle-free latch alone pays dividends—no more fingernail-vs-boot wrestling, no more accidentally pulling two cords when you meant to pull one, no more service-window overruns because a latch snagged on the adjacent port's cable and you had to shut down a second link to free it.

The UTP28SP3PK meets or exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical requirements across the full 1–250 MHz spectrum, ensuring headroom for 1000BASE-T Gigabit Ethernet, 155/622/1200 Mb/s ATM, and standards-compliant 10GBASE-T operation at distances up to 37 meters (though TIA recommends Cat 6A for full 100m 10G links). It supports IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt Type 3 and Type 4 (PoE++) power delivery with appropriate bundle de-rating: up to 48 cords per bundle for 802.3af/at, 24 cords per bundle for 802.3bt Type 3/4. The product is cULus Listed under UL 1863 and CAN/CSA-C22.2 No. 214 (File E129886), RoHS compliant for lead-free installations, and manufactured under ISO 9001 quality management. For integrators managing mixed-vendor networks or datacenter operators standardizing on Panduit structured cabling, the TX6-28 cord is the logical patch-panel termination for Panduit TX6 and TX6A jacks, Panduit fiber enclosures, and any standards-compliant 8P8C modular jack—delivering the same Port-to-Plug performance guarantee that Panduit warranties across its copper infrastructure portfolio.
