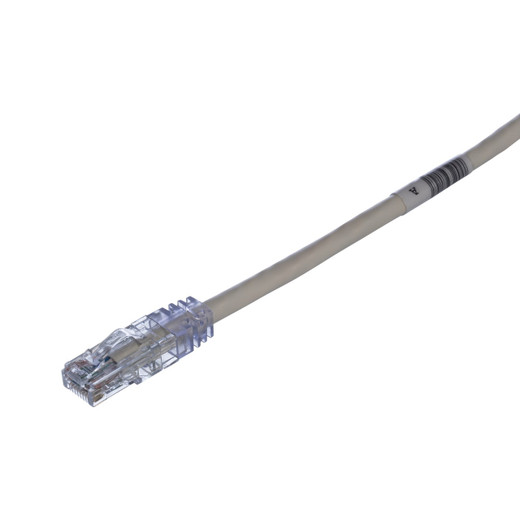

Panduit UTPSP3Y Cat 6 UTP Patch Cord 3ft Off White

Panduit UTPSP3Y Cat 6 24 AWG UTP Patch Cord, 3 ft, Off White

The Panduit UTPSP3Y is a 3-foot Cat 6 UTP patch cord built for high-density commercial network installations where reliability and cable management matter. Constructed with 24 AWG stranded copper and terminated with TX6 PLUS modular plugs, this off-white patch cord delivers certified Category 6 performance for 10GBASE-T over limited distances, Gigabit Ethernet, PoE++, and VoIP. The tangle-free latch design prevents snagging during moves, adds, and changes, while the slender strain relief boot enables routing in congested patch panels and switch stacks. Each cord ships with pre-installed RapidID barcodes for instant port mapping via Panduit's RapidID software, streamlining documentation in enterprise datacenters, IDF closets, and access-control equipment racks.

Key Features

• 24 AWG stranded U/UTP construction with CM flammability rating for horizontal and riser applications
• TX6 PLUS modular plugs with centered de-embedded design and integral pair manager for superior return loss performance
• Patented tangle-free latch prevents snags during moves, adds, and changes in high-density patching environments
• 100% factory tested for wire map, NEXT, and return loss across full frequency range
• Pre-installed RapidID barcodes for automated port mapping and asset documentation
• Rated for 2,500 mating cycles with IEEE 802.3af/at/bt PoE (Type 1-4, up to 90W)
• Exceeds ANSI/TIA-568.2-D Cat 6A and ISO 11801 Class EA requirements up to 500 MHz

The UTPSP3Y uses 24 AWG stranded copper conductors in an unshielded twisted-pair (U/UTP) configuration, providing flexibility for frequent reconfiguration without the work-hardening risk of solid-conductor patch cords. Each end terminates in a TX6 PLUS modular plug featuring a centered de-embedded contact geometry that minimizes return loss and NEXT at the plug-to-jack interface—critical when channel margins are tight in 10GBASE-T deployments over the full 100-meter link budget. The integral pair manager inside each plug maintains pair geometry throughout the termination transition, preventing pair untwist that degrades alien crosstalk performance. Panduit factory-tests every cord for wire map continuity, near-end crosstalk, and return loss across the full frequency range, and the plug assembly is rated for 2,500 insertion cycles under IEEE 802.3bt Type 4 PoE loading (up to 90W), making it suitable for high-power PoE++ cameras, access points, and LED lighting controllers.

In high-density IDF and access-control equipment racks, the UTPSP3Y's tangle-free latch and slender boot geometry reduce the friction that slows moves, adds, and changes. The latch design eliminates the hook-and-snag problem common with traditional plugs when pulling cords through congested horizontal bundles or vertical cable managers, and the low-profile boot allows finger access even when jacks are deployed in 48-port keystone panels with 0.5U spacing. The factory-applied RapidID barcode on each plug enables one-scan port documentation: installers use Panduit's mobile RapidID app to log the patch cord serial number, link endpoints, and cable path into a structured asset database without manual label printing or spreadsheet entry—a workflow accelerator in projects with hundreds of access-control door controllers, IP camera aggregation switches, or nurse-call system hubs where traceability is required by IT governance or facility commissioning standards.

The UTPSP3Y exceeds ANSI/TIA-568.2-D Category 6A component and channel requirements across the full 500 MHz bandwidth, even though it's specified as a Cat 6 product—this headroom ensures future-proof performance when mixed with Cat 6A jacks or when deployed in channels approaching the 100-meter distance limit. It meets ANSI/TIA-1096-A DCR and insertion loss requirements for long horizontal cabling, IEC 60603-7 plug-jack interface specifications, and is UL 1863 listed for use in CM-rated cable systems. RoHS compliance ensures compatibility with low-voltage projects subject to EU Directive 2011/65/EU restrictions on lead and heavy metals. For integrators managing PoE-intensive access-control or IP surveillance installations where cable failure in a 2U patch panel can mean hours of troubleshooting and truck rolls, the UTPSP3Y's factory-verified performance, robust plug retention, and integrated asset-tracking capability represent a measurable reduction in post-install support costs.
