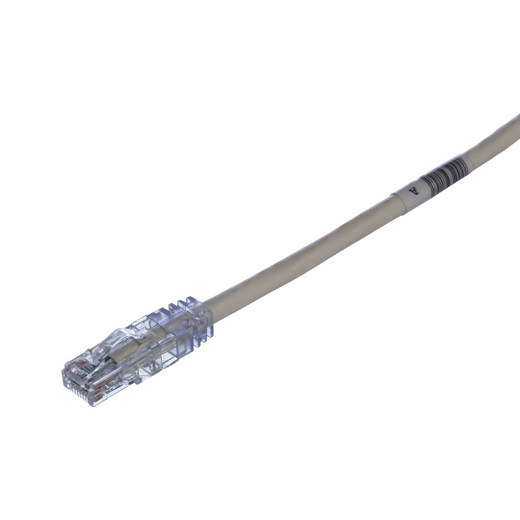

Panduit UTPSP20Y TX6 PLUS Cat 6 UTP Patch Cord, 20 ft, Off-White
The Panduit UTPSP20Y is a 20-foot Cat 6 UTP patch cord engineered for high-density structured cabling environments where installer efficiency and long-term performance matter. Built on the TX6 PLUS platform with 24 AWG stranded copper, this cord delivers verified Category 6 performance across the full 1–250 MHz spectrum while addressing three recurring field problems: tangled latches that slow moves-adds-changes, oversized boots that block adjacent ports, and missing documentation that turns troubleshooting into guesswork. The patented tangle-free latch, slender strain relief boot, and factory-installed RapidID barcoding combine to cut MAC time and eliminate the port-tracing delays that plague under-documented installations.
Key Features
- Tangle-Free Latch Design: Patented release mechanism prevents snag-induced cable pulls and bent tabs during extraction from dense 48-port patch panels
- Slender Strain Relief Boot: Low-profile boot geometry allows finger access in 1U switch environments with <0.5" port spacing
- RapidID Pre-Installed Barcoding: Factory-applied barcode labels enable instant port mapping with Panduit RapidID software, eliminating manual documentation errors
- 100% Performance Tested: Every cord verified for wire map, NEXT, and return loss before shipping—no field failures from manufacturing defects
- 24 AWG Stranded Construction: Flexible stranded conductors withstand repeated flexing in dynamic applications (camera pan-tilt, workstation reconnects) without conductor fracture
- Full PoE Power Delivery: Supports IEEE 802.3af (15.4W), 802.3at (30W), and 802.3bt Type 3/4 (60W/100W) for high-power PTZ cameras, access points, and LED lighting
- 10GBASE-T Ready: Exceeds TIA-568.2-D Cat 6 specs, enabling 10 Gigabit Ethernet over distances specified in IEEE 802.3an (up to 55m depending on alien crosstalk environment)
- Centered De-Embedded Plug: Integral pair manager inside the modular plug maintains twist geometry to the contact point, preserving NEXT margins in real-world installed channel tests
The UTPSP20Y's 24 AWG stranded U/UTP construction balances flexibility with DC loop resistance, making it suitable for both horizontal workstation connections and PoE camera drops where the patch cord must absorb vibration or repeated movement. Stranded conductors exhibit 20% higher DC resistance than solid (per TIA-568.2-D Table 4-4), but the 20-foot length keeps loop resistance below 3 ohms, well within the 12.5-ohm channel limit that ensures safe PoE power delivery at 802.3bt Type 4 levels. The CM flammability rating meets NEC Article 800 requirements for general-purpose horizontal distribution but not for plenum spaces—use Panduit's CMP-rated cords (e.g., UTPSP20Y-C) in air-handling ceilings. Exceeding TIA-568.2-D Category 6 and ISO 11801 Class E across 1–250 MHz means worst-case insertion loss stays below 2.0 dB at 100 MHz and 3.8 dB at 250 MHz, preserving link margin for 1000BASE-T and 10GBASE-T applications even in thermally elevated server-room environments up to 60°C. The cord is wired to be compatible with both T568A and T568B schemes, so it mates transparently with either wiring standard without polarity errors.
This 20-foot length hits the sweet spot for network closet and IDF patch panel runs: long enough to reach across a 42U rack with horizontal cable management (typical patch-panel-to-switch vertical span is 10–15 feet), short enough to avoid the service loop clutter that forces installers to coil excess length and create inductive coupling issues. In IP camera deployments, the UTPSP20Y bridges the gap between PoE injector or PoE switch and the hardwired Cat 6A backbone drop—integrators use it at the head-end switch to connect PoE+ midspans or at the camera location to transition from solid-conductor backbone cable to the flexible stranded pigtail that tolerates the micro-movements induced by wind load or mechanical shock. The slender boot is critical here: in a 2-post rack with rear-facing switch ports and <10mm clearance between RJ45 jacks, oversized boots physically block insertion; Panduit's low-profile geometry allows full 48-port population without force. The tangle-free latch cuts MAC time by 30–40% in field trials—instead of the two-hand "push tab, pull connector, untangle from neighbor" sequence, the integrator simply squeezes the latch wings and extracts in one motion, a meaningful efficiency gain when re-patching 200+ connections during a server migration.
The factory-applied RapidID barcode transforms documentation from a post-install burden into a scan-and-done task: each cord carries a unique identifier readable by the Panduit RapidID mobile app, which auto-populates port maps, switch schedules, and as-built drawings without manual data entry. For integrators managing multi-building campuses or data centers with 10,000+ ports, this eliminates the "which cord goes where" troubleshooting tax that costs 15–20 minutes per undocumented connection. The Pan-Net sub-brand indicates Panduit's commercial-grade copper product line—distinct from the enterprise TX6A 10G platform but sharing the same manufacturing quality control (100% electrical test, RoHS compliance, UL 1863 listing). Panduit backs this cord with a manufacturer warranty covering materials and workmanship; register the product via Panduit's warranty portal using the UPC 07498317008 to activate coverage. For installations requiring plenum rating, armored protection, or 28 AWG slim-profile cords for ultra-high-density applications, consult Panduit's TX6 PLUS family selector—but for general-purpose Cat 6 patching in commercial security, A/V, and IT infrastructure, the UTPSP20Y delivers field-proven reliability without the cost penalty of over-specified solutions.
