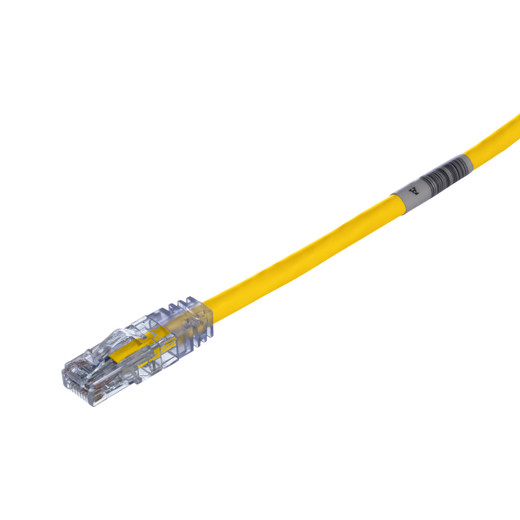

Panduit UTPSP30YLY 30 ft Cat 6 UTP Patch Cord - Yellow

Panduit UTPSP30YLY Cat 6 UTP Patch Cord

The Panduit UTPSP30YLY is a 30-foot Cat 6 unshielded twisted pair patch cord engineered for high-density commercial installations where performance, durability, and rapid deployment matter. Built on the TX6 PLUS platform with 24 AWG stranded copper conductors, this yellow-jacketed cable delivers verified performance across the full 1-250 MHz spectrum and supports 10GBASE-T Ethernet over limited distances, PoE++ (802.3bt type 3/4), and legacy protocols. The factory-terminated modular plugs feature Panduit's patented tangle-free latch and slim strain relief boot—solving the two most common patch-panel pain points: snag-induced latch breakage during dense cabinet work and restricted access in crowded horizontal managers. RapidID barcodes are pre-applied at both ends, enabling scan-based port mapping when paired with Panduit's mobile app—cutting documentation time on MACs and eliminating the label-maker step. This is the cord you spec when uptime, cable management efficiency, and long-term plug reliability are non-negotiable.

Key Features

• 30 ft (9.14 m) length in high-visibility yellow jacket for easy tracing in multi-vendor environments
• TX6 PLUS modular plugs with centered de-embedded termination and integral pair manager—100% tested for wire map, NEXT, and return loss
• Patented tangle-free latch design prevents snags on adjacent cables during insertion/removal, reducing latch breakage and service-call costs
• Slender strain relief boot provides clearance in 1U patch panels and high-density switch ports where standard boots bind
• RapidID pre-installed barcodes at both connectors enable mobile-app port mapping—scan to log switch port, scan to log patch-panel termination, auto-generate reports
• 24 AWG stranded copper conductors tolerate repeated flexing during moves/adds/changes without conductor fracture
• Supports IEEE 802.3bt type 3 (60W) and type 4 (90W) PoE for IP cameras, PTZ controllers, access points, and VoIP phones without mid-span injectors
• Exceeds ANSI/TIA-568.2-D Cat 6 and ISO 11801 Class E specs across 1-250 MHz; qualified for 10GBASE-T over distances specified in IEEE 802.3an
• Compatible with both T568A and T568B wiring schemes—works in mixed-standard environments without re-termination
• CM-rated jacket meets NEC Article 800 for general building horizontal and riser applications

The TX6 PLUS plug architecture addresses the core failure mode in field-terminated and low-cost factory cords: inconsistent pair geometry at the termination point. Panduit's centered de-embedded design uses an integral pair manager inside the plug body to maintain differential-pair spacing and twist rate through the transition from cable to contacts, minimizing return loss and alien crosstalk. The result is measurable headroom above Cat 6 minimums—critical when you're running PoE++ (which increases insertion loss due to DC resistance heating) or planning for 10GBASE-T over 37-55 meter links where you need every dB of margin. The stranded 24 AWG conductors are softer and more forgiving than solid-core cable during repeated flexing—expect these cords to survive dozens of MAC cycles in a live cabinet without the conductor fatigue cracking you see in cheap stranded cable or the brittleness of solid conductors repurposed as patch cords. The yellow jacket provides instant visual differentiation from blue/gray data cabling, green VoIP trunks, or red out-of-band management links, reducing mis-patching during after-hours changes.

RapidID barcode integration transforms what is usually a 15-minute-per-cabinet documentation task into a two-scan operation: use Panduit's mobile app to scan the barcode on the patch-cord connector plugged into the switch, then scan the corresponding patch-panel port. The app auto-logs the physical layer map, ties it to your switch config if you feed it LLDP data, and exports to Excel or DCIM platforms. This workflow is a forcing function for as-built documentation—there's no "we'll label it later" backlog because labeling happens in real time as part of the plug-in action. The tangle-free latch uses a low-profile lever that sits closer to the plug body than standard latches; when you pull a cord out of a dense bundle, the latch doesn't catch on adjacent cables and snap off. In a 48-port switch fully populated with 1U horizontal management, that design difference saves multiple truck rolls per year. The slender boot tapers from 6.5mm at the cable transition to under 7mm at the plug body—tight enough to fit between adjacent ports on 1U gear with 0.5" port spacing, unlike the bulbous boots on consumer-grade cables that force you to leave every other port empty.

This cord is manufactured to exceed ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801 Class E channel requirements from 1 MHz through 250 MHz, with individual conformance test data serialized to each production lot. It is UL listed under file E129886 for compliance with UL 1863 (communication cables) and CSA C22.2, and meets ANSI/TIA-1096-A performance specs for modular plugs. RoHS compliant, suitable for projects with environmental procurement mandates. The cord is wired to be compatible with both T568A and T568B pinouts—plug it into a T568A-wired patch panel and a T568B-wired switch without signal degradation, because the plug-to-plug wiring is straight-through and the standard difference is at the permanent-link termination. For IP security deployments where you are back-hauling 4K camera streams over PoE++ and need documented performance margin, or IT moves/adds/changes in cabinets where latch durability and rapid port mapping cut labor costs, this is the patch cord that holds up under the real-world conditions commercial integrators face daily.
