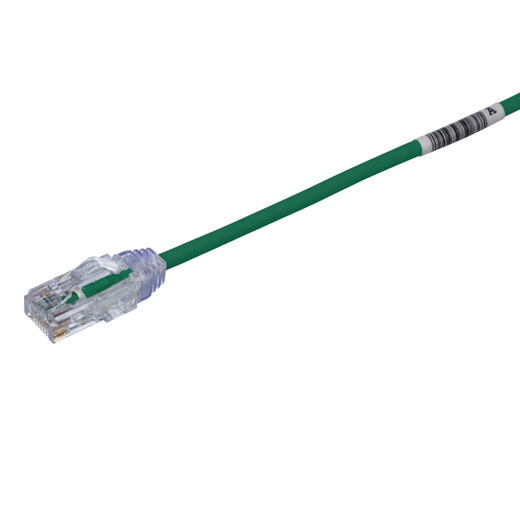

Panduit UTP28SP3GR TX6-28 Cat 6 Patch Cord

The Panduit UTP28SP3GR is a 3-foot Cat 6 patch cord engineered for high-density network infrastructure where space, cable management, and documentation matter. Built on Panduit's TX6-28 platform, this 28 AWG UTP patch cord delivers full Cat 6 performance in a 0.150-inch (3.8mm) diameter — roughly 40% smaller than standard 24 AWG patch cords — making it the right choice for packed datacenter racks, crowded access-layer switches, and IP camera installations where every U of rack space counts. The green jacket provides visual segmentation for VLANs, camera networks, or guest traffic. RapidID barcode integration accelerates port mapping and documentation, and the patented tangle-free latch prevents the snag-and-rip failures that plague high-density moves and changes. CM/LSZH rated for limited plenum or low-smoke requirements.

Key Features

• 28 AWG stranded copper — 0.150" (3.8mm) diameter for 40% space savings vs. 24 AWG patch cords in high-density racks
• Full Cat 6 performance: exceeds ANSI/TIA-568.2-D and ISO 11801 Class E from 1-250 MHz, supports 10GBASE-T and PoE++ (802.3bt Type 4, 90W)
• RapidID pre-installed barcode for one-scan port mapping with Panduit RapidID software — eliminates manual documentation errors
• Patented tangle-free latch prevents snags during insertion/removal, reducing broken tabs and accidental disconnects in crowded patch panels
• CM/LSZH jacket meets UL 1863 and low-smoke/zero-halogen fire safety standards for occupied spaces or international projects
• 100% factory tested for wire map, NEXT, and return loss — ships with performance guarantee, no field certification required

Why 28 AWG Matters in Real Installs
Standard 24 AWG patch cords measure ~0.25 inches in diameter. When you're patching 48-port switches in a 42U rack or managing six IP camera uplinks behind an access-layer closet, that bulk creates airflow blockages, forces oversized cable managers, and makes troubleshooting a nightmare. The UTP28SP3GR's 0.150-inch profile opens up breathing room: you can route twice as many cables through the same 2-inch D-rings, leave adjacent ports accessible for future adds, and actually see port numbers without pulling cables aside. For datacenter and enterprise campus installs, the density savings translate directly to fewer cable managers, better cooling efficiency, and faster MAC cycles. Stranded copper construction maintains flexibility through repeated handling — critical for patch cords that get reconnected during switch upgrades or VLAN changes.

RapidID Documentation & Tangle-Free Latch
The pre-installed RapidID barcode on each plug integrates with Panduit's RapidID mobile app or desktop software. During install, you scan the cord's barcode, then scan the switch port label — the software auto-generates a port map, cable schedule, and asset database entry. This eliminates the manual spreadsheet tracking that introduces errors and goes stale after the first round of changes. For security integrators running IP camera networks across multiple IDFs, RapidID means you can hand off a live, accurate port map to the client's IT team without spending hours with a toner and label maker. The tangle-free latch is a narrow-profile boot design that slides past adjacent plugs and through tight grommet openings without catching. Standard oversized boots snag on neighboring patch cords or rip off mid-pull — Panduit's latch profile solves this by keeping the release tab flush and protected while maintaining easy single-finger access.

PoE++, 10GBASE-T, and Standards Compliance
The UTP28SP3GR supports IEEE 802.3af/at (PoE/PoE+) and 802.3bt Type 3 and Type 4 (PoE++, up to 90W) across the full 3-foot length, making it suitable for high-power IP cameras, PTZ cameras, and access points in IDF-to-device runs or patch-panel-to-switch uplinks. It exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E specifications across all frequencies from 1 to 250 MHz, ensuring margin for 10GBASE-T over standard-defined distances. The centered de-embedded plug design and integral pair manager maintain consistent twist geometry through the termination, minimizing NEXT and improving return loss — critical for 10G and PoE++ where marginal links cause intermittent errors or power delivery failures. Wired to be compatible with both T568A and T568B schemes. CM/LSZH jacket meets UL 1863, CAN/CSA-C22.2 (UL File E129886), and RoHS compliance, covering most commercial building codes and international low-smoke requirements.

The Panduit UTP28SP3GR is the go-to patch cord for installers who need full Cat 6 performance, PoE++ power delivery, and professional-grade cable management in space-constrained racks. The 3-foot length is ideal for intra-rack connections, patch panel to switch uplinks, or access-layer camera runs in tight IDF closets. The green jacket provides instant visual identification for segmented networks — common use cases include camera VLANs, guest networks, or out-of-band management traffic. Ships in cartons of 10 for volume installs, with each cord individually tested and RapidID-enabled for turnkey documentation. Whether you're building out a new datacenter, upgrading campus access switches, or deploying a 48-camera IP surveillance install, the UTP28SP3GR delivers the density, performance, and documentation tooling you need to close the job cleanly and leave a maintainable network behind.
