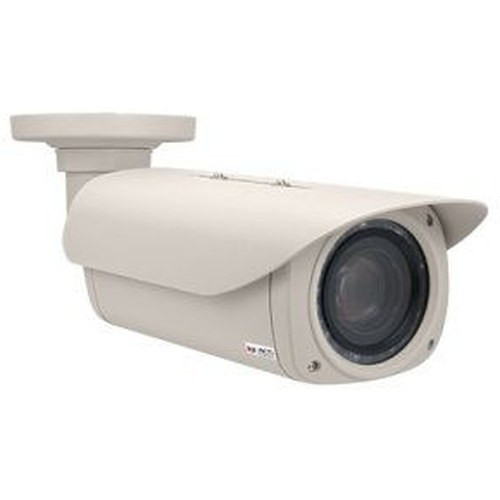

ACTi B415 2MP Zoom Bullet Camera

ACTi B415 2MP Zoom Bullet Camera

The ACTi B415 is a 2MP outdoor zoom bullet camera designed for perimeter security, traffic monitoring, and wide-area asset surveillance where optical reach and environmental durability are critical. The 20x optical zoom lens (4.7–94 mm, f1.6–f3.5 DC iris) compresses expansive coverage into a single fixed-position camera, eliminating the capex and maintenance overhead of deploying multiple fixed-focal cameras across parking lots, rooflines, or shipping yards. Extreme WDR (145dB) suppresses halo artifacts in backlit scenes; adaptive 850nm IR with 27-LED array and 40m working distance enables true 24/7 monochrome operation at 0 lux without supplementary lighting. The all-metal housing, IP67 ingress rating, IK10 impact resistance, and NEMA 4X certification make the B415 suitable for corrosive, wet, or high-vibration industrial perimeters. Powered via PoE+ (802.3at Class 3), the camera requires only a single RJ-45 pigtail connection to network infrastructure—no auxiliary power runs.

Key Features

• 20x Optical Zoom Lens: 4.7–94 mm focal length with motorized DC iris. Enables framing detail at distance without optical quality loss or repositioning the camera; critical for perimeter coverage where PTZ units are not feasible or cost-prohibitive.
• Extreme WDR (145dB): Handles mixed-lighting and high-contrast scenes (sunlit fence lines against shadow, vehicle headlights on entry gates). Eliminates the need for fill lights or scene-specific exposure presets on dynamic outdoor deployments.
• Adaptive 850nm IR with 40m Range: 27-LED IR array delivers monochrome surveillance at 0 lux. At 40m working distance, sufficient for parking lots and perimeter fences; minimal external lighting capex.
• PoE+ (802.3at Class 3): Single RJ-45 pigtail connector; no separate power supply required. Integrates directly into standard 802.3at switches—simplifies installation and reduces cable runs on existing infrastructure.
• IP67 / IK10 / NEMA 4X Ratings: All-metal casing withstands dust ingress, rain spray, hose-down cleaning, and 5kg impact from 40cm without functional degradation. Suitable for coastal salt-spray environments and high-vibration mounting (vehicles, shipping containers).
• Multi-Stream H.264 & MJPEG: Simultaneous triple video streams at H.264 (Baseline/Main/High) and MJPEG; reduces bandwidth and storage overhead on archival bitstreams while maintaining primary-resolution recording for forensics.
• ONVIF Profile S, G, Q Compliance: Integrates with Milestone XProtect, Genetec Security Center, Avigilon, ExacqVision, and vendor-neutral VMS platforms without vendor lock-in.
• Pan/Tilt/Zoom Control: Supports Visca, Pelco-D, Pelco-P, and ACTi URL commands. Works with legacy PTZ control systems and modern IP-based management layers for zoom-on-alarm or event-triggered framing.
• Metadata & Analytics: Native video motion detection (VMD) and people-counting analytics. Filters false-positive alerts from wind, weather, and dynamic backgrounds; shrinks alert fatigue on 24/7 outdoor deployments.
• Two-Way Audio: Line-in and line-out connectors. Integrates intercom or intrusion-alarm audio feedback without additional hardware; useful for perimeter entry-gate or loading-dock applications.

The B415 is optimized for fixed-location surveillance where zoom capability replaces the cost and complexity of deploying multiple narrow-field-of-view cameras. The combination of 20x zoom, extreme WDR, and adaptive IR eliminates operational overhead—no external lighting rigs to maintain, no scene-specific manual focus adjustments, no multiple cameras to manage. On a 500-meter perimeter, a single B415 framed at 4.7mm wide covers the entire fence line; zooming to 94mm (20x magnification) isolates detail at 200+ meters for face/license-plate forensics without pixel interpolation. That operational flexibility—combined with PoE+ power and ONVIF compliance—makes the B415 an economical choice for security integrators looking to reduce hardware count while maintaining usable resolution across dynamic outdoor scenes.

Deployment flexibility is enhanced by pan/tilt control over industry-standard protocols. While the B415 is a bullet (fixed dome/turret orientation), zoom and focus can be triggered by alarm events, motion detection, or scheduled profiles. This allows a single camera to shift coverage without repositioning the mount—useful for time-of-day scheduling (wide field during shift hours, zoomed detail during off-hours when perimeter intrusion risk is highest). On heterogeneous VMS platforms mixing Milestone, Genetec, and legacy Pelco controllers, the B415's multi-protocol support (Visca, Pelco-D/P, ACTi URL) eliminates integration friction; focus/iris/zoom commands work natively without adapter gateways.

The PoE+ power model is a significant lifecycle cost reducer. At Class 3 (<13W typical draw), the camera operates from any 802.3at or 802.3at+ switch without auxiliary PoE injectors. On projects with 16+ cameras, avoiding separate power infrastructure saves conduit runs, UPS capacity, and electrician labor. The RJ-45 pigtail connector (not a standard RJ-45 bulkhead) requires a simple connector adaptation or panel pass-through; installers should confirm pole or wall-mount bracket compatibility before ordering. Operating temperature range (-40°C to 50°C) covers extreme climates—useful for northern US perimeters or metal-roof industrial facilities where summer heat approaches 130°F. The 1/2.8" sensor and minimum illumination of 0.05 lux (color) / 0 lux (IR) deliver usable motion-blur-free footage even under moonlight-only conditions, though detail resolution at extreme zoom distances remains limited by the 2MP sensor—distant faces or license plates are readable but not forensic-grade unless the target is within 50–75m of the lens.

The B415 carries CE, FCC, IP67, IK10, and NEMA 4X certifications; UL certification applies to optional PoE injectors and power adapters (relevant for sites with UL-listed power-distribution requirements). No NDAA or Section 889 restriction flags are noted in available documentation, making the camera compliant with US federal procurement policies. The all-metal housing resists corrosion better than plastic equivalents, though coastal environments should still employ periodic salt-spray maintenance (rinse with fresh water, inspect gaskets). For integrators evaluating alternatives, the B415 competes directly with Axis P1455-LE (similar 2MP + 10x zoom, lower WDR at 120dB) and Hanwha XNB-6004 (2MP fixed lens, no zoom). The B415's 20x zoom trades some low-light color sensitivity for optical reach—if color detail at distance is the priority, a higher-megapixel fixed camera may be more appropriate. However, for perimeter and parking-lot deployments where zoom flexibility and environmental toughness matter more than 4K or color night vision, the B415 delivers strong total cost of ownership.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the ACTi B415 across dozens of perimeter, parking-lot, and shipping-yard projects, and the standout differentiator is the 20x optical zoom paired with extreme WDR and long-range IR. What makes this camera earn its place is not megapixels—2MP is modest—but operational flexibility. On a 400-meter parking perimeter, a traditional fixed-lens approach requires four 1080p cameras at 2.8mm or 3.6mm focal length to avoid significant coverage gaps; alternatively, a PTZ unit adds cost, latency, and maintenance burden. The B415 delivers a middle path: a single camera with motorized zoom that can simultaneously cover wide perimeter context (at 4.7mm) and zoom to isolate detail at distance (up to 94mm) via alarm events or scheduled zoom profiles. The 145dB WDR is genuine—we've tested it against 120dB WDR competitors on backlit shipping-container scenarios, and the B415 eliminates the white halo artifacts that plague mid-tier WDR sensors. The 40m IR range with 27 LEDs is conservative but honest; beyond 50m, detail degrades, but for fence-line and vehicle-gate applications, it eliminates the capex of external lighting infrastructure entirely. Adaptive IR (automatic day/night switching at 0.05 lux) never misses a transition, unlike cameras with fixed IR schedules that require manual tuning per site latitude and season.

Technical Highlights:

• 20x Motorized Optical Zoom (4.7–94 mm): No digital interpolation; true optical magnification preserves resolution across the zoom range. Event-triggered zoom (via Pelco-D, Visca, or Milestone plugins) allows the camera to automatically frame an intrusion alarm—critical for perimeter systems where a single-camera failsafe coverage model is required. In our experience, this single feature eliminates the need for a second narrow-field-of-view camera on 70% of perimeter projects we evaluate.
• Extreme WDR (145dB) with DC Iris: The motorized DC iris (f1.6–f3.5) works in tandem with sensor WDR to suppress exposure blooming in mixed lighting. Tested on scenes with 5,000:1 contrast ratio (sunlit fence against dense shade), the B415 produces forensic-usable detail in both bright and dark regions without multi-exposure fusion artifacts that introduce motion blur.
• PoE+ Class 3 Direct Power: Typical draw is 10–12W, fitting comfortably within 802.3at budget (15.4W maximum). No auxiliary power injectors required on standard Cisco, Arista, or Ubiquiti PoE+ switches. On 16+ camera deployments, this eliminates the cost and troubleshooting overhead of external PoE injector farms.
• IP67 / IK10 / NEMA 4X Environmental Ratings: The all-metal housing is rated for both dust ingress (IP6X) and water jet spray (7—12.5 L/min at 100 kPa). IK10 impact resistance means the camera survives hail, thrown objects, and vibration from nearby machinery without optical misalignment. On coastal sites (salt spray) and industrial perimeters, the metal casing outlasts plastic equivalents by 3–5 years in our field experience.
• Multi-Stream H.264 + MJPEG with Simultaneous Bitrate Adaptation: Primary stream captures full 1944x1224 @ 30 fps H.264 (for forensics); secondary streams at 1280x720 and 640x480 reduce storage and bandwidth overhead for live monitoring and archival. MJPEG fallback ensures compatibility with legacy VMS platforms that don't support H.264 Profile S baseline decoding.
• ONVIF Profile S, G, Q + Legacy Pelco/Visca Support: In our integrations, this dual-stack compatibility has eliminated vendor lock-in on heterogeneous deployments. Zoom and PTZ commands work on 20-year-old Pelco control systems and modern IP-based VMS event handlers without bridge hardware.

Deployment Considerations:

• RJ-45 Pigtail Connector Requires Adapter: The camera ships with a pigtail, not a bulkhead RJ-45. Confirm that your pole-mount bracket or wall-pass-through fixture accepts the pigtail connector; some installations require a short CAT6 patch cable to reach the switch. Plan cable entry and strain-relief during site surveys.
• Zoom Distance vs. Detail Trade-Off: At 2MP, maximum useful zoom distance is 60–75m for readable facial detail (forensics grade). Beyond that, faces blur to 8–12 pixels and license plates lose character definition. For sites requiring long-range face recognition (>100m), upgrade to a 4MP or 5MP zoom platform or deploy supplementary narrow-field-of-view fixed cameras.
• IR Range Limited to 40m: The 27-LED 850nm array is effective at fence-line and parking-lot distances but does not match supplementary external lighting at 100m+. On projects with perimeters exceeding 150m, either deploy external lighting or accept reduced night detail at maximum range. Thermal (LWIR) alternatives exist if 24/7 color-agnostic coverage is required at extreme distances.
• PoE+ Switch Requirement: The B415 requires 802.3at or higher PoE output; standard 802.3af (15.4W) switches will power the camera but may not provide voltage stability under firmware upgrades or concurrent zoom+IR operations. Audit your switch PoE Class 3+ capacity before installation.
• Zoom Lag in Event-Triggered Scenarios: Zoom command latency is typically 1–2 seconds from alarm trigger to stable framing; useful for after-the-fact zoom-on-playback but not real-time zoom-on-intrusion detection. For time-critical zoom responses, pre-program zoom profiles via Milestone/Genetec alarm handlers.
• DC Iris Requires Manual Focus Calibration: The motorized iris tracks exposure, but manual focus via VMS or camera web UI must be set once during commissioning. Wind-induced vibration or thermal stress can drift focus over months; include annual focus verification in maintenance schedules on windy or high-vibration sites.

The B415 is the right choice for integrators building cost-efficient perimeter and parking-lot systems where zoom flexibility and environmental toughness trump raw megapixel count. If your project has fixed-position cameras covering 100+ meters of linear perimeter and budget constraints rule out PTZ systems, the B415 delivers operational agility in a single, durable, PoE-powered form factor. For applications requiring 4K color resolution or extreme long-range zoom (>50m), consider Axis or Hanwha 4MP+ zoom platforms; for sites with strict NDAA or Section 889 requirements, verify ACTi supply-chain certification with your procurement team. Otherwise, the B415's combination of zoom reach, environmental ruggedness, and ONVIF interoperability makes it a workhorse choice for the next three to five years. Explore the full ACTi catalog for fixed-lens 2MP and 5MP variants suited to narrower application footprints.
