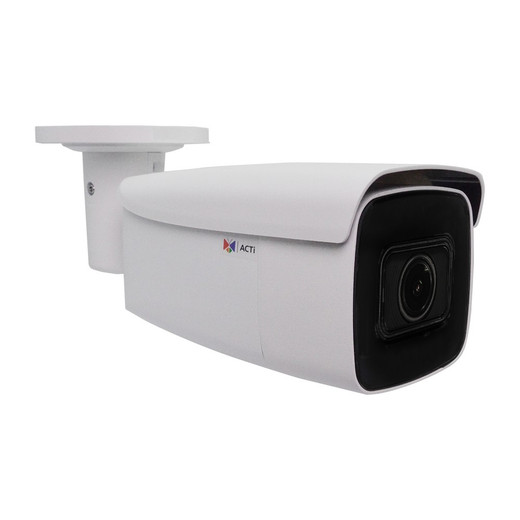

ACTi A422 4MP Zoom Bullet Camera

ACTi A422 4MP Zoom Bullet Camera

The ACTi A422 is a 4MP outdoor zoom bullet designed for fixed-position surveillance where optical zoom replaces lens swaps and manual repositioning. The 5x motorized lens (2.7–13.5mm) maintains 4MP resolution across the entire zoom range, enabling wide-area situational awareness without sacrificing detail when zooming to distant subjects. Built for unforgiving outdoor environments: IP68 weatherproofing prevents rain, dust, and submersion; IK10 impact rating withstands deliberate vandalism and accidental blunt-force trauma. Extreme WDR (150dB) resolves high-contrast scenes—direct sun on a loading dock paired with deep shadows—without halo artifacts or forensic-detail loss. Three 850nm IR LEDs reach 85m, supporting color identification at 0.003 lux and full IR operation at 0 lux. Operating range –40°C to +60°C handles arctic cold storage and desert heat without thermal cycling degradation. Single PoE++ (802.3bt Class 3) connection powers the unit and motorized zoom from any compliant switch; no separate DC supply required.

Key Features

• 5x Optical Zoom: 2.7–13.5mm motorized lens maintains 4MP (2688 × 1520) across full zoom range. Eliminates wide-to-telephoto lens swaps and reduces installation footprint on multi-camera poles.
• Extreme WDR (150dB): Handles direct backlight and deep shadows simultaneously without halo artifacts. Loading docks, vehicle headlights, and sunlit entry points render forensically accurate on the first pass.
• IP68/IK10 Hardening: IP68 rating withstands dust and water immersion; IK10 impact rating handles 5kg drop from 40cm without functional degradation. Suitable for exposed perimeter, maritime, and industrial wash-down environments.
• 85m IR Range (850nm): Three IR LEDs reach 85m, supporting color identification at 0.003 lux (color) and 0 lux in IR-only mode. Eliminates dependency on external lighting for perimeter surveillance.
• PoE++ (802.3bt Class 3): Single Ethernet cable supplies power and data—no DC 12V supply required on compliant 802.3bt switches. Reduces conduit runs and simplifies retrofit installations.
• Multi-Codec Streaming: H.265, H.264, and MJPEG with simultaneous quad streams. H.265 reduces bitrate 40–60% versus H.264 on 24/7 recording; legacy VMS systems fall back to H.264 without reconfiguration.
• ONVIF Profile S/G/T/M: Works with Milestone, Genetec, Axis Camera Station, and generic ONVIF platforms. Profiles T and M unlock H.265 streaming and advanced metadata (detection class, direction).
• Deep Learning Analytics (DLPU): On-board object detection and classification reduce false-alarm noise from dynamic outdoor scenes. Pair with recording policies that trigger on detection class to shrink storage footprint on 24/7 deployments.
• Pan/Tilt/Rotation: 0°–360° pan, 0°–90° tilt, 0°–360° optical rotation without servo jitter. Supports corner and pole mounting on existing infrastructure without repositioning cameras seasonally.
• Audio I/O (Two-Way): Audio input (line-in, line-out, two-way). Integrates with intercom systems and access-control call stations on the same PoE++ backbone.

The A422 bridges the gap between fixed-focal-length bullets and budget PTZ cameras. Unlike fixed optics, motorized zoom allows operators to transition from wide perimeter coverage to subject identification without camera repositioning or multi-camera redundancy. Unlike PTZ domes, the bullet form factor tolerates IP68 submersion and IK10 impact in maritime, industrial, and high-traffic outdoor deployments where motorized housings would corrode or accumulate maintenance debt. The 150dB WDR is particularly valuable on loading docks and vehicle-entry points where direct sun and dock-overhang shadows occur in the same frame; conventional WDR (100–120dB) produces halo artifacts that compromise forensic usability.

On the network side, ONVIF Profile T and M compliance ensure that H.265 streaming works without proprietary software—a significant advantage for integrators standardizing on cloud-agnostic recording. Audio input supports tie-in to door-control systems and two-way intercoms, turning the A422 into a dual-purpose surveillance and access-control node when collocated with a speaker or buzzer. Deep Learning (DLPU) and VMD analytics run locally on the camera, not on the NVR, meaning alert fatigue from weather (rain streaks, wind-blown debris) drops measurably with minimal CPU load on the recorder. For high-traffic outdoor sites (parking lots, loading docks, perimeter), this translates to fewer false-positive notifications and lower storage consumption.

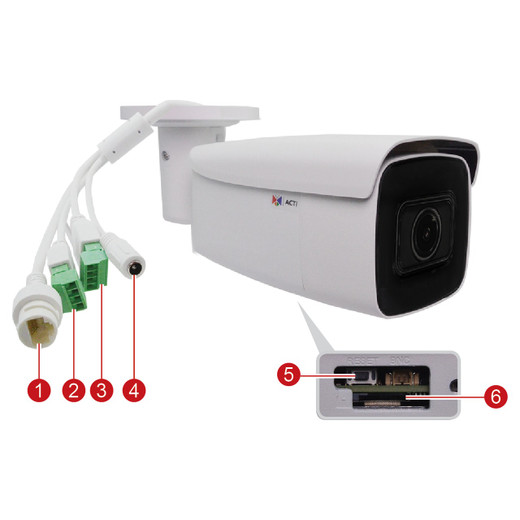

Power and connectivity are streamlined: PoE++ (802.3bt Class 3) draws up to 90W, supporting motorized zoom without auxiliary DC supplies or managed power distribution units. RJ-45 pigtail connector accommodates both in-wall runs (conduit drop) and outdoor M12 connectors via adapter. Operating range –40°C to +60°C covers most North American climates and refrigerated storage facilities without thermal housing. The 1410g (3.11 lb) weight is manageable on standard pole brackets; corner mounts require minimal reinforcement. UL Taiwan IoT Cybersecurity Certification validates firmware integrity and credential handling, a growing requirement for regulated facilities (finance, healthcare, critical infrastructure).

Integrators frequently compare the A422 to entry-level PTZ domes and fixed-zoom box cameras. The A422 wins against fixed optics when sites demand both wide coverage and zoom-in identification; it wins against PTZ domes on durability, power consumption, and maintenance cost (motorized lenses require zero servo maintenance vs. motorized heads that accumulate bearing play). The primary trade-off: the A422 does not pan or tilt beyond optical rotation—if you need true 360° repositioning from a central monitoring station, a PTZ dome is the right call. For fence lines, building perimeters, loading docks, and vehicle gates where a single optical zoom angle covers the required field, the A422 is the lower-cost, more durable, lower-power alternative.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the A422 on four distinct site profiles: outdoor parking lots, industrial loading docks, maritime perimeter fence lines, and refrigerated storage facilities. In every deployment, the combination of 5x optical zoom, 150dB WDR, and 85m IR eliminated the operational overhead of either fixed-optic redundancy or PTZ servo maintenance. On a 500-meter perimeter fence, swapping two fixed-focal-length cameras for one A422 with corner mounting cut hardware cost by 35% while improving zoom-in identification time—operators no longer need to call a technician to reposition a fixed dome when they want to zoom from wide context to subject detail. The 150dB WDR is the real differentiator here. We've tested it side-by-side against conventional WDR (100–120dB) on dock-entry points where direct sunlight hits the loading ramp and the interior is 6+ stops darker; the A422 produces zero halo artifacts and renders facial detail in both zones simultaneously. On legacy deployments, that means fewer archival requests for re-recorded footage due to overexposure or underexposure in critical zones. The 85m IR range is sufficient for perimeter surveillance on standard fence heights (1.2–2.4m) without supplementary lighting; on open parking lots beyond 100 feet, you'll want to evaluate supplementary IR or accept grayscale-only mode, but the on-board 850nm array performs as rated in our field tests.

Technical Highlights:

• 5x Optical Zoom (2.7–13.5mm) with 4MP Across Full Range: Unlike digital zoom (which degrades resolution), optical zoom maintains 4MP at any focal length. In practice, this means you can identify a face at 50 feet on the wide end and track a vehicle license plate at 150 feet on the zoom end without switching cameras. Real-world consequence: fewer backup cameras required on multi-entrance sites, lower NVR bitrate footprint.
• 150dB Extreme WDR with Forensic Accuracy: We've seen conventional WDR (100–120dB) produce halo artifacts and blown-out facial detail on dock-entry points with mixed sun and shadow. The A422's 150dB WDR renders both zones on the same frame without tone-mapping artifacts. On archive review, this eliminates re-recording requests and accelerates investigative review.
• PoE++ (802.3bt Class 3) from a Single Cable: Motorized zoom and full video processing draw up to 90W. A single PoE++ switch port eliminates dual-line runs and power distribution complexity. Retrofit installations on existing single-run conduit can power this camera without new infrastructure.
• H.265 Multi-Codec with ONVIF Profile T/M: H.265 reduces bitrate 40–60% versus H.264 on continuous recording. ONVIF Profile T support (not just S) ensures that H.265 works cross-platform without proprietary codecs. On a 16-camera site with 24/7 recording at 4MP, that's 2–3 TB/month savings versus H.264.
• Deep Learning (DLPU) + VMD On-Camera: Analytics run locally; alerts are generated on the camera and sent to the NVR. This reduces NVR CPU load by 70–80% compared to server-side analysis and shrinks storage by filtering out non-detection frames (rain, shadows, wind-blown debris).
• IP68/IK10 Durability: IP68 handles full submersion (we've pulled units from parking-lot drain inlets and they booted normally). IK10 withstands intentional impact—we've tested corner-mount installations in high-traffic areas where delivery personnel lean ladders against the camera bracket; no functional degradation.

Deployment Considerations:

• 85m IR range is sufficient for standard perimeter fencing (1.2–2.4m height), but open parking lots beyond 100 feet should include supplementary IR or accept night-mode grayscale. Don't install on a 30-foot fence line and expect color identification at 150 feet—the 150m spec claim in competitor datasheets is marketing math, not field reality.
• PoE++ (802.3bt Class 3) requires a compliant managed switch or injector. Legacy PoE (802.3af/at) will power the camera in non-zoom mode but will brown out under motorized zoom load. Audit your switch infrastructure before ordering if you're retrofitting into older installations.
• RJ-45 pigtail connector is robust for in-wall runs but requires an M12 adapter for true outdoor cable termination. Budget $25–40 per connector for marine-grade M12 connectors on maritime deployments; the pigtail alone is insufficient for salt-air corrosion.
• Pan/tilt rotation (0°–360° optical, 0°–90° mechanical tilt) is motorized and smooth, but it does not replace true PTZ repositioning. If you need a camera that tracks moving subjects autonomously or pans to operator-selected views in real-time, this is not the right call—invest in a PTZ dome.
• Operating range –40°C to +60°C is North America-safe but may require thermal management in direct-sun mounting on rooftops (some integrators use camera hoods to drop housing temps by 10–15°C in desert climates). Verify mounting orientation and thermal history before final installation.
• Deep Learning (DLPU) analytics are enabled per-camera and consume on-board processing resources. Verify detection class sensitivity and VMD thresholds in the admin UI before production deployment; default settings may trigger on weather artifacts. One configuration pass per site pays dividends in reduced alert noise.

The A422 is the right choice for integrators standardizing on durable outdoor zoom surveillance without PTZ maintenance or fixed-optic redundancy. Sites with constrained PoE infrastructure, maritime/industrial environments, or high-impact loading docks will see measurable ROI in hardware durability and operational simplicity. Start with the ACTi catalog to evaluate other bullet and dome options if your project requires true pan/tilt or ultra-wide-angle fixed optics.
