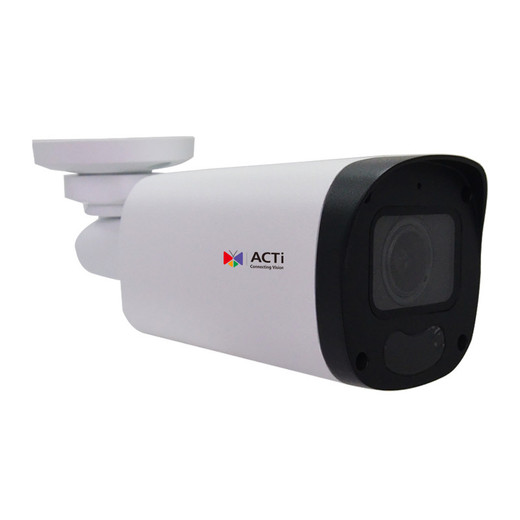

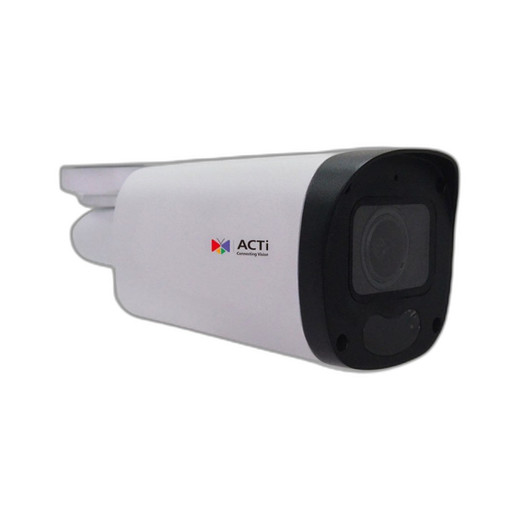

ACTi CAM-4MP 4MP Day/Night Vandal Zoom Bullet Camera
ACTi CAM-4MP 4MP Day/Night Vandal Zoom Bullet Camera Overview The CAM-4MP is a 4MP outdoor zoom bullet built for hostile environments where durabilit…
ACTi CAM-4MP 4MP Day/Night Vandal Zoom Bullet Camera
$500.00
$333.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
CAM-4MP
Condition:
New
No Bots, Just Experts
Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.
Send Laura a Message
Senior Specialist · Typically replies within 1 business day
Description
ACTi CAM-4MP 4MP Day/Night Vandal Zoom Bullet Camera
Overview
The CAM-4MP is a 4MP outdoor zoom bullet built for hostile environments where durability and optical reach matter equally. Its 5x optical zoom lens (2.7–13.5 mm focal length) lets you capture detail at distance without sacrificing resolution — critical when you need license-plate or facial clarity from a single fixed position. The combination of IP68 (complete dust and water immersion) and IK10 (extreme vandalism resistance) ratings, plus NEMA 4X certification, makes this camera suitable for perimeter fencing, building corners, and unattended infrastructure where weather exposure and physical threats are expected. Deploy it when you need one camera to cover a wide horizontal span without pan-tilt complexity.
Compatibility
The CAM-4MP integrates with any standard network video recorder or video management system that accepts ONVIF Profile S, Profile G, or Profile T streams. Its single RJ-45 Ethernet port (10/100 Base-T) with 2m pigtail connector connects directly to PoE+ switches or injectors that deliver IEEE 802.3at power. H.265, H.264, and MJPEG compression formats ensure compatibility with legacy and modern VMS platforms, from open-source solutions to proprietary systems. Simultaneous quad-stream support allows a single camera to feed multiple recording profiles (high-quality archival, low-bandwidth live view, analytics-triggered capture) to the same recorder or multiple systems without duplicating bandwidth.
Installation Notes
Power the CAM-4MP via PoE+ (802.3at) — the camera draws sufficient current that standard PoE (802.3af) injectors are inadequate; confirm your switch or injector supports high PoE before deploying. Operating temperature range is −30°C to 60°C, so installation in arctic or tropical climates requires no additional enclosure. The metal casing supports pole, corner, and rack mounting; verify mechanical compatibility with your chosen bracket. Auto-focus lens aids field installation but requires a test image to verify focus is set correctly for your distance-to-subject after final positioning. The 2m pigtail connector reaches most wall-mounted PoE switches; longer runs require a patch cable.
What's in the Box
- 1x ACTi CAM-4MP bullet camera body
- 1x RJ-45 pigtail connector (2m cable)
Specifications
Resolution:
4MP (2688 × 1520)
Ip Rating:
IP68
Ik Rating:
IK10
Poe Power:
PoE+ (802.3at)
WDR:
Extreme WDR (150 dB)
Ir Lowlight:
IR; 850nm
Compression:
H.265; H.264; MJPEG
ONVIF:
Yes
Audio:
Audio input (2-way, Line-in, Mic-in, Line-out)
Analytics:
Tampering Detection; Face Detection; Object Line Crossing Detection; VMD; People Counting
Lens Focal Length:
2.7-13.5 mm (5x optical zoom)
Mount Type:
Pole; Corner; Rack
Product Type:
Zoom Bullet
Print Resolution:
4MP
Application:
Environment Outdoor
Lens:
5x optical zoom (2.7–13.5 mm); F1.6; auto-focus
Ethernet Rate:
Port 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
Gps:
Position Manual setting
Power Supply:
DC 12V, High PoE (IEEE802.3at)
Operating Temp:
-30°C ~ 60°C (-22°F ~ 140°F)
Approvals:
CE Class B, FCC Class B, EAC, IP68, NEMA 4X, IK10 (metal casing), CNS 16120 (TAICS, TCA) Level 1
Material:
Metal
Mounting:
Accessories - Camera Mount
Connector Type:
, 2m cable
weight:
2.8
Brand:
ACTi
MPN:
CAM-4MP
Type:
Day/Night Vandal Zoom Bullet Camera
Connectivity:
Ethernet
Power:
PoE+
ip_rating:
IP68
ik_rating:
IK10
poe_power:
PoE+ (802.3at)
ir_lowlight:
IR; 850nm
lens_focal_length:
2.7-13.5 mm (5x optical zoom)
mount_type:
Pole; Corner; Rack
Product_Type:
Zoom Bullet
Print_Resolution:
4MP
Ethernet_Rate:
Port 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
Power_Supply:
DC 12V, High PoE (IEEE802.3at)
Weight:
1272g (2.804lb)
Operating_Temp:
−30°C to 60°C (−22°F to 140°F)
Connector_Type:
, 2m cable
Length:
2m
Compatible With:
demanding
Connector:
RJ-45
PoE:
PoE
IR_Lowlight:
850nm IR LED; 0.01 lux (color, F1.2); 0.002 lux (B/W, F1.6); 0 lux (IR on)
Form_Factor:
Bullet
Max_FPS:
30 fps @ 2688 × 1520
IR_Range:
85m (1.0 lux)
Sensor_Size:
1/2.7 inch
Min_Illumination:
0.01 lux (color, F1.2, AGC on); 0.002 lux (B/W, F1.6, AGC on); 0 lux (IR on)
Certifications:
CE Class B; FCC Class B; EAC; IP68; NEMA 4X; IK10; CNS 16120 Level 1
VMS_Compatibility:
ONVIF Profile S; Profile G; Profile T
