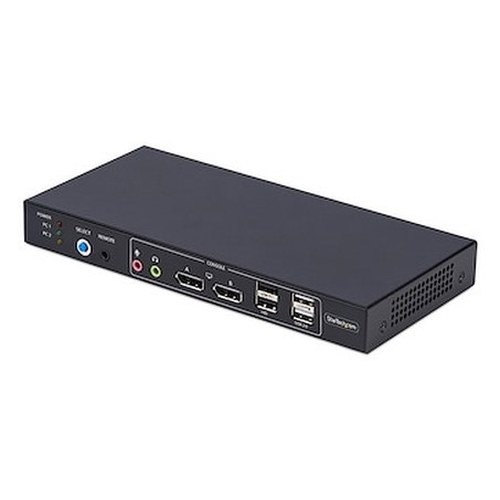

StarTech P2ADD121D-KVM-SWITCH 2-Port Dual-Monitor DisplayPort KVM Switch

Overview

The StarTech P2ADD121D-KVM-SWITCH is a 2-port, dual-monitor DisplayPort KVM switch built for workstations that drive two displays and need clean, fast switching between two host computers — without rebooting, unplugging cables, or sacrificing video fidelity. It supports DisplayPort 1.2 with resolutions up to 3840x2160 at 60Hz, meaning both monitors can run full 4K simultaneously. For engineering stations, control rooms, or security operations centers running dual-display setups across two machines, this is a direct solution to desk clutter and KVM-induced resolution compromises.

Port selection is handled via front-panel push button or hotkey commands — no mouse clicks required in the middle of a task. USB 2.0 data sharing tops out at 480Mbps, sufficient for keyboard, mouse, and peripheral pass-through without perceptible lag.

Key Features

• Dual 4K 60Hz DisplayPort 1.2: Both console outputs support 3840x2160 at 60Hz simultaneously. This matters in dual-monitor productivity or surveillance review setups where downscaling to 1080p defeats the purpose of the hardware investment. No frame-rate compromise, no resolution drop on switch.
• 2-Host / 2-Monitor Architecture: Four DisplayPort host connectors (two per machine) and two DisplayPort console outputs means both computers share both screens cleanly. No splitters, no adapters needed for a standard dual-display workstation pair.
• USB 2.0 at 480Mbps: Four USB Type-A console ports and two USB Type-B host connectors handle keyboard, mouse, and USB peripherals at full USB 2.0 speed. Peripheral response is immediate — no detectable switching latency for input devices.
• Dual 3.5mm Stereo Audio: Two 3.5mm female stereo jacks at the console side let you keep a single headset or speaker set connected and switch audio along with video and USB — no manual audio cable swapping between hosts.
• Push-Button and Hotkey Switching: Physical button on the unit plus hotkey sequences give you two switching methods. In a control room environment where operators may not want to leave the keyboard, hotkey switching keeps workflow uninterrupted.
• 8kV Air / 6kV Contact ESD Protection: Built-in ESD protection at those levels guards connected equipment against electrostatic discharge events — relevant in server rooms or industrial-adjacent environments with dry air or high foot traffic on synthetic flooring.
• 87,298-Hour MTBF: That's just under 10 years of continuous theoretical operation. For a KVM that sits powered on 24/7 in a control room or NOC, MTBF at this level indicates component-level reliability engineering rather than consumer-grade construction.
• Universal AC Input (100–240V, 1A): The included power supply accepts any mains voltage globally. Useful for multi-site deployments or international environments — no step-down transformer needed. Output is regulated 12V DC at 3A (36W total), dedicated to powering the switch reliably rather than drawing from USB bus power.
• Compact Footprint (8.7 x 4.1 x 1.0 in, 22.6 oz): At just 1 inch tall and under 1.5 lbs, the P2ADD121D-KVM-SWITCH sits flat on a desk or can be tucked under monitors without occupying rack space. Appropriate for desk-side deployment, not rack-mount environments.
• Operating Temperature 0°C to 40°C: Rated for standard office and control room environments. Not rated for industrial or outdoor enclosures — plan accordingly if the installation site runs warm.

Integration and Compatibility

The P2ADD121D-KVM-SWITCH (often searched as P2ADD121D KVM SWITCH) conforms to DisplayPort 1.2 and USB 2.0 industry standards. Compatibility is broadly hardware-agnostic — any host machine with a DisplayPort 1.2 output and a USB Type-B port will integrate without driver installation in most cases. The four USB Type-A console ports support standard HID devices (keyboard, mouse) as well as USB peripherals within the 480Mbps USB 2.0 ceiling. For environments running KVM accessories such as DisplayPort cables or USB extenders, verify cable specs support 4K 60Hz signal integrity — passive cables over 6 feet can introduce signal degradation at this resolution and refresh rate. The switch is not designed for KVM-over-IP or networked remote access; it is a local, hardware-layer switch only. If remote KVM capability is required, a different product class is appropriate. For security operations centers integrating this into a video surveillance workstation environment, confirm that your VMS client software supports dual-monitor display layouts — the KVM itself is display-agnostic and will pass whatever signal the host GPU outputs.

Frequently Asked Questions

Q: What is the maximum resolution supported by the P2ADD121D-KVM-SWITCH?

A: The switch supports up to 3840x2160 (4K UHD) at 60Hz on both DisplayPort console outputs simultaneously, per DisplayPort 1.2 specification.

Q: Does the P2ADD121D-KVM-SWITCH support audio switching?

A: Yes. The unit includes two 3.5mm stereo female jacks on the console side, allowing a single headset or speaker set to switch between hosts along with video and USB.

Q: How do I switch between computers on the P2ADD121D-KVM-SWITCH?

A: Switching is available via a front-panel push button or via hotkey sequences on the connected keyboard — no software installation required.

Q: What is the warranty on the P2ADD121D-KVM-SWITCH?

A: StarTech provides a 2-year manufacturer warranty on the P2ADD121D-KVM-SWITCH.

Q: Does this KVM switch require an external power supply?

A: Yes. The unit uses an external power supply with a 100–240V AC input and 12V DC / 3A output (36W). It does not operate on USB bus power alone.

Q: Can the P2ADD121D-KVM-SWITCH be rack-mounted?

A: No. At 8.7 x 4.1 x 1.0 inches and 22.6 oz, the unit is designed for desktop deployment. It does not include rack-mount ears or a 1U rack form factor.

Marty Allison

The spec I keep coming back to on the P2ADD121D-KVM-SWITCH is the 87,298-hour MTBF — that figure tells you this is engineered for continuous duty, not intermittent desktop use. In a SOC or control room where the KVM runs 24/7 and a failure means an operator is locked out of one machine, reliability math like that matters when you're speccing hardware for a 3–5 year deployment cycle.

Technical Highlights:

• Dual 4K 60Hz Output: Both console DisplayPort outputs carry 3840x2160 at 60Hz simultaneously — no resolution compromise on either screen when switching, which is the failure mode that plagues cheaper KVMs in high-res dual-monitor setups.
• ESD Protection (8kV Air / 6kV Contact): Built-in ESD clamping at those levels protects downstream equipment — GPU outputs and USB controllers — from discharge events. In a busy ops environment with carpet flooring, this is a meaningful design decision, not a checkbox spec.
• 36W Regulated Power Supply (12V DC / 3A): Dedicated external power rather than USB bus power means the switch maintains stable operation regardless of host USB load. No brownouts on the KVM during heavy peripheral activity.

Deployment Considerations:

• Cable quality matters at 4K 60Hz — passive DisplayPort cables beyond roughly 6 feet can fail to maintain signal integrity at this bandwidth. Specify active or certified high-speed cables when running longer distances to the monitors or hosts.
• Operating temperature ceiling is 40°C — standard for an office or control room, but if this unit is going into a poorly ventilated equipment closet or a warm industrial space, verify ambient temp before installing.

The P2ADD121D-KVM-SWITCH is the right call for a dual-workstation security operations desk where two operators share screen real estate across two 4K monitors — or where a single operator needs clean, fast switching between a primary and secondary machine without touching a cable.
