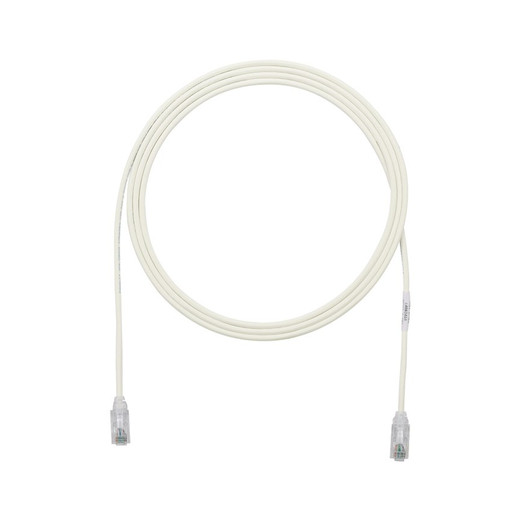

Panduit UTP28SP1GY 28AWG Cat 6 UTP Patch Cord

Panduit UTP28SP1GY Cat 6 UTP Patch Cord

The Panduit UTP28SP1GY is a 1-foot Cat 6 UTP patch cord engineered for high-density structured cabling environments where space, airflow, and cable management are critical. Built with 28 AWG stranded copper conductors instead of the standard 24 AWG, this TX6-28™ cord delivers full Category 6 performance in a 0.150-inch (3.8mm) diameter profile—30% thinner than conventional patch cords. That reduced diameter translates directly to improved rack airflow, easier cable bundling, and simplified moves-adds-changes in congested switch cabinets, patch panels, and datacenter hot aisles. The gray jacket provides neutral aesthetics for mixed infrastructure, while the CM/LSZH dual flammability rating satisfies both North American plenum-alternative and international low-smoke requirements in a single SKU.

Key Features

• 28 AWG stranded copper construction—0.150" diameter for maximum density and airflow
• Patented tangle-free latch prevents snags during installation and port access
• RapidID pre-installed barcode enables automated port mapping and asset tracking
• Centered de-embedded plug with integral pair manager for consistent termination performance
• 100% factory tested for wire map, NEXT, and return loss to TIA-568.2-D Cat 6 standards
• Supports 802.3af/at PoE (48-cable bundles) and 802.3bt PoE++ Type 3/4 (24-cable bundles)
• CM/LSZH rated—single cord meets both NEC and IEC fire-safety requirements
• cULus Listed under UL 1863 and CAN/CSA-C22.2 (File E129886)

In enterprise access-layer deployments, 1-foot patch cords are the workhorses connecting switches to patch panels, interconnecting stacked switches, or bridging equipment within the same rack. The UTP28SP1GY's 28 AWG design shines in these scenarios: thinner cords mean you can route more cables through the same cable management fingers, horizontal trays stay cleaner, and vertical managers don't bulge. The reduced bundle diameter also improves cooling efficiency—critical when you're running 48-port PoE switches at full load. Panduit's stranded-conductor construction provides the flexibility installers need for tight bends around cabinet sides and rear-mounted PDUs without risking conductor damage or performance degradation.

The tangle-free latch is a Panduit-exclusive feature that anyone who's fought a rat's nest of patch cords will appreciate. Unlike standard RJ45 boots that catch on adjacent cables during insertion or removal, this latch design features a low-profile, snag-resistant geometry that slides cleanly past neighboring cords even in fully populated panels. It still provides positive retention—you'll hear and feel the click—but releases with a simple thumb press and clean pull. Combine that with RapidID barcoding, and you have a complete infrastructure documentation solution: scan the cord's pre-printed barcode during installation, map it to the switch port in Panduit's RapidID software, and maintain an auditable, real-time topology database. When you need to troubleshoot a port or decommission a circuit six months later, you'll have the full history at your fingertips instead of tracing cables by hand.

The UTP28SP1GY exceeds ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801 Class E electrical requirements across the full 1–250 MHz frequency range, verified through 100% factory testing for wire map, near-end crosstalk (NEXT), and return loss. That performance headroom ensures reliable 1000BASE-T Gigabit Ethernet links and supports emerging multi-gigabit applications like 2.5GBASE-T and 5GBASE-T when paired with compatible infrastructure. For Power over Ethernet deployments, Panduit specifies bundle de-rating: 802.3af (15.4W) and 802.3at (30W) installations support up to 48 cables per bundle, while 802.3bt Type 3 (60W) and Type 4 (100W) installations require 24-cable bundle limits to manage conductor heating. The 28 AWG gauge carries slightly higher DC resistance than 24 AWG, so consult Panduit's PoE planning tools if you're pushing maximum wattage over longer permanent-link distances; for 1-foot patch-cord applications, resistance contribution is negligible.

The CM/LSZH jacket combines two flammability standards in one cord: CM (Communications) rating under NEC Article 800 for general-purpose horizontal and riser applications in North America, and LSZH (Low Smoke Zero Halogen) construction meeting IEC 60332 and IEC 61034 for installations where toxic-gas emission and smoke opacity are regulated—common in European datacenters, transportation hubs, and government facilities. This dual compliance simplifies inventory for integrators supporting multinational clients or mixed-code projects. The gray color-coding is deliberately neutral, blending into existing infrastructure without the visual chaos of multi-color patching schemes, while still allowing optional color organization if you stock complementary Panduit hues for VLANs or functional zones. For AV integrators managing IP-based video matrix switching or datacenter ops teams running leaf-spine fabrics, the UTP28SP1GY delivers the installation ease, documentation integration, and code compliance that separates professional infrastructure from makeshift cable spaghetti.
