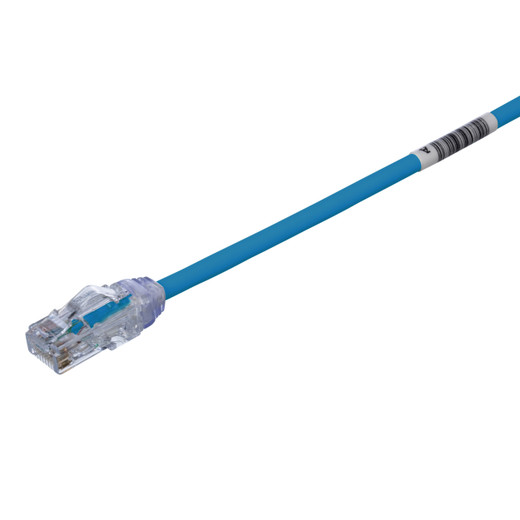

Panduit UTP28X8BU Cat 6A 28 AWG UTP Patch Cord, 8 ft, Blue

The Panduit TX6A-28™ UTP28X8BU delivers 10GBASE-T performance in a slim 28 AWG form factor engineered for high-density data center and server-rack deployments. At just 0.185 inches (4.7 mm) in diameter, this 8-foot Cat 6A UTP patch cord reduces bundle cross-section by approximately 40% compared to standard 24 AWG cables, improving airflow around switches and servers while simplifying moves, adds, and changes in congested pathways. Factory-terminated with Panduit's centered de-embedded modular plugs and integral pair managers, each cord ships 100% performance-tested for wire map, NEXT, and return loss across the full 1–500 MHz spectrum, ensuring Day One interoperability in 10G Ethernet, server virtualization, and parallel-processing environments.

Key Features

• 28 AWG solid copper conductors in U/UTP construction — 0.185" diameter reduces pathway fill and improves rack airflow by ~40% vs. 24 AWG
• Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA — verified 10GBASE-T performance from 1 to 500 MHz
• Patented tangle-free latch prevents snags during installation and provides fast, one-hand release for streamlined MACs
• RapidID pre-installed barcodes enable scan-to-document port mapping with Panduit RapidID software, eliminating manual cable tracing
• Supports IEEE 802.3bt Type 3 and Type 4 PoE++ (up to 90W per port) for high-power devices — cameras, access points, and building-automation controllers
• CM/LSZH dual-rated jacket meets NEC and international low-smoke requirements for risers and enclosed spaces
• Factory-tested and serialized — each cord includes performance report verifying compliance before shipment

Panduit's TX6A-28 platform addresses the cable-congestion problem common in blade-server chassis, top-of-rack switches, and hyperconverged infrastructure deployments where dozens of connections terminate within a single RU. The 28 AWG conductor gauge reduces per-cable volume without sacrificing Category 6A headroom: the centered de-embedded plug geometry maintains pair balance through the termination transition, and the integral strain relief preserves twist rate to within 0.5 inches of the contact interface. This construction sustains alien crosstalk margins (PSANEXT, PSAACRF) that exceed TIA-568.2-D limits by 3–6 dB at 500 MHz, providing headroom against in-bundle interference when forty or more cords share a vertical cable manager. The solid-conductor design is optimized for fixed horizontal and equipment-cord applications; it offers lower DC resistance than stranded equivalents, improving PoE efficiency and reducing voltage drop over the 8-foot span — critical when delivering 90W Type 4 power to PTZ cameras or 802.11ax access points mounted at the edge of the coverage zone.

In data-center I/O consolidation and virtualization projects, the UTP28X8BU streamlines both initial deployment and ongoing moves. The tangle-free latch uses a low-profile boot design that resists snagging on adjacent cables during insertion and removal; the latch release requires 40% less pull force than traditional snagless boots, allowing single-handed disconnect even in fully populated 48-port panels. RapidID barcodes are laser-etched onto each plug boot and registered to the cable's serialized performance report; installers scan the code at both ends during termination, and Panduit's RapidID software auto-populates the port map in the DCIM or CMDB system, eliminating transcription errors and cutting documentation time by 60–75% on 400+ drop projects. The blue jacket follows TIA-606-C identification conventions for horizontal cabling and provides high contrast against black patch panels and gray cable managers, reducing mis-patch errors during after-hours maintenance windows. Each cord ships individually bagged with a QR-linked test report; carton quantity is ten, matching the column count on most structured-cabling distribution frames.

The UTP28X8BU is third-party verified to ANSI/TIA-1096-A (formerly FCC Part 68), IEC 60603-7, and UL 1863 / CSA C22.2 (UL File E129886), meeting North American and international procurement standards for enterprise and government installations. The CM/LSZH jacket passes NFPA 262 (UL 1685) flame-propagation limits and IEC 60754 halogen-emission thresholds, satisfying both NEC Article 800 riser requirements and the low-smoke mandates common in EMEA data halls and transportation facilities. Wiring follows T568A/B pin assignments, ensuring compatibility with legacy 1000BASE-T infrastructure and forward migration to 25GBASE-T on the same physical layer. For integrators deploying 10G leaf-spine fabrics, hyperconverged clusters, or PoE-dense access networks, this cord delivers the performance and density required to meet SLA uptime commitments while preserving the rack-space and cooling capacity needed for future expansion.
