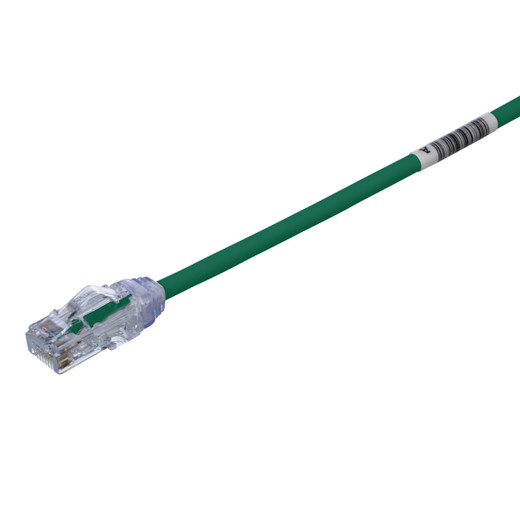

Panduit UTP28X5GR Cat 6A 28 AWG UTP Copper Patch Cord, 5 ft, Green

The Panduit TX6A-28 UTP28X5GR delivers 10GBASE-T performance in a slim 0.185-inch (4.7mm) diameter package that simplifies high-density data center and network closet deployments. Built with 28 AWG solid copper conductors and Panduit's centered de-embedded plug design, this 5-foot green patch cord meets the cabling demands of server virtualization, I/O consolidation, and parallel processing environments where every cubic inch of pathway matters. The slimmer profile enables higher port fill in cable managers and reduces airflow blockage compared to standard 24 AWG cords.

Key Features

• 28 AWG solid conductor construction — 0.185\" (4.7mm) diameter reduces bundle cross-section by up to 40% vs. 24 AWG
• Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA specifications for all frequencies 1–500 MHz
• Patented tangle-free latch prevents snags during moves, adds, and changes in congested racks
• RapidID pre-installed barcodes enable one-scan port mapping with Panduit RapidID software
• 100% factory tested for wire map, NEXT, and return loss — serialized test report available
• Supports IEEE 802.3af/at (PoE/PoE+) and 802.3bt Type 3/Type 4 (PoE++) up to 90W per port
• CM/LSZH dual-rated jacket meets NEC and low-smoke requirements for diverse deployment environments
• Compatible with T568A and T568B wiring schemes — no polarity concerns in mixed infrastructures

Category 6A performance at 10 gigabit speeds requires tight manufacturing tolerances and validated NEXT margins. Panduit's centered de-embedded plug positions the twisted pairs concentrically within the connector body, minimizing skew and crosstalk at the plug-to-jack interface. The integral pair manager maintains pair geometry through the transition zone where most Category 6A patch cords fail high-frequency tests. Every cord ships with serialized test data confirming compliance to 500 MHz — critical when troubleshooting intermittent 10GBASE-T link failures in production networks. The solid conductor design (versus stranded) provides lower DC resistance and improved return loss, making this cord ideal for longer patch runs up to 15 feet where insertion loss budgets are tight.

The slim 28 AWG construction delivers measurable installation advantages in high-density environments. A bundle of twenty-four 28 AWG cords occupies the same cross-sectional area as fifteen standard 24 AWG cords — freeing pathway capacity for future adds without ripping out cable managers. The reduced diameter also improves airflow around passive cooling designs in top-of-rack switches and converged infrastructure chassis. Panduit's tangle-free latch uses a low-profile boot geometry that releases cleanly even when pressed against adjacent connectors, eliminating the frustration of stuck latches in 48-port switch deployments. RapidID barcodes (printed directly on the boot) integrate with Panduit's asset management platform for scan-once documentation during MAC work — eliminating transcription errors and reducing average port tracing time from 8 minutes to under 30 seconds per connection.

Compliant with ANSI/TIA-1096-A (formerly FCC Part 68), IEC 60603-7, and UL 1863 (File E129886), the UTP28X5GR meets North American and international standards for commercial premise wiring. The CM/LSZH jacket rating allows the same SKU to be deployed in plenum-adjacent spaces (where CM is acceptable) and in rail/transit/marine environments requiring low-smoke zero-halogen materials. PoE++ (802.3bt Type 4) compatibility at 90W per port makes this cord suitable for high-power device connections including PTZ cameras, Wi-Fi 6E access points, and LED lighting controllers — eliminating the need to separate data and power patch cords in converged infrastructure designs. Standard 10-pack carton quantity reduces packaging waste and simplifies inventory for integrators stocking multiple colors for circuit identification in multi-tenant or multi-VLAN deployments.
