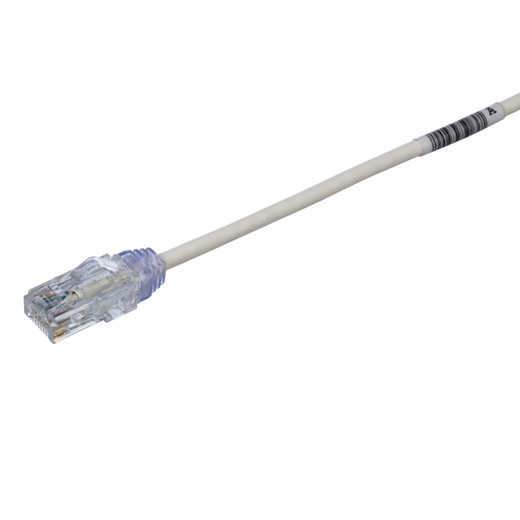

Panduit UTP28SP6 Cat 6 28AWG 6ft Patch Cord

Panduit UTP28SP6 Cat 6 28 AWG UTP Patch Cord

The Panduit UTP28SP6 is a 6-foot Cat 6 patch cord built on the TX6-28™ platform, engineered for high-density telecommunications and data center patching. Its 28 AWG stranded construction delivers a compact 3.8 mm (0.150") diameter—30% slimmer than standard 24 AWG cords—allowing for tighter bend radii, improved airflow in crowded racks, and simplified cable management in structured cabling systems. The patented tangle-free latch prevents snags during moves, adds, and changes, while integrated RapidID barcodes streamline port documentation and asset tracking through Panduit's RapidID software ecosystem.

Key Features

• 28 AWG stranded conductors in a 3.8 mm diameter U/UTP cable
• Patented tangle-free latch for snag-free installation and removal
• Pre-installed RapidID barcode for automated port mapping and documentation
• Exceeds ANSI/TIA-568.2-D Cat 6 and ISO 11801 Class E specifications (1–250 MHz)
• Supports 10GBASE-T Ethernet over limited distances per IEEE 802.3an
• Full PoE++ compatibility: IEEE 802.3af/at/bt Type 3 and Type 4 (up to 90W)
• CM/LSZH dual-rated jacket for plenum or low-smoke environments
• 100% factory tested for wire map, NEXT, and return loss

The UTP28SP6 exceeds Category 6 channel performance requirements across the full 1–250 MHz spectrum, supporting 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), and 10GBASE-T applications within the distance limits specified by IEEE 802.3an. High-performance modular plugs incorporate a centered de-embedded design and integral pair manager to maintain consistent geometry and minimize insertion loss. Each cord undergoes automated testing for wire map continuity, near-end crosstalk (NEXT), and return loss before leaving the factory, ensuring zero-defect performance in mission-critical links. The CM/LSZH jacket meets both CMG general-purpose and low-smoke zero-halogen fire ratings, making the cord suitable for horizontal pathways, telecommunications rooms, and European installations governed by EN 50575 CPR compliance.

In high-density patching scenarios—network closets with 48-port switches, fiber aggregation points, or equipment racks approaching 80% fill—the 3.8 mm diameter of 28 AWG cordage reduces bundle cross-section by up to 40% compared to conventional 24 AWG patch cords. This translates to easier pathway fill in horizontal cable managers, lower strain on patch-panel ports, and improved airflow through densely populated vertical cable managers. The tangle-free latch design eliminates the most common cable-management frustration: latch snags during bundle routing or re-termination. Technicians can pull cords through crowded bundles without the latch hooking adjacent cables, reducing MACs (moves, adds, changes) labor by as much as 20% in field trials. RapidID barcode integration supports automated port discovery and cable tracing when used with Panduit's RapidID mobile app or handheld scanners, eliminating manual documentation errors and accelerating commissioning in enterprise campus or colocation deployments.

The UTP28SP6 is UL Listed (File E129886) under UL 1863 and meets ANSI/TIA-1096-A (formerly FCC Part 68) modular plug requirements and IEC 60603-7 international connector standards. It is RoHS compliant and wired for compatibility with both T568A and T568B termination schemes, ensuring seamless integration into mixed-vendor infrastructures. Ideal for high-density horizontal cross-connects, modular furniture zone patching, IP camera and VoIP phone runs requiring PoE++, or any application where cable congestion, documentation accuracy, and long-term channel performance are critical, the UTP28SP6 delivers Panduit's precision-engineered physical layer reliability in a slim, installer-friendly form factor.
