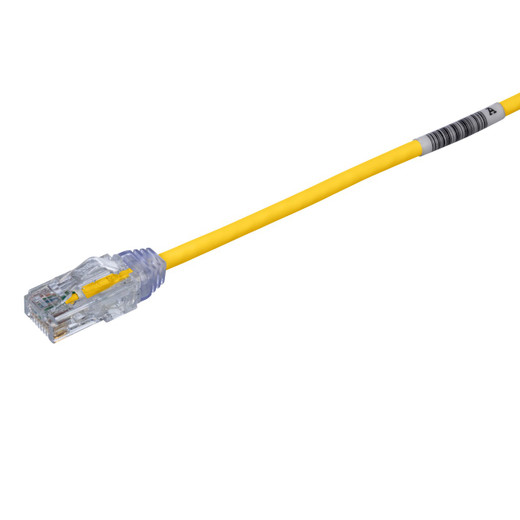

Panduit UTP28SP8INYL 8in Cat 6 28AWG Patch Cord

Panduit UTP28SP8INYL TX6-28 Cat 6 Patch Cord

The Panduit TX6-28 UTP28SP8INYL is an 8-inch Cat 6 patch cord engineered for high-density datacenter and telecom closet deployments where rack space and airflow are critical constraints. Built with 28 AWG stranded copper conductors, this patch cord delivers a 0.150-inch diameter—roughly 40% slimmer than standard 24 AWG cables—enabling tighter bundle radii, reduced pathway congestion, and improved thermal management in packed equipment racks. The yellow jacket provides instant visual identification for network segmentation or VLAN assignment, and the integrated tangle-free latch design prevents snags during moves, adds, and changes, cutting troubleshooting time when you're working in cramped spaces behind blade servers or aggregation switches.

Key Features

• 28 AWG stranded copper construction for flexibility and reduced bundle diameter
• 0.150-inch (3.8 mm) cable diameter—40% slimmer than standard patch cords
• Patented tangle-free latch prevents snags during MAC work
• Pre-installed RapidID barcodes for automated port mapping and asset tracking
• 100% factory tested for wire map, NEXT, and return loss
• Centered de-embedded plug design with integral pair manager for consistent performance
• Supports IEEE 802.3bt PoE++ Type 3 and Type 4 (up to 90W delivered power)

Electrically, the UTP28SP8INYL exceeds all ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801 Class E requirements across the full 1–250 MHz spectrum. Each cord ships with end-to-end verification of wire map, near-end crosstalk (NEXT), and return loss, ensuring out-of-the-box reliability on 10BASE-T, 100BASE-T, 1000BASE-T, and 10GBASE-T links—though note that 10GBASE-T over 28 AWG cable is limited to the distances specified in IEEE 802.3an (typically under 15 meters for reliable 10 Gbps operation). The U/UTP (unshielded twisted pair) construction keeps cost and weight down while the stranded conductors provide the flexibility needed for tight bend radii in crowded patch fields. The modular plugs feature Panduit's centered de-embedded contact geometry and an integral pair manager that maintains twist right up to the termination point, minimizing alien crosstalk and return loss.

In practice, this cable shines in top-of-rack switch interconnects, patch panel jumpers, and short server-to-switch runs where you need full Cat 6 bandwidth in a fraction of the physical space. The slim profile means you can route more cables through the same vertical manager or horizontal ring, and the reduced bundle diameter improves airflow around hot-aisle equipment. The tangle-free latch is a practical time-saver: the low-profile release tab sits flush with the plug body and won't catch on adjacent cables when you're pulling a cord out of a 48-port switch in a dim MDF. Panduit's RapidID program adds a scannable barcode to each cord, so you can use their RapidID software to map ports, generate as-built documentation, and track assets without manually typing serial numbers—critical for change-management workflows in large installations.

The UTP28SP8INYL is rated CM/LSZH for both general-purpose and low-smoke/zero-halogen environments, and it meets UL 1863, IEC 60603-7, and FCC Part 68 (now ANSI/TIA-1096-A) requirements. It's wired to be compatible with both T568A and T568B schemes, so it will work in any structured cabling system regardless of your site standard. PoE++ Type 4 compliance (IEEE 802.3bt) means the cord can safely carry up to 90 watts of delivered power—enough to feed high-draw devices like PTZ cameras, 802.11ax access points, or LED lighting controllers—without thermal or insertion-loss concerns. For integrators building out blade enclosures, converged-infrastructure racks, or IP camera aggregation switches, the TX6-28 platform delivers datacenter-grade density and performance in a form factor that actually fits the job.
