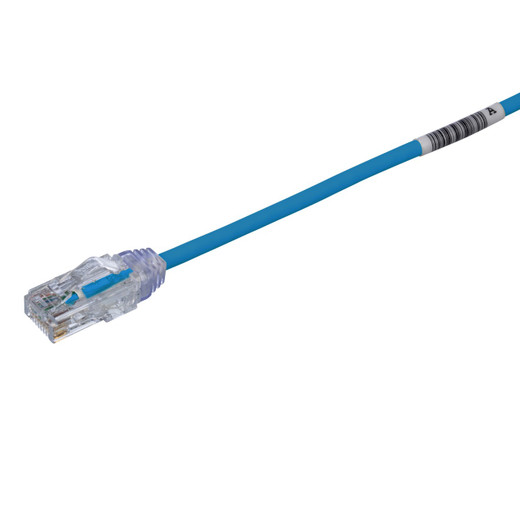

Panduit UTP28SP6BU Cat 6 28 AWG UTP Patch Cord, 6 ft, Blue

The Panduit UTP28SP6BU is a 6-foot Cat 6 patch cord engineered for high-density datacenter and telecommunications installations where cable congestion threatens airflow and serviceability. Built with 28 AWG stranded copper conductors instead of the conventional 24 AWG standard, this TX6-28™ cord measures just 0.150 inches in diameter—35% thinner than traditional Cat 6 patch cables—allowing installers to route significantly more connections through the same cable management pathways while maintaining full Cat 6 performance up to 250 MHz. The slim profile directly addresses rack airflow challenges in server environments running high-wattage PoE++ devices, and simplifies moves, adds, and changes in crowded patch panels serving surveillance systems, wireless infrastructure, and VoIP deployments.

Key Features

• 28 AWG stranded copper construction delivers 0.150" diameter—35% thinner than standard 24 AWG Cat 6 cables for high-density patching
• Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards across 1-250 MHz frequency range with 100% factory testing for wire map, NEXT, and return loss
• Patented tangle-free latch prevents snags during cable pulls and enables fast, tool-free release in crowded patch fields
• RapidID pre-installed barcodes integrate with Panduit's RapidID software for automated port mapping and documentation during infrastructure moves
• Supports IEEE 802.3af/at PoE/PoE+ and 802.3bt Type 3/Type 4 PoE++ applications up to 90W for high-power cameras, access points, and LED lighting
• CM/LSZH dual-rated jacket meets plenum-equivalent fire safety requirements for international deployments and reduces toxic smoke emission
• Centered de-embedded plug design with integral pair manager ensures consistent field performance across all four pairs

Panduit engineers the UTP28SP6BU with a centered de-embedded plug architecture that positions the contact array precisely within the RJ45 housing, eliminating the common failure mode where off-center conductors cause intermittent NEXT failures under mechanical stress. The integral pair manager inside each plug maintains the twist ratio of all four pairs up to the contact point, preserving the cable's 250 MHz bandwidth specification even when the cord experiences the repeated flexing typical of MACs in active network environments. This construction allows the 28 AWG cord to meet the same TIA-568.2-D performance requirements as thicker 24 AWG cables, including the stringent return loss limits that enable 10GBASE-T operation over short runs—critical for connecting top-of-rack switches to blade servers or linking PoE++ injectors to high-resolution surveillance cameras in the same cabinet. The stranded conductor design provides the flexibility needed for tight-radius bends around vertical cable managers and behind shallow wall-mount enclosures, while the snagless boot features Panduit's patented tangle-free latch that releases cleanly even when surrounded by dozens of adjacent cables.

In surveillance and access control installations, the UTP28SP6BU's 28 AWG profile becomes essential when integrators face the common challenge of running 48+ camera home-runs through 2-inch conduit sleeves or managing dual-redundant uplinks in compact IDF closets. The slim cord diameter allows up to 60% more cables per bundle compared to standard Cat 6 patch cords, which translates directly to better airflow in locked network cabinets running fanless PoE switches that rely on convection cooling. The RapidID barcode system addresses the documentation gap that plagues enterprise surveillance projects—scanning each cord during installation auto-populates the port map in Panduit's software, eliminating the manual spreadsheet entry that leads to mislabeled ports six months after go-live. The cord's support for 802.3bt Type 4 PoE++ (up to 90W) future-proofs installations for the next generation of PTZ cameras with integrated IR illuminators, heated enclosures, and wiper assemblies that will exceed today's 30W PoE+ budget. The dual CM/LSZH rating simplifies international projects where local fire codes require Low Smoke Zero Halogen materials but installers want to avoid maintaining separate patch cord inventories for different building types.

This patch cord ships with UL 1863 and CSA C22.2 certification under file E129886, meets IEC 60603-7 international interconnection standards, and complies with ANSI/TIA-1096-A (formerly FCC Part 68) for telecom use. The wiring scheme is compatible with both T568A and T568B pinouts, allowing the cord to integrate into existing infrastructures without requiring panel rewiring. Panduit backs the UTP28SP6BU with RoHS compliance and packages the cords in 10-piece cartons optimized for contractor stock rotation. For integrators managing high-density PoE deployments where every cubic inch of rack space and every CFM of airflow matters, the TX6-28 series delivers the cable performance required by IP cameras and access points without the diameter penalty of legacy Cat 6 designs.
