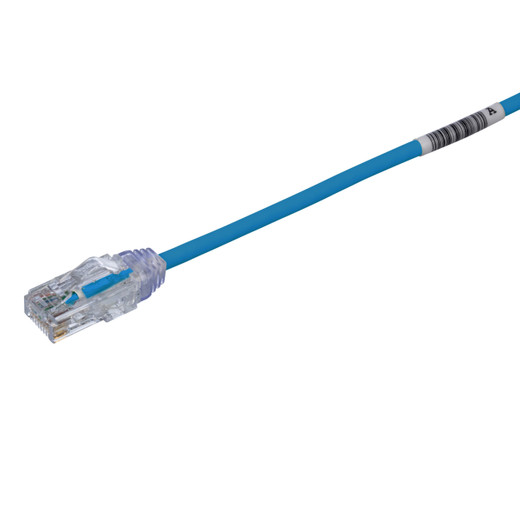

Panduit UTP28SP10BU Cat 6 28 AWG UTP Copper Patch Cord, 10 ft, Blue

The Panduit UTP28SP10BU is a 10-foot Cat 6 UTP patch cord engineered for high-density network environments where cable management, airflow, and rapid deployment matter. Built on 28 AWG stranded copper conductors in a 0.150" (3.8mm) diameter jacket, this blue cord delivers Gigabit Ethernet performance with half the bulk of standard 24 AWG patch cables. It's factory-terminated with Panduit's high-performance modular plugs, each cord 100% performance-tested for wire map, NEXT, and return loss before it ships. For integrators managing IP camera networks, access control systems, or VoIP endpoints across crowded racks and cable trays, the TX6-28™ series removes the tangle, reduces pathway congestion, and supports full-power PoE without derate penalties in properly sized bundles.

Key Features

• 28 AWG stranded copper construction in 0.150" (3.8mm) diameter — 50% slimmer than 24 AWG cords for simplified routing and improved airflow in high-density racks
• Patented tangle-free latch design prevents snags during installation and ensures fast, one-handed release for moves, adds, and changes
• RapidID pre-installed barcode labels enable automated port mapping and documentation using Panduit RapidID software — eliminates manual tracing and labeling errors
• 100% factory performance tested for wire map, NEXT, and return loss — every cord ships with verified Cat 6 compliance
• Centered de-embedded plug with integral pair manager maintains geometry through the termination for consistent insertion loss and return loss across the link
• CM/LSZH dual-rating jacket meets NEC Article 725 and low-smoke zero-halogen requirements for both general building installations and spaces requiring reduced toxicity in fire
• Supports IEEE 802.3af/802.3at PoE (48 cables in a bundle) and 802.3bt Type 3 & Type 4 PoE++ (24 cables in a bundle) without temperature-induced derate — critical for IP camera and wireless AP deployments

The 28 AWG conductor gauge solves a persistent problem in surveillance and access control installations: pathway fill. A single 42U rack supporting 200+ IP endpoints can easily consume 400+ patch cords between cameras, switches, PoE injectors, and uplinks. Traditional 24 AWG cords create a rigid, space-consuming bundle that blocks airflow, prevents cable tray covers from closing, and forces installers into oversized conduit. The UTP28SP10BU's 3.8mm diameter reduces bundle cross-section by roughly 50%, allowing you to double the cable count in the same pathway or reclaim rack space for additional equipment. The stranded conductor construction adds flexibility, making tight-radius bends around dense patch panels and cable managers easier without kinking or damaging the pairs. For IP camera networks where dozens of patch cords converge at PoE switches, this translates to cleaner cable dressing, faster troubleshooting access, and better thermal performance across the rack.

Panduit's tangle-free latch addresses the second-largest timewaster in MACs: stuck or broken release tabs. The molded boot extends a protective sleeve over the RJ45 latch, preventing it from catching on adjacent cords during insertion or removal. When you need to swap a camera or trace a link, a single pull releases the plug cleanly — no needle-nose pliers, no damaged ports, no second site visit. The RapidID barcode takes this further by embedding a unique identifier on each cord's boot. Using Panduit's RapidID scanner and software, you can map switch ports to endpoint devices in seconds, auto-generate as-built documentation, and track inventory across multiple sites. For integrators managing service contracts or large-scale deployments, this eliminates the "mystery cable" problem and turns documentation from a post-install burden into a live asset database.

The UTP28SP10BU exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E specs, supporting 1000BASE-T Gigabit Ethernet, 100BASE-T Fast Ethernet, and legacy applications like 155/622 Mb/s ATM and analog video. It's tested to ANSI/TIA-1096-A (the 28 AWG addendum to TIA-568) and meets IEC 60603-7 plug interface requirements. For PoE applications, Panduit specifies bundle size limits to prevent thermal runaway: up to 48 cords for 802.3af/at (25.5W max), and up to 24 cords for 802.3bt Type 3/4 (up to 100W). These limits are conservative and account for worst-case ambient temperatures, giving you headroom in real-world installs. The cord is cULus Listed under UL 1863 and CAN/CSA-C22.2, RoHS compliant, and ships in cartons of 10 with individual packaging for retail or project staging. When you need a patch cord that installs faster, manages cleaner, and documents automatically, the UTP28SP10BU is the Cat 6 cord built for the job.
