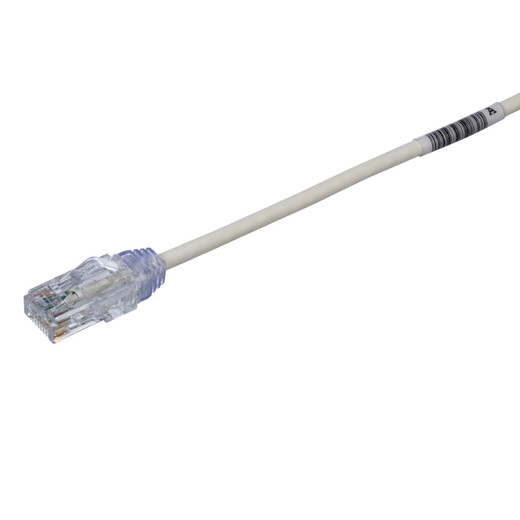

Panduit UTP28SP10 Cat 6 28 AWG UTP Patch Cord

The Panduit UTP28SP10 delivers Category 6 performance in a compact 28 AWG form factor designed for high-density patching environments. This 10-foot unshielded twisted pair patch cord features stranded copper conductors, a 0.150-inch (3.8mm) diameter—30% thinner than standard 24 AWG cords—and a patented tangle-free latch that eliminates snags during moves, adds, and changes. Factory-terminated with Panduit's high-performance modular plugs and pre-installed with RapidID barcodes, it's engineered for installers managing datacenter, IDF, and IP surveillance networks where port density, airflow, and rapid documentation matter.

Key Features

• 28 AWG stranded copper construction – 0.150-inch diameter enables tighter bend radius and improved airflow in high-density racks
• Patented tangle-free latch – centered release point prevents snags on adjacent cables during patching operations
• RapidID pre-installed barcodes – scan-to-document port mapping with Panduit RapidID software, eliminating manual logging
• 100% factory tested – every cord verified for wire map, NEXT, and return loss before shipment
• CM/LSZH dual-rated jacket – meets commercial plenum requirements and low-smoke zero-halogen specs for international installations
• PoE certified for 802.3af/at/bt – supports Type 3 and Type 4 Power over Ethernet in bundles up to 24 cables

Panduit's TX6-28 platform addresses the patch cord management crisis in modern IDF and MDF environments. Standard 24 AWG cords consume 40-50% more pathway volume; in a 48-port switch stack, that's the difference between 2RU and 3RU of cable mass blocking airflow. The UTP28SP10's 3.8mm jacket cuts that volume significantly while maintaining full Category 6 electrical performance to 250 MHz. The centered de-embedded plug design—where the plug body doesn't rely on the cable jacket for structural support—produces consistent insertion loss across temperature swings, critical for PoE links driving PTZ cameras or 802.11ax access points where voltage drop compounds over cord + horizontal + equipment-cord runs. Every cord ships with test results traceable to ANSI/TIA-568.2-D and ISO 11801 Class E compliance, so you're not gambling on field performance during acceptance testing.

The tangle-free latch isn't cosmetic. In a 500-port IDF where you're swapping 20 patches a week, standard boots snag on adjacent cords, yank plugs halfway out, and create intermittent links that don't show up until a user calls in. Panduit's integral pair manager keeps the four pairs aligned through the plug transition, and the latch's flush profile releases cleanly even in fully populated panels. RapidID barcoding turns documentation from a post-install nightmare into a scan-per-port routine: the software builds your port map as you patch, auto-exports to CAD or DCIM systems, and gives you a day-one as-built without transcription errors. For integrators inheriting undocumented networks or deploying IP camera systems where every port needs to tie back to a specific device serial number, that's 4-6 hours saved per rack.

The UTP28SP10 is cULus Listed per UL 1863 and CAN/CSA-C22.2 No. 214, RoHS compliant, and certified for 802.3bt Type 4 PoE (up to 100W) in 24-cable bundles—essential for high-power PTZ domes and multi-radio APs. Off-white jacket matches standard Panduit structured cabling for clean, monochromatic installations. Ships in cartons of 10 cords, each individually bagged with QR-coded labels for rapid deployment and inventory control.
